Sampling Importance Resampling

The last post was on weighted reservoir sampling, one of the main techniques used in the 2020 paper “Spatiotemporal reservoir resampling for real-time ray tracing with dynamic direct lighting” (https://research.nvidia.com/sites/default/files/pubs/2020-07_Spatiotemporal-reservoir-resampling/ReSTIR.pdf). This post is on the other main technique used, which is sampling importance resampling or SIR.

SIR allows you to have a list of items from probability distribution A, and draw items from it from probability distribution B.

The C++ code that goes with this post is at https://github.com/Atrix256/ResampledImportanceSampling

SIR Algorithm

The algorithm starts with a list of values drawn from probability distribution A, assigning each value a weight of 1.

Next, you divide the weight of each item by the PDF for that item in distribution A.

You then multiply the weight of each item by the PDF for that item in distribution B, the target distribution.

Then you normalize the weights of all items in the list so they sum to 1.0.

When you use that normalized weight as a probability for choosing each item, you are drawing values from probability distribution B, even though probability distribution A was used to generate the list.

Example and Intuition

An example really helps understand this I think.

We’ll start with a small list:

4, 5, 5

Choosing an item from the list is twice as likely to give you a 5 than a 4 because there are twice as many of them. When we do uniform sampling on that list, it’s like we are doing weighted sampling of the list, where all the weights are 1. let’s put those weights in the list.

4 (1), 5 (1), 5 (1)

The probability for choosing each value in that list is this:

4: 1/3

5: 2/3

You divide the weights by those probabilities to get:

4 (3), 5 (3/2), 5 (3/2)

Or

4 (3), 5 (1.5), 5 (1.5)

Which we can normalize to this:

4 (0.5), 5 (0.25), 5 (0.25)

If you do a weighted random selection from this list using those weights, you can see that you are now just as likely to get a 4, as you are a 5. So, dividing the weights by the probabilities gave us a uniform distribution.

Now, let’s say our target distribution is that choosing a 4 should be three times as likely as choosing a 5. Here are the probabilities for that:

4: 0.75

5: 0.25

We now multiply the weights by these probabilities and get this:

4 (0.375), 5 (0.0625), 5 (0.0625)

Normalizing those weights, we get this:

4 (0.75), 5 (0.125), 5 (0.125)

If you sample from this list using those weights, there is a 75% chance you’ll get a 4, and a 25% chance you’ll get a 5.

So, even though we made this list by sampling such that a 5 was twice as likely as a 4, we can now sample from it so that a 4 is three times more likely than a 5.

The intuition here is that by dividing the weights by the probabilities that generated the list, we made the list uniform. When we multiplied the weights by the probabilities of the new distribution, it made the list take on that distribution. Not too complicated right?

Results

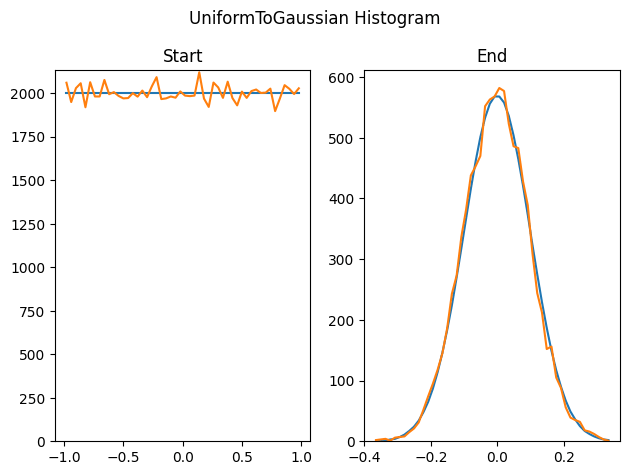

Here we use this method to generate 100,000 uniform random float values between -1 and 1, and use this technique to sample 10000 sigma 0.1 Gaussian random numbers from it. This is the starting histogram, and the sampling importance resampled values histogram.

Here we start with a sigma 1.0 Gaussian distributed list of values, and resample it into a y=3x^2 PDF.

It doesn’t always work out though. This method can only output values that are in the starting list, so if the starting list doesn’t cover the full range of the target PDF, you won’t get values in the full range of the target PDF. Here we generate uniform random values between -0.1 and 0.3, and then try to resample that into a sigma 0.1 Gaussian. We can only output numbers that exist between -0.1 and 0.3, which isn’t the full range of the Gaussian.

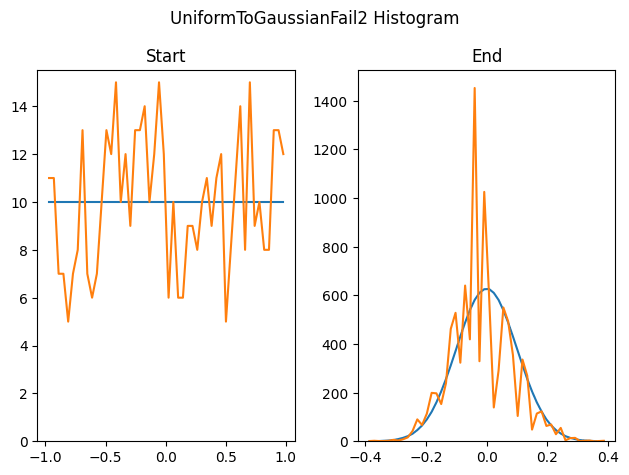

This technique can also hit problems if there aren’t enough unique values in the source list. Here we generate only 500 uniform random samples, instead of the 100,000 that we did for the previous tests, and try to turn it into a Gaussian.

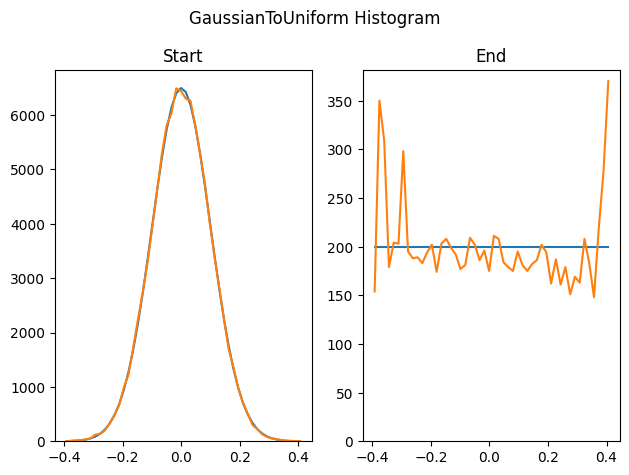

Here we do the non failure uniform to gaussian test in reverse with the same number of start and end samples. It seems as though the rare events at the tail ends of the Gaussian really explode…

Other Stuff

When doing the SIR algorithm, we normalized the weights to be able to a random selection from the list. The normalized weight of an item was it’s probability of being chosen.

This means that you have to do multiple passes through the list: Once to get the sum of the weights, then again to normalize them. Now you can select items from the list randomly.

The last blog post showed us how to do a fair random selection of a weighted list in one pass though, where the weights didn’t need to be normalized. So yep, if you use reservoir sampling to sample from the weighted list, you don’t need to normalize the weights, and you can do the random weighted selection without any preprocessing. You can even calculate the weight for the item the very first time you see it (like as the result of a ray trace?), as you (fairly) consider it for weighted random selection. How cool is that?

Further, the list of samples you choose to take before resampling the importance sampling might be uniform, but it doesn’t need to be. Maybe you could do something like MIS, where you select items using one distribution, then of that distribution, you find the best item using a second distribution? Not sure if that makes sense or not.

Lastly, while talking about uniform and non uniform distributions, white noise is implied, but it need not be white noise. Gaussian blue noise is a thing, or uniform red noise. There should also be ways to use different noise colors on the input and the output, or do weighting (scoring) to promote low discrepancy or other scoring functions that have some sort of memory or awareness of other samples.

That got off onto a tangent a bit, but the point is, there is a lot of possibility here.

If you understood this post and the last, and want more, give the paper a read. You’ll be able to understand what it’s talking about, and it goes a bit deeper into some related topics and implementation details.

“Spatiotemporal reservoir resampling for real-time ray tracing with dynamic direct lighting” https://research.nvidia.com/sites/default/files/pubs/2020-07_Spatiotemporal-reservoir-resampling/ReSTIR.pdf

Thanks for reading!

Video: https://www.youtube.com/watch?v=bZ2sCqj3ACU

Stack Exchange: https://stats.stackexchange.com/questions/229036/sampling-importance-resampling-why-resample/229086

Picking Fairly From a List of Unknown Size With Reservoir Sampling

There was an awesome graphics paper in 2020 that put together some fun and interesting statistics ideas to try and solve the “many lights” problem of ray tracing. The many lights problem is that when you are trying to shade a pixel on a surface, you technically need to shoot a ray at every light to see if it is shining onto the surface or not. This is relatively ok for a handful of lights, but becomes a big problem when you have 100,000 lights. The method in the paper has each pixel try a couple samples, share what was found with neighbors, and share with itself next frame to have some memory between frames so that it can improve where it samples over time.

The paper is a good read and you should check it out: “Spatiotemporal reservoir resampling for real-time ray tracing with dynamic direct lighting” https://research.nvidia.com/sites/default/files/pubs/2020-07_Spatiotemporal-reservoir-resampling/ReSTIR.pdf

In this post, we are going to be talking about one of the methods the paper uses, which is reservoir sampling. This allows you to stream a list of data and fairly (uniform randomly) choose an item from the list as you go. This also works when you want to choose items in the list with different probabilities. You can also just choose a random subset of the list to look at, do the same process, and the results aren’t bad.

This is useful in the many lights problem because it allows a random subset of lights to be considered by each pixel, each frame, and over time they find the best lights to sample with limited ray counts.

There are lots of other uses for reservoir sampling though, within rendering and game development, and outside of it too.

The 237 line single file C++ program that made the data for this post can be found at: https://github.com/Atrix256/WeightedReservoirSampling

Uniform Reservoir Sampling

Choosing an item uniform randomly from a streaming list of unknown size is surprisingly easy. Starting at index 1, the chance of selecting an item is 1/index. This means that index 1 is chosen when seen, then there is a 50% chance (1/2) to select index 2 instead. After that, there is a 33% chance (1/3) to select index 3 instead, and a 25% chance (1/4) to select index 4, and so on.

The mathematics of why this works is illustrated well in this youtube video: https://www.youtube.com/watch?v=A1iwzSew5QY

int index = 0;
int chosenValue = 0;

while(MoreValuesAvailable())
{
  index++;
  int nextValue = GetNextValue();
  float chance = 1.0f / float(index);
  if (GetRandomFloat01() < chance)
    chosenValue = nextValue;
}

Weighted Reservoir Sampling

Adding non uniform sampling to the algorithm is not much more difficult. The chance to choose a specific item becomes the weight of that item, divided by the sum of the weights of the items seen so far. The weights don’t have to be a normalized PDF or PMF, you can use weights of any scale. If you use a weight of “1” for all the items, it becomes the same as uniform reservoir sampling.

float weightSum = 0.0f;
int chosenValue = 0;

while(MoreValuesAvailable())
{
  item nextValue = GetNextValue();
  weightSum += nextValue.weight;
  float chance = nextValue.weight / weightSum;
  if (GetRandomFloat01() < chance)
    chosenValue = nextValue.value;
}

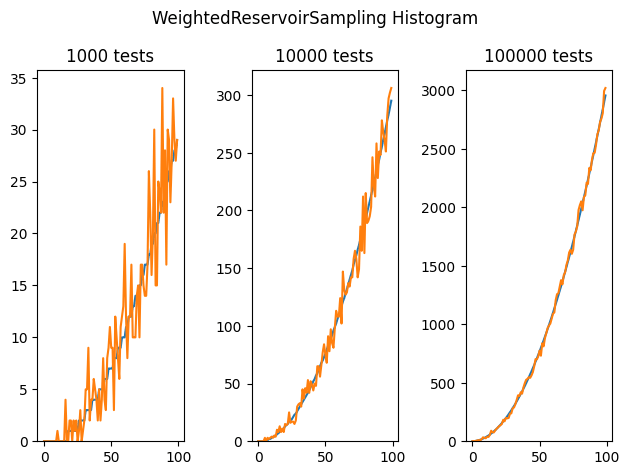

PDF(x) =3x^2

Subset Uniform Reservoir Sampling

If you are trying to uniform randomly choose an item from a list that you know the size of, but is just too big, you can do uniform reservoir sampling on a random subset of the list. The larger the random subset, the better the results, but smaller subsets can work too – especially if you are amortizing a search of a larger subset over time.

int chosenValue = 0;

for (int index = 1; index <= sampleCount; ++index)
{
  int nextValue = GetRandomListValue();
  float chance = 1.0f / float(index);
  if (GetRandomFloat01() < chance)
    chosenValue = nextValue;
}

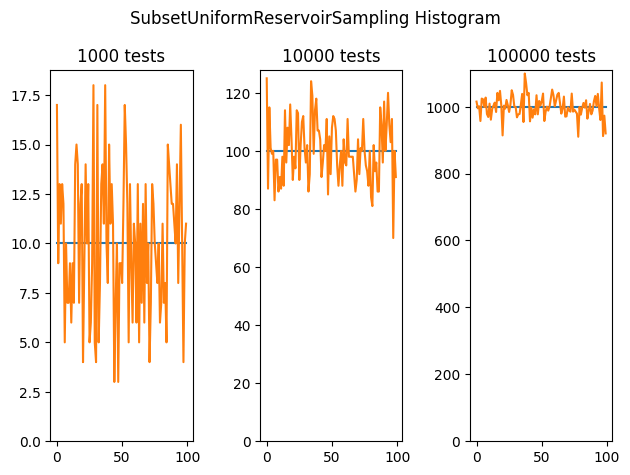

10% of the list was sampled in each test

Subset Weighted Reservoir Sampling

Adding weighting to the subset reservoir sampling is pretty easy too.

float weightSum = 0.0f;
int chosenValue = 0;

for (int index = 1; index <= sampleCount; ++index)
{
  item nextValue = GetRandomListValue();
  weightSum += nextValue.weight;
  float chance = nextValue.weight / weightSum;
  if (GetRandomFloat01() < chance)
    chosenValue = nextValue;
}
10% of the list was sampled in each test. PDF(x) =3x^2

Combining Reservoirs

If you have multiple reservoirs, they can be combined. The paper mentioned uses this to combine last frame reservoir samples with current frame reservoir samples.

void CombineReservoirs(int chosenValueA, float weightSumA, int chosenValueB, float weightSumB, int& newChosenValue, float& newWeightSum)
{
  newWeightSum = weightSumA + weightSumB;
  float chanceA = weightSumA  / newWeightSum;
  if (GetRandomFloat01() < chanceA)
    newChosenValue = chosenValueA;
  else
    newChosenValue = chosenValueB;
}

For uniform sampling in the above, weightSum is the number of items seen. It’s as if every item had a weight of 1.

Choosing Multiple Items

If you want to choose N items instead of just 1, you could run the single item selection code N times in parallel to choose those N items (Note: you could have the same item chosen multiple times). If you do that, you’ll notice that the weight sum / count will be the same for each of them, so you don’t actually need to store that per each and it can be shared. That will give you something like this for uniform reservoir sampling.

int index = 0;
int chosenValues[N];

while(MoreValuesAvailable())
{
  index++;
  int nextValue = GetNextValue();
  float chance = 1.0f / float(index);
  for (int i = 0; i < N; ++i)
  {
    if (GetRandomFloat01() < chance)
      chosenValue[i] = nextValue;
  }
}
