Not All Blue Noise is Created Equal

Some ways I know of creating blue noise distributed samples are:

To be honest, the void and cluster algorithm is a “top tier” algorithm while filtering white noise is just kind of a hack, and Mitchell’s best candidate algorithm is decent, simple but a bit out dated too.

Let’s look at some 128×128 blue noise textures created via void and cluster (top) and white noise filtering (bottom). The images on the right are the frequencies of the images (DFT magnitude). Since blue noise is high frequency noise, having a darker middle means a higher quality result.

Note: the white noise filtering used 25 iterations and a sigma of 1.5 for the blurring.

They look pretty similar don’t they? It turns out they are actually pretty different which I found really surprising when I was told. I had to see this for myself.

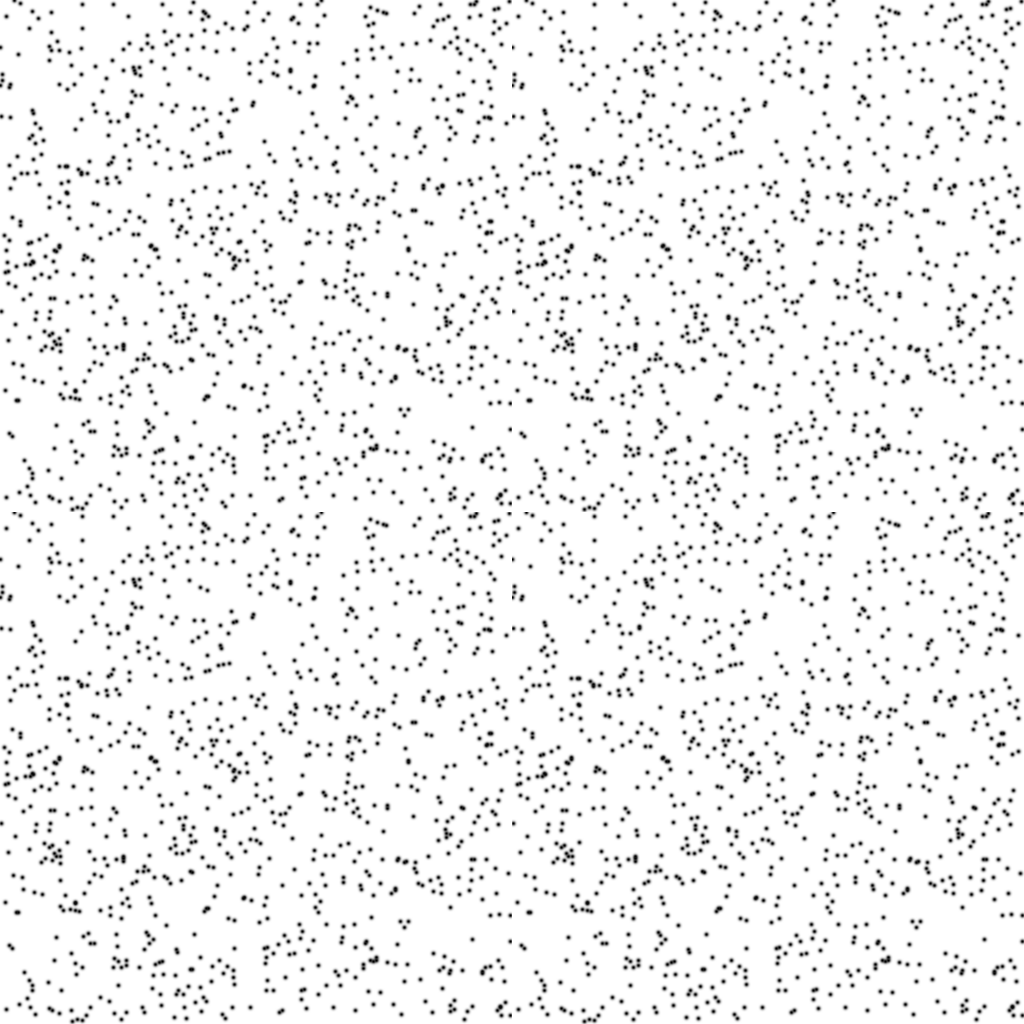

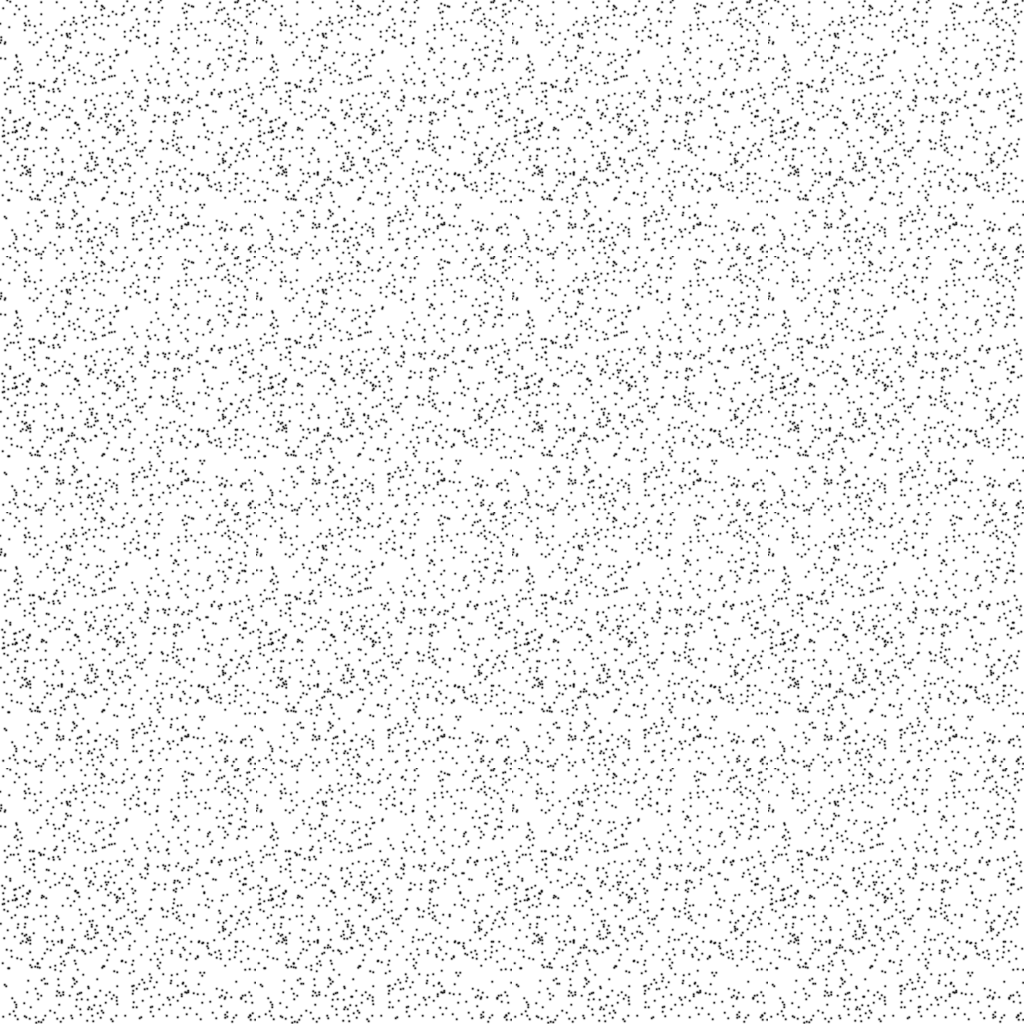

Below we threshold both images to 10%. What I mean by that is that if we consider black to be 0 and white to be 1, we make an image where there is a black dot if the color is < 0.1, else we make a white dot.

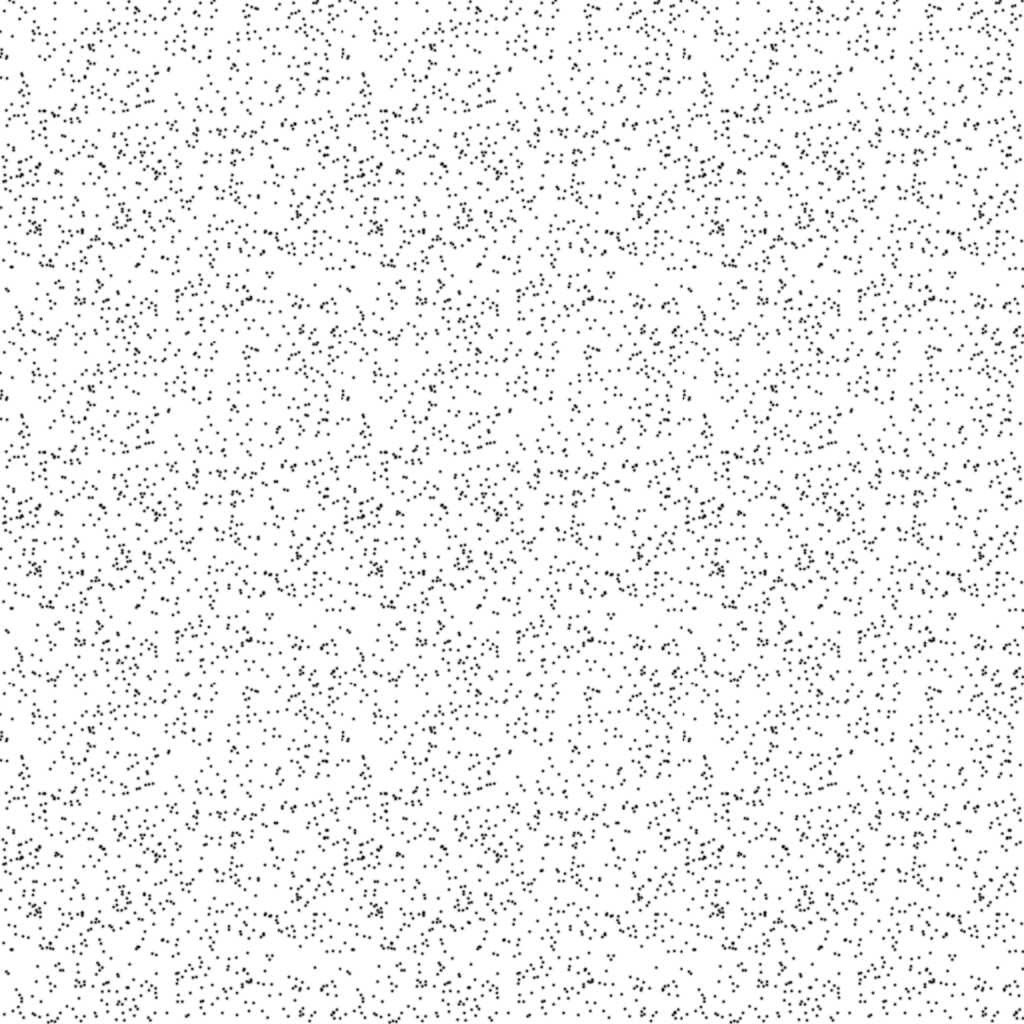

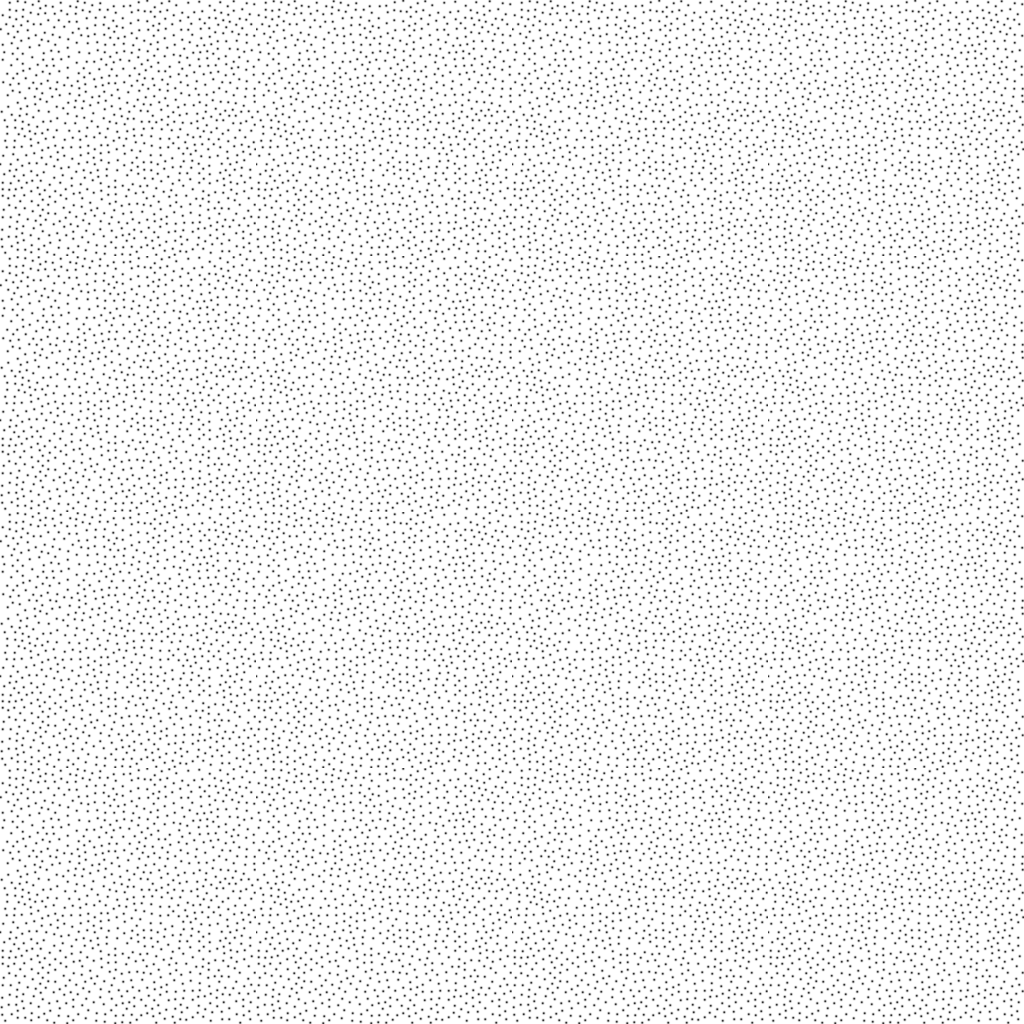

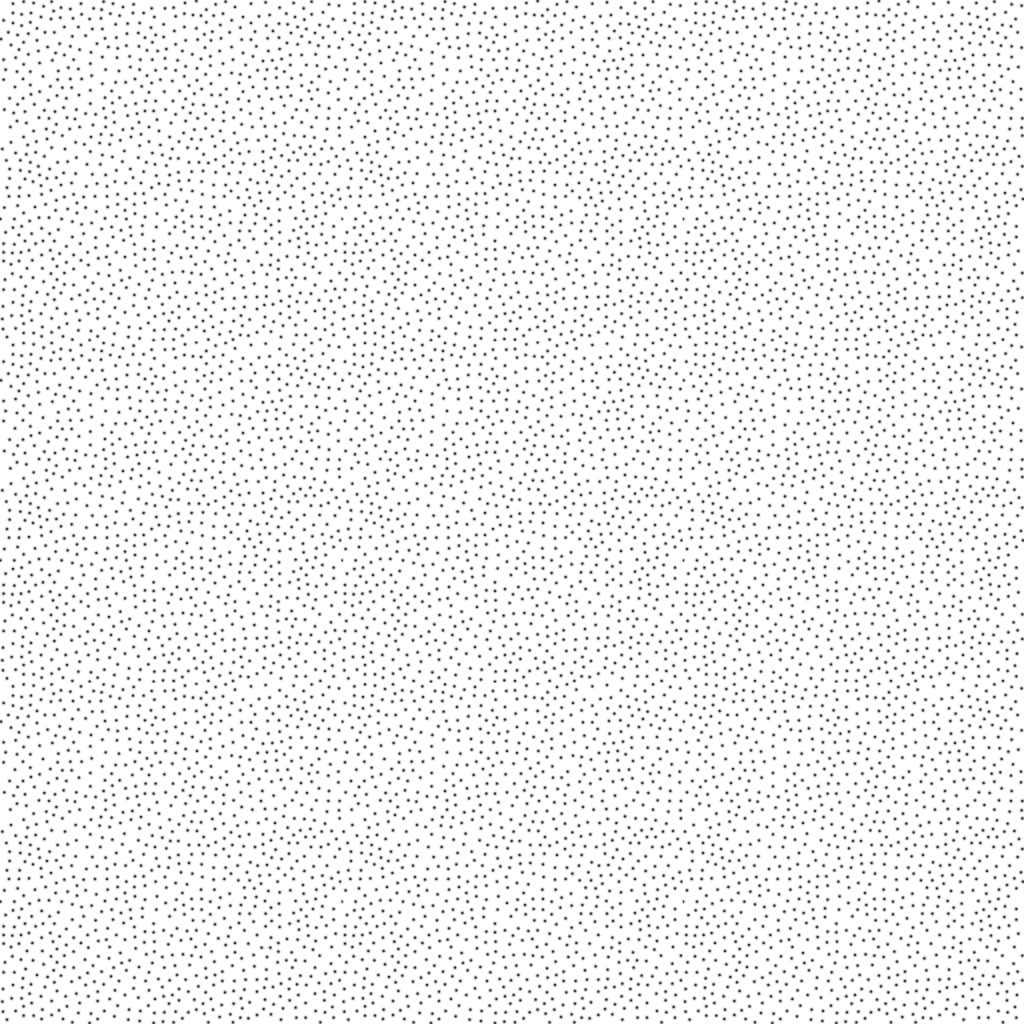

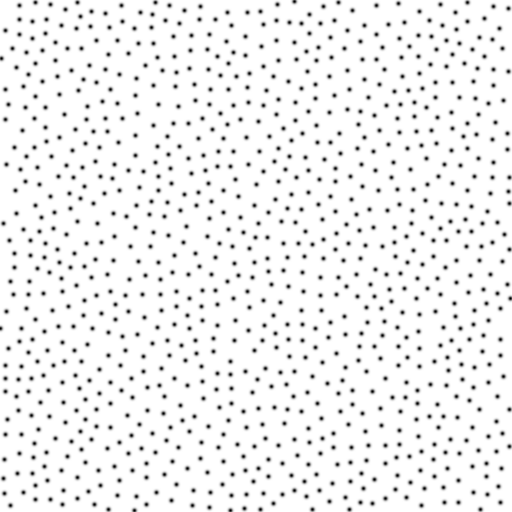

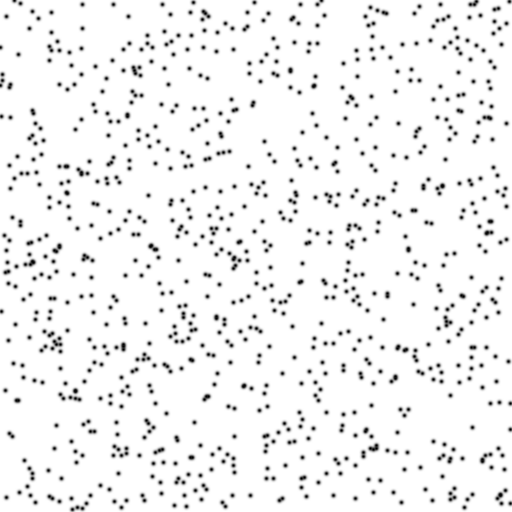

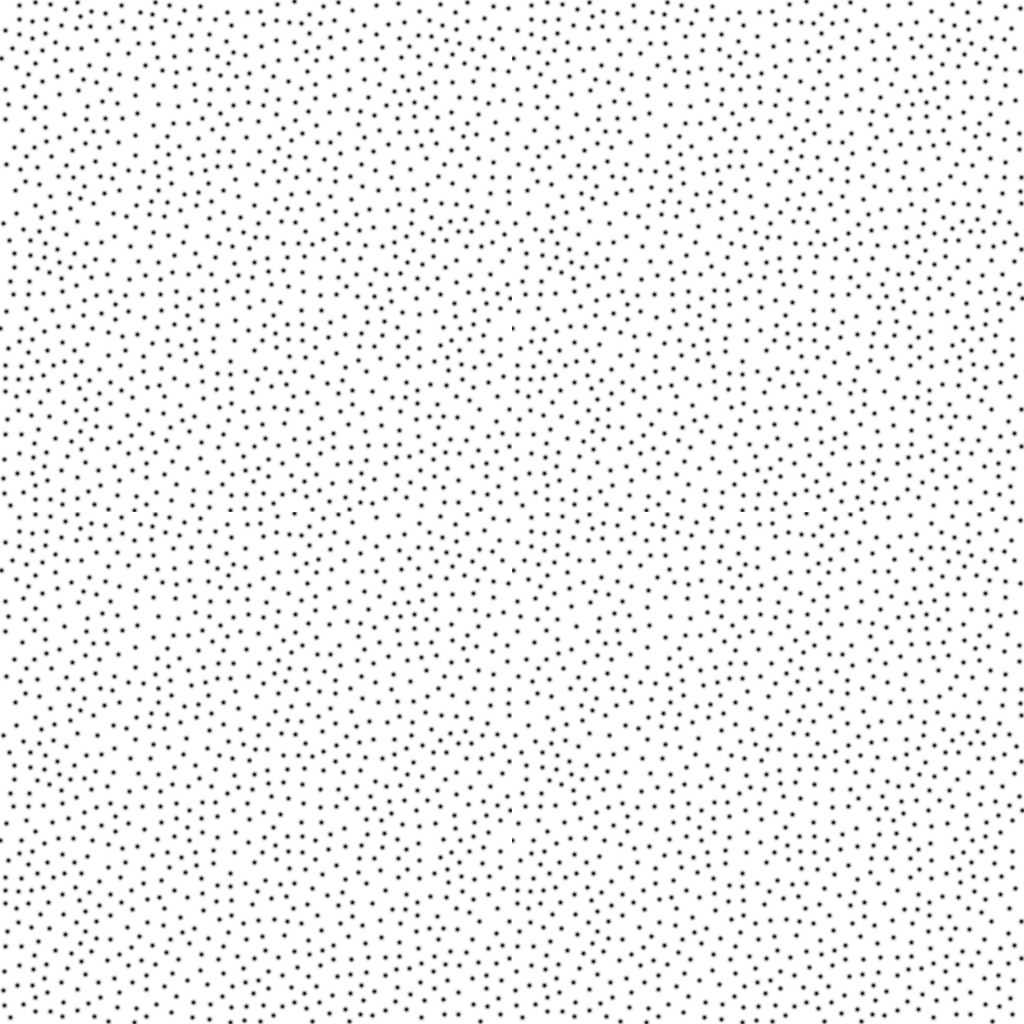

Void and cluster is top, and white noise filtering is middle. On the bottom is blue noise sample points generated with a discrete version of Mitchell's best candidate algorithm.

As you can see, the filtered white noise has already fallen apart for our purposes. It's basically unusable for this usage case. Mitchell is doing fairly ok though.

Let's move on to 20%:

Mitchell is gaining some low frequencies (it isn't as dark in the middle) but the filtered white noise is starting to look a tiny bit better.

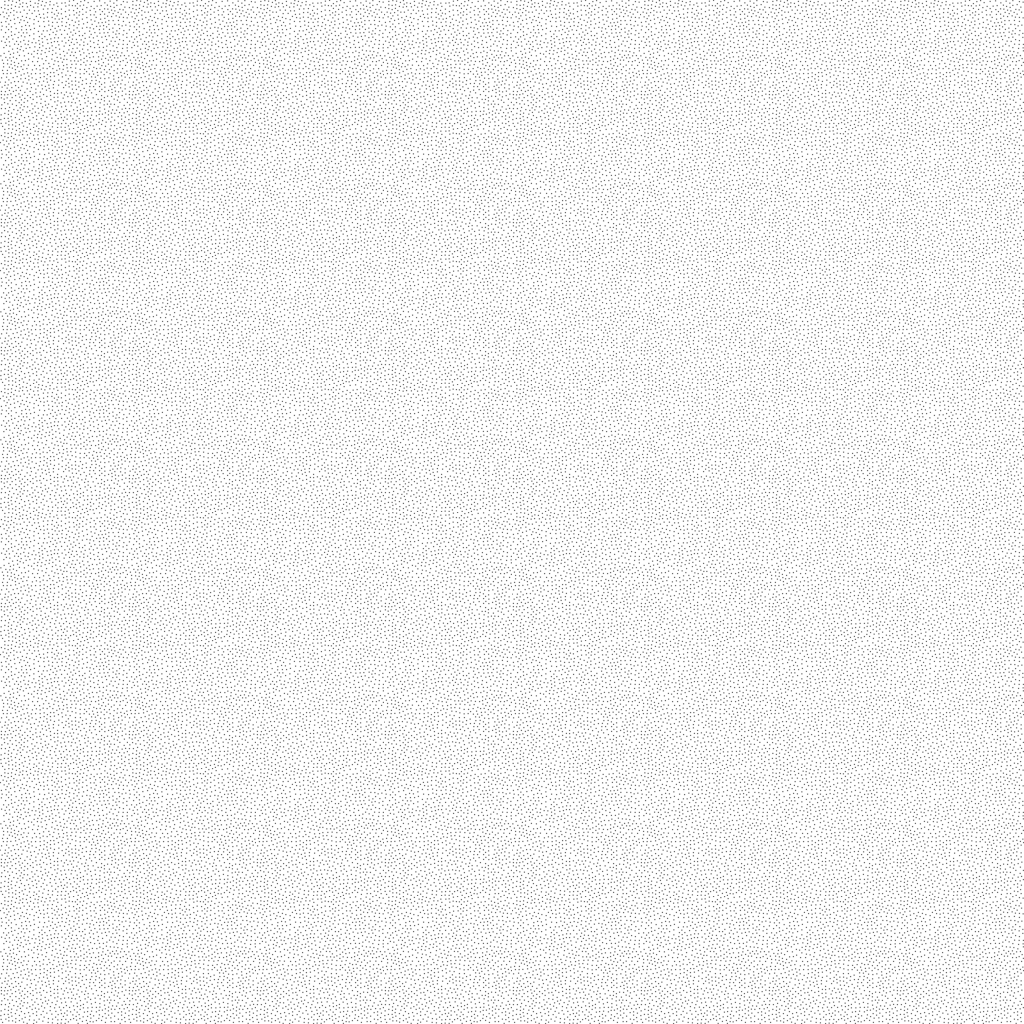

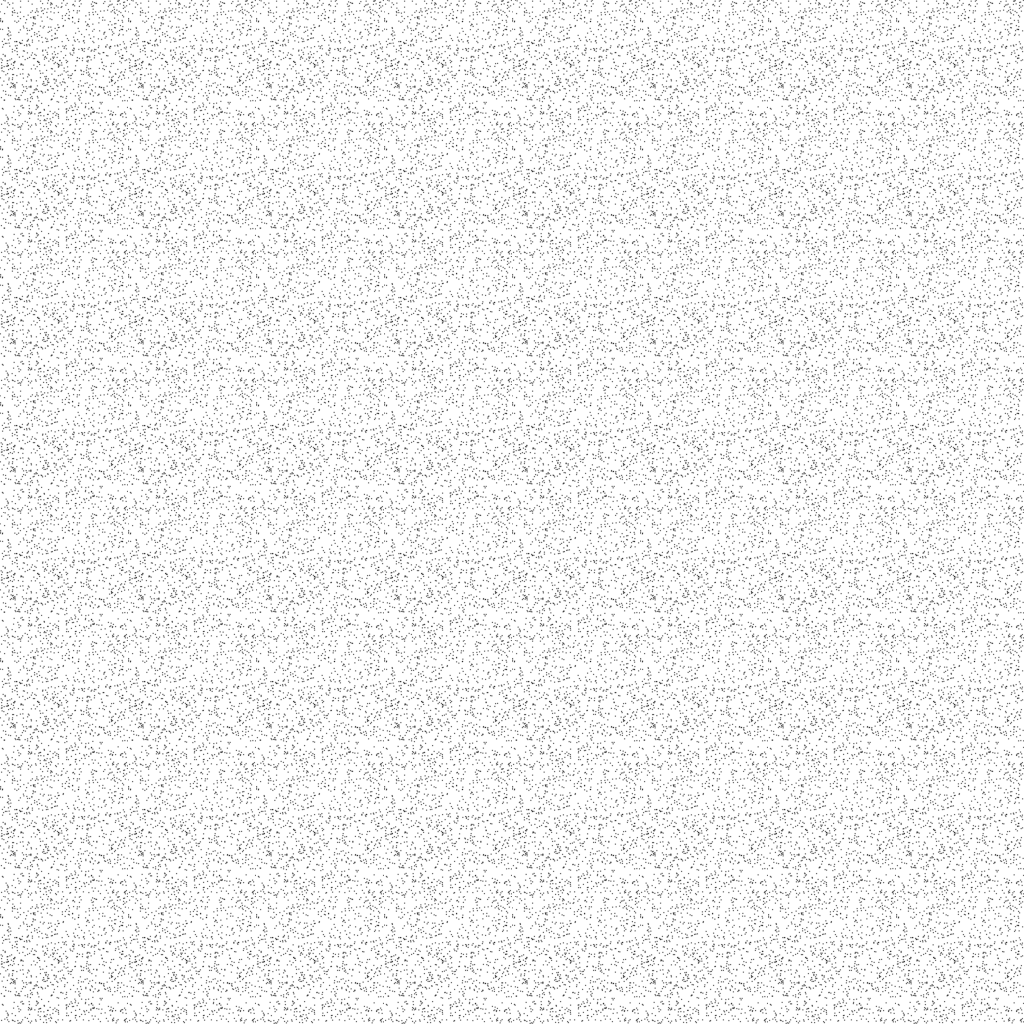

Here are the rest up to 90%:








So, void and cluster beat the pants off the other two methods.

Filtered white noise used for this purpose is no good and basically fell completely apart.

Mitchell was decent until the sample density got too high and then it failed. There are some parameters to tune with this algorithm so it's possible that it could do better, but in general the algorithm does poorly for high point densities. As an alternative, above 50% density, you could perhaps invert the colors and treat it as 100-density so that it was always working against < 50% density. Even at 50% density, it isn't that great though, at least with my setup. recently got a blue noise texture and luckily the blue noise texture was made with the void and cluster algorithm, so it's "the good stuff".

Another family of algorithms to generate blue noise are based on constrained Voronoi diagrams and relaxation to evolve starting sample points to be more blue. Those are good for generating specific point sets for a specific density, but differ from void and cluster which are designed to make a texture that works well for any density.

There are other algorithms out there as well with different properties, and new ones coming out all the time. SIGGRAPH is starting right now and I bet at least one or two new blue noise algorithms are shown 😛

Have any interesting blue noise info to share? I'd love to hear it! It feels like the rabbit hole here is a lot deeper than it seems.

Tiled Blue Noise

Blue noise textures tile well, but how well exactly? This page is a quick reference to answer that question.

I started with some blue noise textures made with the void and cluster algorithm that you can download here:

I took a 16×16, 32×32, 64×64, 256×256 and tiled each of those to make 512×512 images.

Here are the source RGBA images:

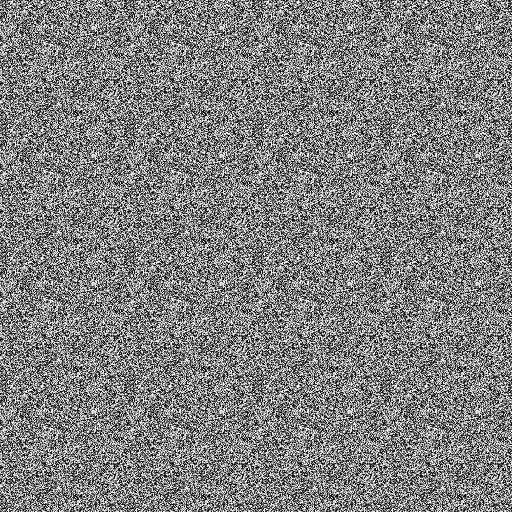

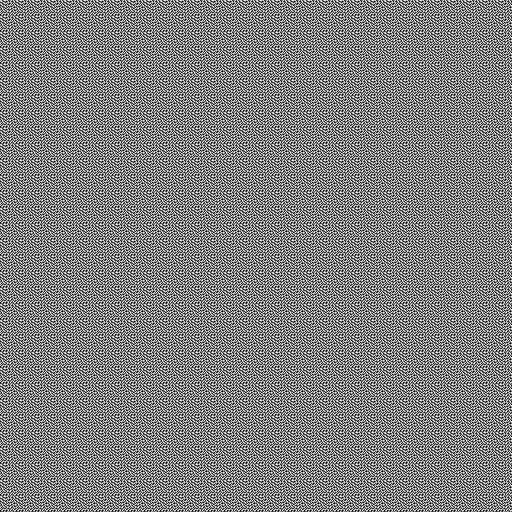

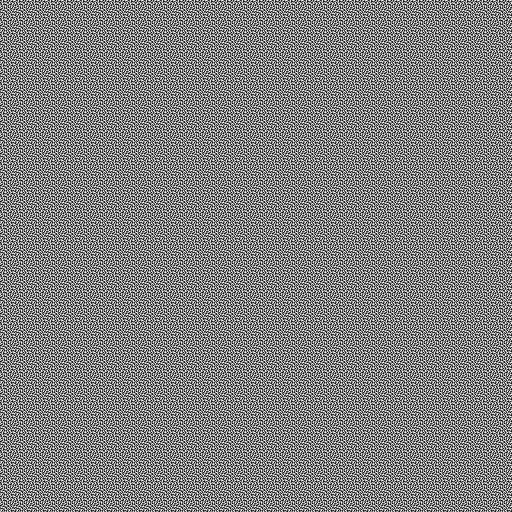

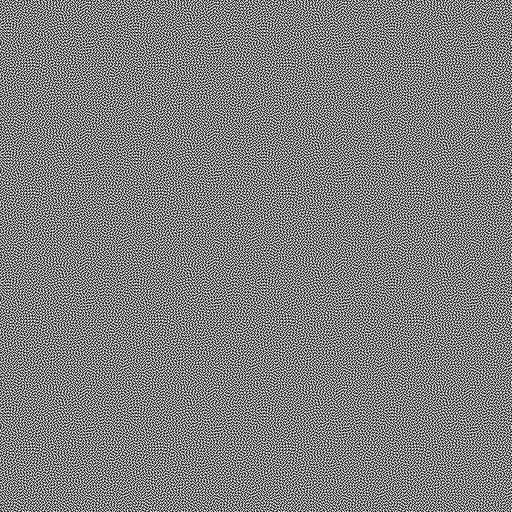

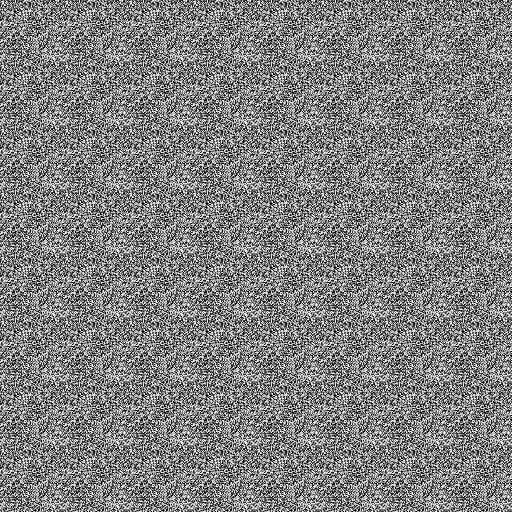

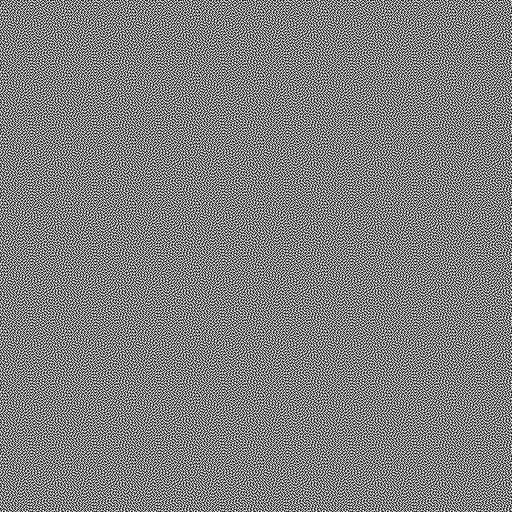

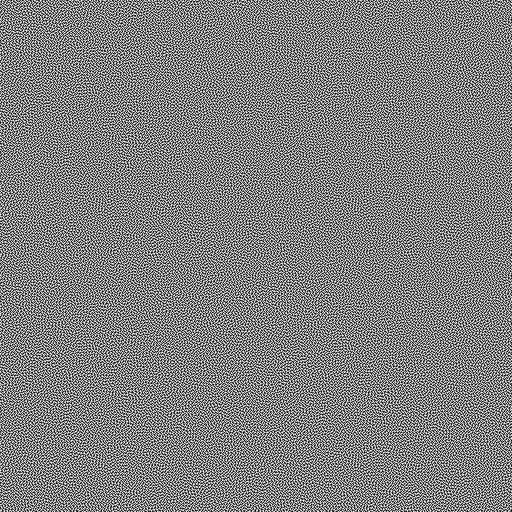

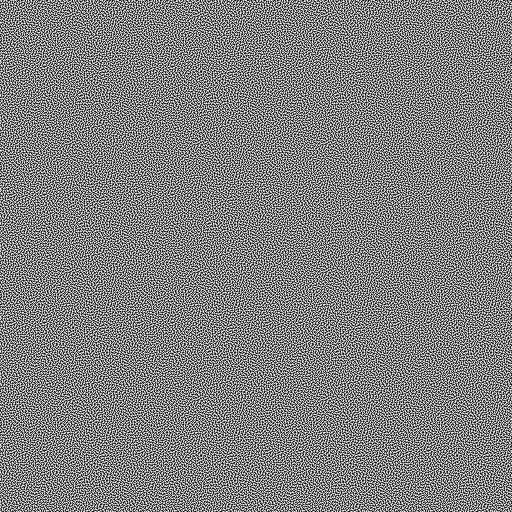

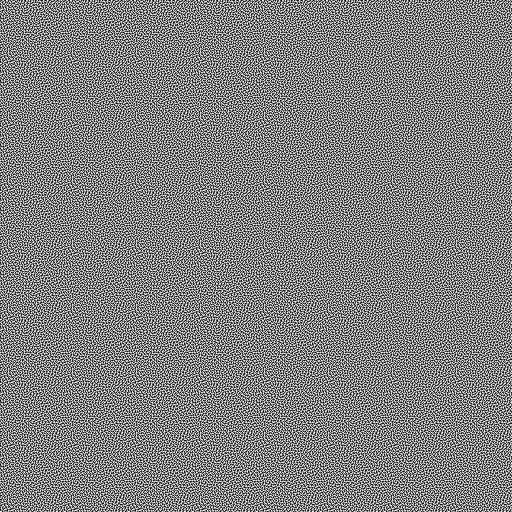

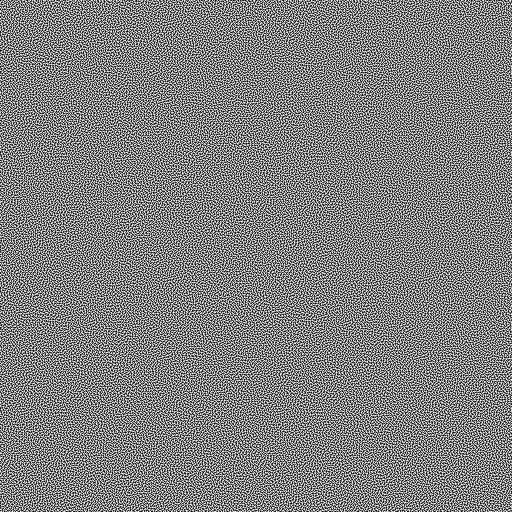

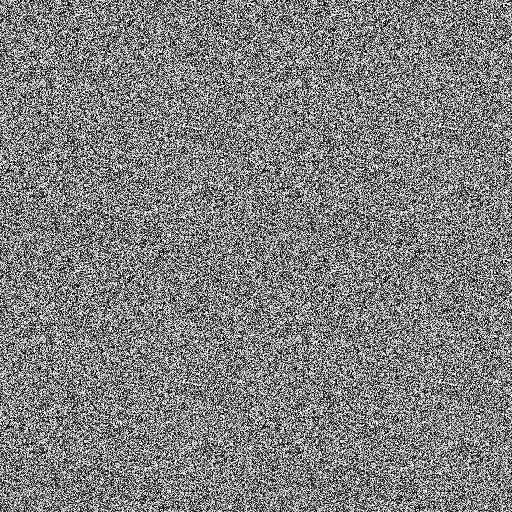

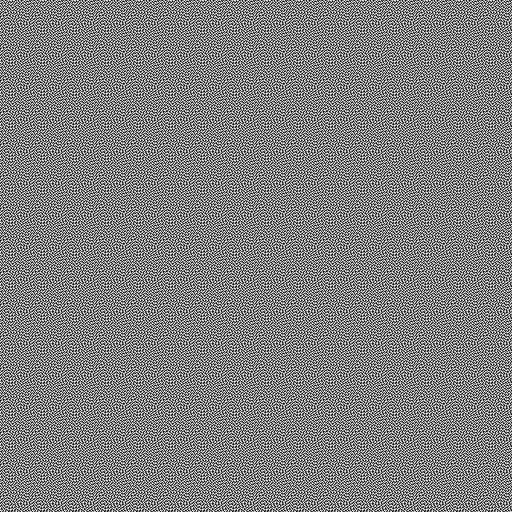

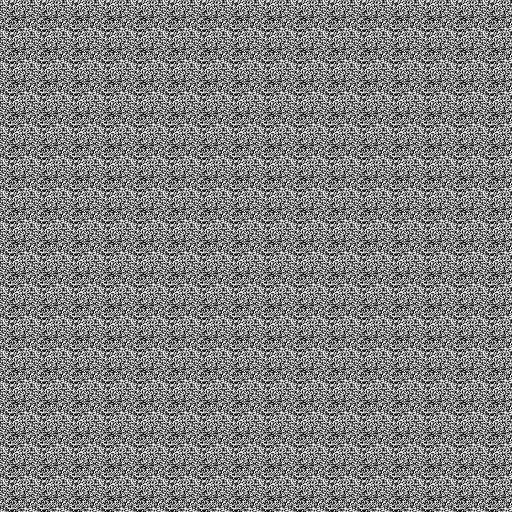

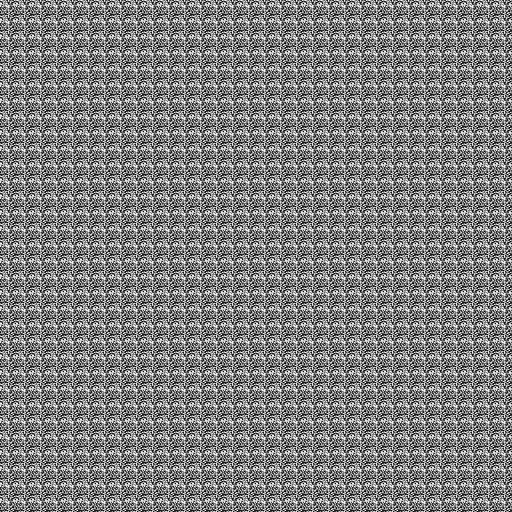

Here are the output images, where I used only the R channel of each image.






Something interesting to note is that blue noise is supposed to tile well by nature. It is made up of high frequencies only, which means there aren’t low frequency patterns that show up and are visible to the eye.

Here’s an interesting read showing how that can be used to make textures (art) that tile better:
