# Bilinear Filtering & Bilinear Interpolation

Take a look at the picture below. Can you calculate the values at points A,B and C? There’s a technique for doing this called bilinear interpolation which extends the idea of linear interpolation into two dimensions.

To calculate bilinear interpolation, you just do linear interpolation on one axis, and then the other.

Check out these examples:

Point A
Point A has a coordinate of (0.2,0.8). Let’s start with the X axis.

Firstly, we’ll do interpolation across the top of the square on the X axis. That means we need to go 0.2 (20%) of the way from 7 to 0. That 0.2 is our x axis coordinate. To calculate that we do this:
7 + (0-7) * 0.2 = 5.6

Next, we’ll do interpolation across the bottom of the square on the X axis. So similar to above, we’ll go 0.2 (20%) of the way from 3 to 5. To calculate that we do this:
3 + (5-3) * 0.2 = 3.4

Now that we have interpolated across our X axis we need to interpolate across our Y axis. We are now going to go 0.8 (80%) of the way from our bottom value (the value of Y = 0), to our top value (the value of Y = 1). The bottom value is the bottom interpolation we did (3.4) and the top value is the top interpolation we did (5.6).

So, we need to go 0.8 (80%) of the way from 3.4 to 5.6. To calculate that we do this:
3.4 + (5.6 – 3.4) * 0.8 = 5.16

So, the value at point A is 5.16. The image below should help explain visually the process we went through. Point B

Point B has a coordinates of (1.0,0.5).

Let’s start with the X axis interpolation again (although you could easily start with Y first if you wanted to! You’d end up with the same result).

Doing the X axis interpolation across the top, we need to go 1.0 (100%) of the way from 7 to 0. I’m sure you can guess what the answer is but here it is calculated:
7 + (0-7) * 1.0 = 0

Similarly, let’s do the X axis interpolation across the bottom. We need to go 1.0 (100%) of the way from 3 to 5.
3 + (5-3) * 1.0 = 5

Next up comes the Y axis interpolation. We need to go 0.5 (50%) of the way from 5 to 0.
5 + (0-5) * 0.5 = 2.5

There we go, the value at point B is 2.5. That should make sense too by looking at the diagram. It’s basically 1d linear interpolation between 5 and 0, and is half way between them, so intuitively, the answer 2.5 should make sense.

Point C

Point C has a coordinate of (0.8,0.2).

Once again, let’s do the X axis interpolation across the top of the box. We need to go 0.8 (80%) of the way from 7 to 0.
7 + (0-7) * 0.8 = 1.4

Then, we need to do the x axis interpolation across the bottom of the box. We need to go 0.8 (80%) of the way from 3 to 5.
3 + (5-3) * 0.8 = 4.6

Lastly, the y axis interpolation. We need to go 0.2 (20%) from 4.6 to 1.4.
4.6 + (1.4-4.6) * 0.2 = 3.96

The value of point C is 3.96

## Bilinear Filtering

While bilinear interpolation is useful if you have a grid of data that you want to interpolate values within (such as a height field that represents terrain?!), where this really shines in game development is in bilinear texture filtering.

Basically, when you have a texture coordinate that doesn’t perfectly line up with the center of a pixel in the texture (because there’s a remainder), it uses the fractional part of the coordinate within that pixel to do bilinear interpolation between the 4 pixels involved to come up with the final pixel color. It does bilinear interpolation on each of the channels: Red, Green, Blue and Alpha.

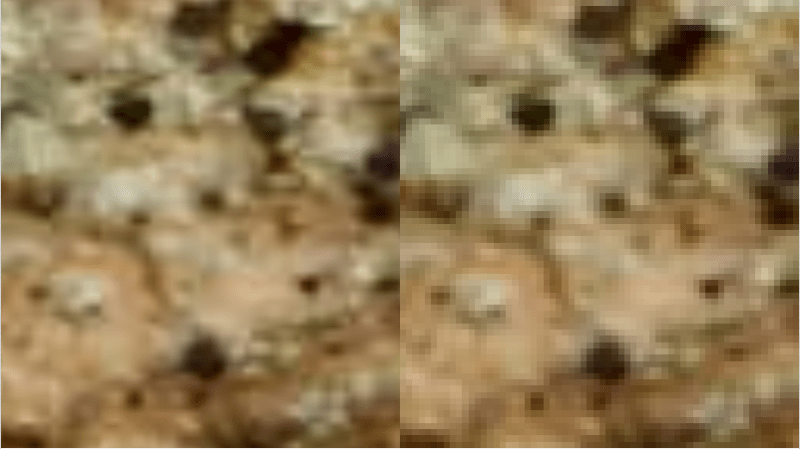

The end result is pretty good! Check out the image below to see it in action on a texture that we are zoomed in too far on. The left side uses bilinear filtering, while the right side does not, and just shows you the nearest pixel. Consequently, bilinear texture filtering has to do 4 pixel reads to be able to interpolate between them, instead of a single pixel read like when doing nearest pixel sampling. More pixel reads = more overhead, and not as cheap (computationally) to use.

For some folks who are reading this, this info is pretty basic and you might be wondering why i bothered writing about it. Look to the next post for something kind of bizarre regarding bilinear filtering. This was needed as a stepping stone to the next thing I want to show you guys 😛

Wikipedia: Linear Interpolation

Wikipedia: Bilinear Interpolation

Wikipedia: Bilinear Filtering

## The Dark Side of Bilinear Filtering

Check out these links for some deeper info about some shortcomings (and some workarounds) of hardware based bilinear sampling:
iq: hardware interpolation
iq: improved texture interpolation

Here are the last two SSAA algorithms/sampling patterns that I wanted to share – FlipQuad and FlipTri.

The last post talked about 4-Rook antialiasing which took 4 samples per pixel to do antialiasing.

Before that we talked about quincunx which was able to get 5 samples per pixel, while only rendering 2 samples per pixel. It was able to do that by sharing “corner samples” among 4 pixels.

If you combine the ideas from the last two posts, you could start with the 4-rook sampling points and push them to the edge of the pixel so that the edge samples can be shared between the pixels that share the edge.

If you do that though, you’ll actually have two samples on each edge. To solve this and keep the same number of sample points per pixel, you could flip every other pixel’s sample points.

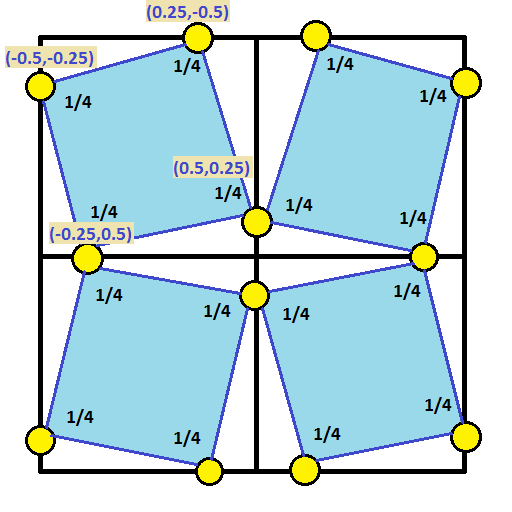

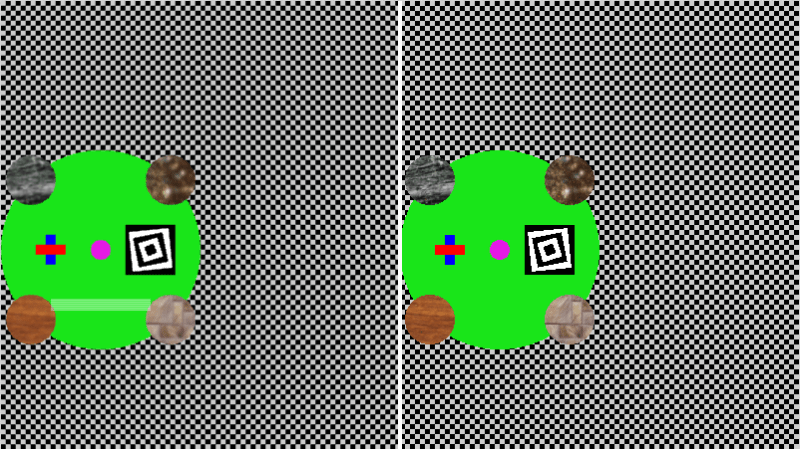

Ta-Da! That is exactly what FlipQuad is. Check out the sampling pattern below, which shows the samples for a 2×2 grid of pixels. You’d just repeat this pattern for as many pixels as you had. Here’s an image that shows FlipQuad in action – anti aliased on the left, regular image on the right. You can click on the image to see the shadertoy demo of it. It works pretty well, but it is pretty blurry, especially the textures! Kind of makes sense because quincunx was blurry due to shared samples. We have ONLY shared samples in this pattern, so it’s understandable that it’s kind of blurry. There’s less unique information per pixel than in the other SSAA techniques shown so far.

This essentially is 2 samples rendered per pixel to get 4x SSAA.

## FlipTri

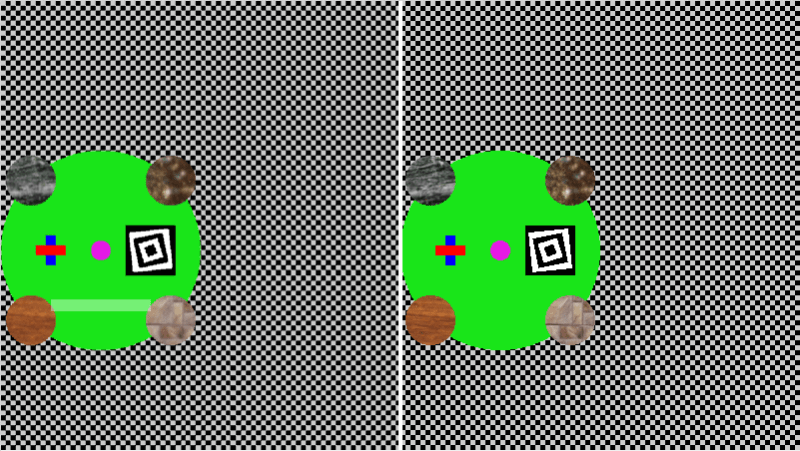

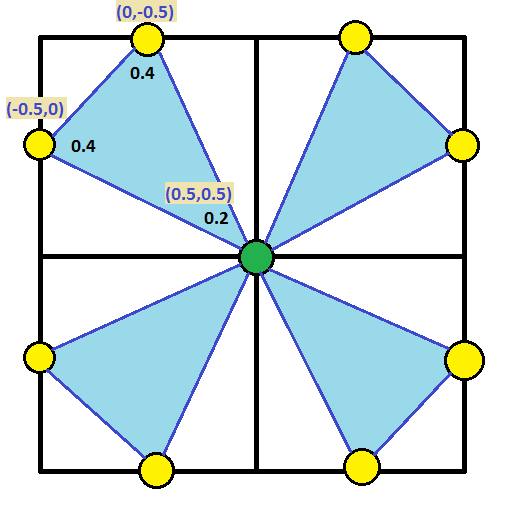

Flipquad worked decently, but instead of using a quad, could we use a triangle? Yes we can, check out the 2×2 pixel sampling pattern below: Here’s an image that shows FlipTri in action – anti aliased on the left, regular image on the right. You can click on the image to see the shadertoy demo of it. This essentially is 1.25 samples rendered per pixel to get 3x SSAA! It really doesn’t look that different to my eyes than the flipquad method, but it uses quite a fewer number of samples!

## Conclusion

So basically, there’s a bunch of different ways to do SSAA style anti aliasing, even beyond the ones I showed, but in the end you are basically just taking more samples and/or sharing samples across multiple pixels to get a better resulting image.

SSAA is also a common technique in raytracing, where they will shoot multiple rays per pixel, and combine them together in this way, sometimes for things like movies, they will cast hundreds of rays per pixel! You could also just render multiple times and do one of the methods we’ve talked about in the last couple post instead of explicitly shooting multiple rays per pixel.

At SIGGRAPH 2014, someone mentioned in the “advancements in realtime rendering” talk that they used the flipquad pattern along with temporal supersampling. That made it so the 2 samples rendered per pixel was amortized across two frames and thus became one sample per pixel, which is pretty nifty. I feel like you could extend that to flip tri’s and perhaps render less than 1 sample per pixel each frame.

A big issue with implementing these in modern graphics situations is that it’s difficult to render a sample once and share it across multiple pixels. I have a way in mind involving rendering the scene a couple times with different sized buffers and offsets, but not sure yet if it’s practical. Temporal supersampling algorithms definitely seem like they could benefit from these exotic patterns more easily.

Up next I think I’m going to try and figure out MSAA, which has similar results as SSAA, but from the sound of things, performs a bit better.

Rasterization

FlipTri Research Paper: An Extremely Inexpensive
Multisampling Scheme

A Weighted Error Metric and Optimization Method for
Antialiasing Patterns

CGT 511
(Anti)aliasing

Bart Wronski: Temporal supersampling and antialiasing

A Family of Inexpensive Sampling Schemes

# 4-Rook Antialiasing (RGSS)

The last post was about quincunx antialiasing which used 5 samples per pixel, but allowed you to share 4 of those samples with 4 other pixels each, making it so you only had to render 2 samples per pixel to get those 5 samples per pixel.

I also mentioned that shadertoy didn’t allow you to render to texture so in my shadertoy demo, i had to actually just do 5 samples per pixel to be able to show you the quincunx effect.

If you ever find yourself in that sort of a situation where you can’t (or don’t want) to render your scene twice, 4-Rook Antialiasing may be more what you are looking for.

4-Rook anti aliasing takes 4 samples per pixel, and does so in the pattern below with the specified blend weights. This pattern is also sometimes called rotated grid supersampling (RGSS) and is also a subset of “N-Rook” supersampling where your sample points within a pixel don’t share a vertical or horizontal line with any other sample point. The N-Rook sample patterns are good at breaking up horizontal or vertical aliasing. Interestingly, 4-Rook AA looks less blurry than quincunx so is higher quality. Intuitively, I’d have to say that makes sense, especially since it is more expensive to do (you render 4 samples per pixel instead of 2!), and also, while quincunx technically has 5 samples per pixel, and 4-Rook only has 4, those 4 samples are all NEW information used only once, while 4 of the samples in quincunx are “old news” and just the old information repeated again.

I think of it like this… the difference between a blur and real SSAA is that in a blur, you try to improve the image with no added information, while in SSAA you try to improve the image WITH added information. Quincunx is on the spectrum between those two since it re-uses 4 samples (minimal “new information”), while 4-rook’s samples are all new information.

Note that you could implement this anti aliasing by rendering your scene 4 times, each time offset by one of the 4 offsets. You would then do a final full screen pass to average each pixel across all 4 renders. In other words: Output[x][y] = (A[X][Y] + B[X][Y] + C[X][Y] + D[X][Y])/4.

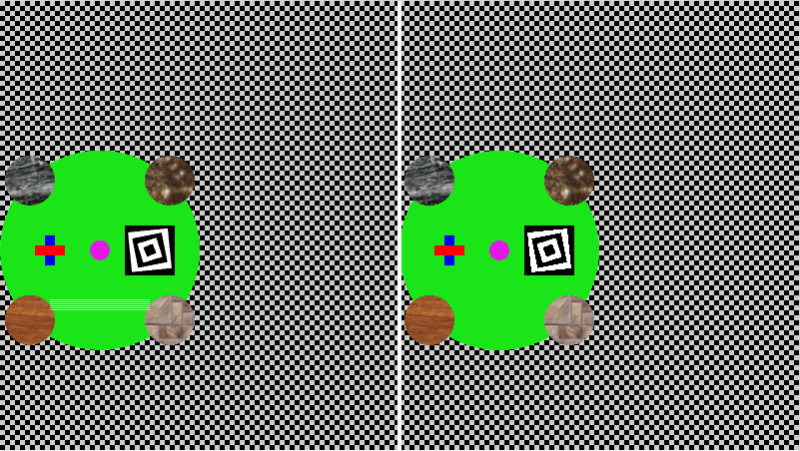

Click the image below to be taken to the shadertoy demo of 4-rook anti aliasing. Here is the quincunx image again for reference, note how it looks blurier in comparison to the 4-Rook image above (check out the red/blue rectangles to see that best), and that the spiral squares don’t quite look as good (they look more aliased?) and that the background grid is ever so slightly darker than the 4-rook version above (or the aliased version of the grid in either picture)! # Quincunx Antialiasing

If you are looking for a quick and easy antialiasing implementation, quincunx could be what you are looking for.

Quincunx is part of the family of anti aliasing called supersampling antialiasing (SSAA), which all work by taking multiple samples per pixel, each sample being offset by some amount, and then adding the samples back together with various weightings to get the final antialiased pixel color.

Quincunx antialiasing works by mixing five samples per pixel, in the pattern of the diagram below with the specified weights. The real interesting and useful thing about it though is that the 4 corner samples are each re-used by 4 other pixels, which makes it so that even though you take five samples per pixel, you are in effect really only rendering TWO samples per pixel to get results similar to 5x supersampling antialiasing!

Basically, the performance cost is about the same as 2x SSAA, but gives you results similar to 4x-5x SSAA. Trivial Note: The word quincunx describes the position of those 5 dots, which is the same configuration you see for the number five on a six sided die.

Since the corners are a half pixel offset from the center pixel, the algorithm for doing quincunx sampling is as follows:

1. Render your scene to a full size buffer (same size as your output render target), offsetting your camera in screen space by (0.5,0.5) pixels
2. Next, render your scene to the usual render target as normal
3. Run a full screen pixel shader post effect on your normal “output render target”. For each pixel:
1. Multiply the pixel color channels by 0.5
2. Add in these four offsets from the current pixel location, in the “offset” buffer (the first one rendered), multiplying the color channels by 0.125: (-1,-1), (-1,0), (0,-1), (0,0).

That’s all there is to it! Click the image below to be taken to an animated shadertoy I made which does quincunx antialiasing in a WebGL pixel shader. Shadertoy unfortunately doesn’t let you render to texture, so i have to do all 5 samples per pixel, but you can see see the effect compared to no anti aliasing at all, and the results are pretty nice!

The left half of the image is quincunx antialiased while the right side is not antialiased at all. A few more creative supersampling AA algorithms coming next (:

# Frequency Domain Audio Synthesis – With IFFT and Oscillators

One way to look at sounds is to think about what frequencies they contain, at which strengths (amplitudes), and how those amplitudes change over time.

For instance, if you remember the details of the post about how to synthesis a drum sound (DIY Synth: Basic Drum), a drum has low frequencies, but also, the frequencies involved get lower over the duration, which gives it that distinctive sound.

Being able to analyze the frequency components of a sound you want to mimic, and then being able to generate audio samples based on a description of frequency components over time is a powerful tool in audio synthesis.

This post will talk about exactly that, using both oscillators as well as the inverse fast Fourier transform (IFFT).

We’ve already gone over the basics of using oscillators to create sounds in a previous post so we’ll start with IFFT. For a refresher on those basics of additive synthesis check out this link: DIY Synth 3: Sampling, Mixing, and Band Limited Wave Forms

All sample sound files were generated with the sample code at the end of this post. The sample code is a single, standalone c++ file which only includes standard headers and doesn’t rely on any libraries. You should be able to compile it and start using the techniques from this post right away!

## What is the IFFT?

Audio samples are considered samples in the “time domain”. If you instead describe sound based on what frequencies they contain, what amplitudes they are at, and what phase (angle offset) the sinusoid wave starts at, what you have is samples in the “frequency domain”.

The process for converting time domain to frequency domain is called the “Fourier Transform”. If you want to go the opposite way, and convert frequency domain into time domain, you use the “Inverse Fourier Transform”.

These transforms come in two flavors: continuous and discrete.

The continuous Fourier transform and continuous inverse Fourier transform work with continuous functions. That is, they will transform a function from time domain to frequency domain, or from frequency domain to time domain.

The discrete version of the fourier transform – often refered to as DFT, short for “discrete fourier transform” – and inverse fourier transform work with data samples instead of functions.

Naively computing the DFT or IDFT is a very processor intensive operation. Luckily for us, there is an algorithm called “Fast Fourier Transform” or FFT that can do it a lot faster, if you are ok with the constraints of the data it gives you. It also has an inverse, IFFT.

IFFT is what we are going to be focusing on in this post, to convert frequency domain samples into time domain samples. Also, like i said above, we are also going to be using oscillators to achieve the same result!

## Using the IFFT

Here’s something interesting… where time domain samples are made up of “real numbers” (like 0.5 or -0.9 or even 1.5 etc), frequency domain samples are made up of complex numbers, which are made up of a real number and an imaginary number. An example of a complex number is “3.1 + 2i” where i is the square root of negative 1.

If you look at the complex number as a 2d vector, the magnitude of the vector is the amplitude of the frequency, and the angle of the vector is the phase (angle) that the sinusoid (cosine wave) starts at for that frequency component.

You can use these formulas to create the complex number values:

```real = amplitude * cos(phase);
imaginary = amplitude * sin(phase);
```

Or you could use std::polar if you want to (:

BTW thinking of complex numbers as 2d vectors might be a little weird but there’s precedent. Check this out: Using Imaginary Numbers To Rotate 2D Vectors

When using the IFFT, the number of frequency domain samples you decide to use is what decides the frequencies of those samples. After preforming the IFFT, you will also have the same number of time domain samples as frequency domain samples you started with. That might sound like it’s going to be complex, but don’t worry, it’s actually pretty simple!

Let’s say that you have 4 buckets of frequency domain data, that means you will end up with 4 time domain audio samples after running IFFT. Here are the frequencies that each frequency domain sample equates to:

• index 0: 0hz. This is the data for the 0hz frequency, or DC… yes, as in DC current! DC represents a constant added to all samples in the time domain. If you put a value in only this bucket and run the IFFT, all samples will be the same constant value.
• index 1: 1hz. If you put a value in only this bucket and run the IFFT, you’ll end up with one full cosine wave (0-360 degrees aka 0-2pi radians), across the 4 time domain samples. 4 samples isn’t very many samples for a cosine wave though so it will look pretty blocky, but those 4 samples will be correct!
• index 2: 2hz. If you put a value in only this bucket and run the IFFT, you’ll end up with two full cosine waves (0-720 degrees aka 0-4pi radians) across the 4 time domain samples.
• index 3: -1hz.

You might wonder what that negative frequency at index 3 is all about. A negative frequency probably seems weird, but it’s really the same as it’s positive frequency, just with a negative phase. It’s basically a cosine wave that decreases in angle as it goes, instead of increasing.

Why is it there though? Well, there’s something called the Nyquist–Shannon Sampling Theorem which states that if you have N time domain audio samples, the maximum frequency you can store in those audio samples is N/2 cycles. That frequency is called the Nyquist frequency and any frequency above that results in “aliasing”. If you’ve ever seen a car tire spin in reverse on tv when the care was moving forward, that is an example of the same aliasing I’m talking about. In manifests in audio as high pitches and in general terrible sounding sound. Before I knew how to avoid aliasing in audio, my now wife used to complain that my sounds hurt her ears. Once i removed the aliasing, she says it no longer hurts her ears. Go back and check the early DIY synth posts for audible examples of aliasing (;

Since we have 4 frequency domain samples, which translates to 4 time domain audio samples, we can only store up to 2hz, and anything above that will alias and seem to go backwards. That’s why index 3 is -1hz instead of 3hz.

So basically, if you have N frequency domain samples (or bins as they are sometimes called), the first bin, at index 0, is always 0hz / DC. Then from 1 up to N/2, the frequency of the bin is equal to it’s index. Then, at N/2+1 up to N-1, there are negative frequencies (frequencies beyond the Nyquist frequency) reflected in that upper half of the bins, starting at N/2 and counting back up to -1.

In many common situations (including the ones we are facing in this post), you don’t need to worry about the negative frequency bins. You can leave them as zero if doing IFFT work, or ignore their values if doing FFT then IFFT work.

Ready for one last piece of complexity? I hope so… it’s the last before moving onto the next step! 😛

Sounds are obviously much longer than 4 samples, so a 4 bin (sample) IFFT just isn’t going to cut it. 1000 bins would to be too few, and Frankly, at 44,100 samples per second (a common audio sampling rate), 88,200 bins is only 2 seconds of audio which isn’t very much at all! Even with the “Fast Fourier Transform” (FFT), that is a huge number of bins and would take a long time to calculate.

One way to deal with this would be to have fewer bins than audio samples that you want to end up with, use IFFT to generate the audio samples, and then use interpolation to get the audio samples between the ones generated by IFFT. We aren’t going to be doing that today but if you like the option, you can most certainly use it!

One of the ways we are going to deal with using a small number of bins to generate a lot of noise is that we are going to use the IFFT to generate wave forms, and then we are going to repeat those wave forms several times.

Another one of the things we are going to do is use IFFT bins to generate a small number of samples, and then modify the IFFT bins to generate the next number of samples, repeating until we have all of our audio samples generated.

In both cases, the frequency buckets need some conversion from the IFFT bin frequencies to the frequencies as they will actually appear in the final audio samples.

To calculate the true frequency of an FFT bin, you can use this formula:

`frequency = binNumber * sampleRate / numBins;`

Where binNumber is the IFFT bin number, sampleRate is how many samples the resulting sound has per second, and numBins is the total number of IFFT bins.

## Simple Wave Forms

The simplest of the wave forms you can create is a cosine wave. You just put the complex number “1 + 0i” into one of the IFFT bins, that represents an amplitude of 1.0 and a starting phase of 0 degrees. After you do that and run ifft, you’ll get a nice looking cosine wave: Note that the wave repeats multiple times. This is because I repeat the IFFT data over and over. If I didn’t repeat the IFFT data, the number of cycles that would appear would depend completely on which IFFT bin I used. If I used bin 1, it would have only one cycle. If i used bin 2, it would have two cycles.

Also note that since the IFFT deals with INTEGER frequencies only, that means that the wave forms begin and end at the same phase (angle) and thus the same amplitude, which means that if you repeat them end to end, there will be no discontinuities or popping. Pretty cool huh?

If you instead put in the complex number “0 – 1i” into one of the IFFT bins, that represents an amplitude of 1.0 and a starting phase of 270 degrees (or -90 degrees), which results in a sine wave: We don’t have to stop there though. Once again thinking back to the info in DIY Synth 3: Sampling, Mixing, and Band Limited Wave Forms, the frequency components of a saw wave are described as:

If you have a saw wave of frequency 100, that means it contains a sine wave of frequency 100 (1 * fundamental frequency), another of frequency 200 (2 * fundamental frequency), another of 300 (3 * fundamental frequency) and so on into infinity.

The amplitude (volume) of each sine wave (harmonic) is 1 over the harmonic number. So in our example, the sine wave at frequency 100 has an amplitude of 1 (1/1). The sine wave at frequency 200 has an amplitude of 0.5 (1/2), the sine wave at frequency 300 has an amplitude of 0.333 (1/3) and so on into infinity.

After that you’ll need to multiply your sample by 2 / PI to get back to a normalized amplitude.

We can describe the same thing in IFFT frequency bins believe it or not!

Let’s say that we have 50 bins and that we want a 5hz saw wave. The first harmonic is 5hz and should be full amplitude, so we put an entry in bin 5 for amplitude 1.0 * 2/pi and phase -90 degrees (to make a sine wave instead of a cosine wave).

The next harmonic should be double the frequency, and 1/2 the amplitude, so in bin 10 (double the frequency of bin 5), we put an entry for amplitude 0.5 * 2/pi, phase -90 degrees. Next should be triple the original frequency at 1/3 the amplitude, so at bin 15 we put amplitude 0.33 * 2/pi, phase -90 degrees. Then, bin 20 gets amplitude 0.25 * 2/pi, -90 degrees phase. Bin 25 is the Nyquist frequency so we should stop here, and leave the actual Nyquist frequency empty.

If you run the IFFT on that, you’ll get a bandlimited saw wave! You can do the same for bandlimited triangle and square waves, and also you can use a random phase and amplitude for each bin to generate noise! The source code for this post generates those in fact (:

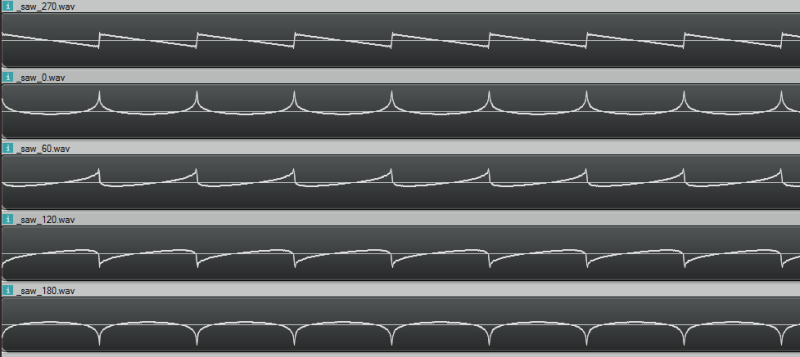

While we are dealing in frequency space, I want to run something kind of gnarly by you. Using the technique described above, you can add frequencies with specific amplitudes to make a band limited saw wave. But, believe it or not, the starting phase of the frequencies don’t have to be -90 degrees. If you use a different phase, you’ll get a resulting wave form that looks different but sounds the same. Check these out, it’s a trip! Here are the sound files pictured above, so you can hear that they really do all sound the same!
270 degrees
0 degrees
60 degrees
120 degrees
180 degrees

## Bins Changing Over Time

If you are like me, when you think about designing sound in the frequency domain you think everything must be rainbows and glitter, and that you have no limitations and everything is wonderful.

Well, as happens so many times when the rubber hits the road, that isn’t quite true. Let’s go through an example of using IFFT on some bins that change over time so I can show you a really big limitation with IFFT.

In our example, let’s say that we have a single frequency in our IFFT data (so we are generating a single sinusoid wave) but that we want it’s amplitude (volume) to change over time. Let’s say we want the amplitude of the wave to be controlled by another sinusoid, so that it smoothly goes up and down in amplitude over time.

We immediately hit two problems, but the first is more obvious if you listen:

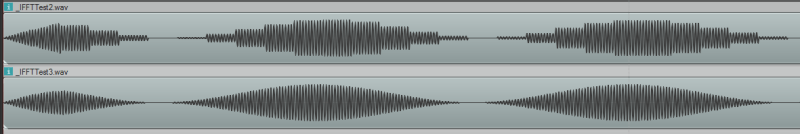

IFFTTest1.wav

Hear all that popping? It’s basically making a discontinuity at every IFFT window because we are changing the amplitude at the edge of each window. We can’t change it during the window (caveat: without some pretty advanced math i won’t go into), so changing at the end of the window is our only option. Check out this image to see the problem visually: We can fix those discontinuities. If we change the phase of the wave from cosine (0 degrees) to sine (270 degrees), we make it so that the edge of the window is always at amplitude 0 (sine(0) = 0, while cos(0) = 1!). This means that when we change the amplitude of the wave, since it happens when the wave is at zero, there is no discontinuity, and so no more pops: Let’s have a listen:
IFFTTest2.wav

WHAT?! There is still some periodic noise… it is tamed a little bit but not fixed. The reason for this is that even though we are first order continuous we aren’t 2nd order continuous (etc). So, by having a jump in amplitude, even constraining it at zero crossings, we’ve essentially added some frequencies into our resulting sound wave that we didn’t want to add, which we can hear in the results.

So yeah… basically, if you want to change your IFFT bins over time, you are going to have some audio artifacts from doing that. Boo hoo!

There are ways around this. One way involves complex math to add frequencies to your bins that make it APPEAR as if you are adjusting the amplitude of the wave smoothly over the duration of the window. Another way involves doing things like overlapping the output of your IFFT windows and blending between them. There are other ways too, including some IDFT algorithms which do allow you to alter the amplitude over time in a window, but are costlier to compute.

Anyways, you can also just generate the sound descibed in your IFFT bins with oscillators, literally adding together all the frequencies with the specified phase offsets to make the correct resulting time domain samples. I’ve done just that to solve the popping problem as well as the issue where you can’t have smooth volume adjustments because you can only change amplitude at the end of each window:

IFFTTest3.wav

You can also see it in action: Here’s another failure case to check out: ## Convolution

If you read the post about convolution reverb (DIY Synth: Convolution Reverb & 1D Discrete Convolution of Audio Samples), you’ll recall that convolution is super slow, but that convolution in the time domain is equivelant to multiplication in the frequency domain.

We are in the frequency domain, so how about we try some convolution?!

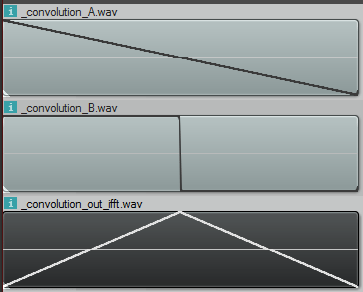

Let’s multiply the bins of a 1hz saw wave and a 1hz square wave and see what we get if we IFFT the result: That result is definitely not right. First of all, the convolution is the same length as the inputs, when it should be length(a)+length(b)-1 samples. Basically it should be twice as long as it is.

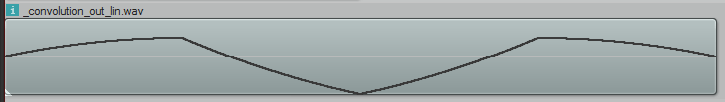

Secondly, that is not what the convolution looks like. Doing convolution in the time domain of those samples looks like this: So what’s the deal? Well as it turns out, when you do multiplication in the frequency domain, you are really doing CIRCULAR convolution, which is a bit different than the convolution i described before which is LINEAR convolution. Circular convolution is essentially used for cyclical data (or functions) and basically makes it so that if you try to read “out of bounds”, it will wrap around and use an in bounds value instead. It’s kind of like “texture wrap” if you are a graphics person.

Normally how this is gotten around, when doing convolution in the frequency domain, is to put a bunch of zeros on the end of your time domain samples before you bring them into the frequency domain. You pad them with those zeros to be the correct size (length(a)+length(b)-1, or longer is fine too) and then when you end up doing the “circular convolution”, there are no “out of bounds” values looked at, and you end up with the linear convolution output, even though you technically did circular convolution.

Unfortunately, since we are STARTING in frequency domain and have no time domain samples to bad before going into frequency domain, we are basically out of luck. I’ve tried asking DSP experts and nobody I talked to knows of a way to start in frequency domain and zero pad the time domain so that you could do a linear convolution – at least nobody knows of GENERAL case solution.

Those same experts though say that circular convolution isn’t a bad thing, and is many times exactly what you want to do, or is a fine stand in for linear convolution. I’m sure we’ll explore that in a future post (:

In the example code, i also have the code generate the circular convolution in the time domain so that you can confirm that circular convolution is really what is going on in the above image, when working in frequency domain.

## Strike Two IFFT!

Luckily using IDFT to generate sounds (sometimes called Fourier Synthesis) isn’t across the board a losing strategy. If you want a static, repeating wave form, it can be really nice. Or, for dynamic waave forms, if you change your amplitude only a very small amount across window samples, it won’t noticeably degrade the quality of your audio.

The neat thing about IFFT is that it’s a “constant time process”. When using oscillators, the more frequencies you want to appear, the more computationally expensive it gets. With IFFT, it doesn’t matter if all the bins are full or empty or somewhere inbetween, it has the same computational complexity.

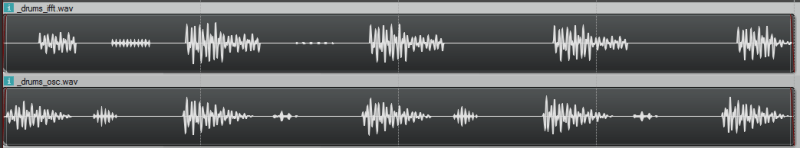

Here’s a non trivial sound generated both with IFFT and Oscillators. The difference is pretty negligible right?

## Sample Code

```#define _CRT_SECURE_NO_WARNINGS

#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include

#define _USE_MATH_DEFINES
#include

//=====================================================================================
// SNumeric - uses phantom types to enforce type safety
//=====================================================================================
template
struct SNumeric
{
public:
explicit SNumeric(const T &value) : m_value(value) { }
SNumeric() : m_value() { }
inline T& Value() { return m_value; }
inline const T& Value() const { return m_value; }

typedef SNumeric TType;
typedef T TInnerType;

// Math Operations
TType operator+ (const TType &b) const
{
return TType(this->Value() + b.Value());
}

TType operator- (const TType &b) const
{
return TType(this->Value() - b.Value());
}

TType operator* (const TType &b) const
{
return TType(this->Value() * b.Value());
}

TType operator/ (const TType &b) const
{
return TType(this->Value() / b.Value());
}

TType operator% (const TType &b) const
{
return TType(this->Value() % b.Value());
}

TType& operator+= (const TType &b)
{
Value() += b.Value();
return *this;
}

TType& operator-= (const TType &b)
{
Value() -= b.Value();
return *this;
}

TType& operator*= (const TType &b)
{
Value() *= b.Value();
return *this;
}

TType& operator/= (const TType &b)
{
Value() /= b.Value();
return *this;
}

TType& operator++ ()
{
Value()++;
return *this;
}

TType& operator-- ()
{
Value()--;
return *this;
}

// Extended Math Operations
template
T Divide(const TType &b)
{
return ((T)this->Value()) / ((T)b.Value());
}

// Logic Operations
bool operatorValue() < b.Value();
}
bool operatorValue()  (const TType &b) const {
return this->Value() > b.Value();
}
bool operator>= (const TType &b) const {
return this->Value() >= b.Value();
}
bool operator== (const TType &b) const {
return this->Value() == b.Value();
}
bool operator!= (const TType &b) const {
return this->Value() != b.Value();
}

private:
T m_value;
};

//=====================================================================================
// Typedefs
//=====================================================================================

typedef uint8_t uint8;
typedef uint16_t uint16;
typedef uint32_t uint32;
typedef int16_t int16;
typedef int32_t int32;

// type safe types!
typedef SNumeric        TFrequency;
typedef SNumeric           TFFTBin;
typedef SNumeric          TTimeMs;
typedef SNumeric            TTimeS;
typedef SNumeric         TSamples;
typedef SNumeric     TFractionalSamples;
typedef SNumeric         TDecibels;
typedef SNumeric        TAmplitude;
typedef SNumeric          TDegrees;

//=====================================================================================
// Constants
//=====================================================================================

static const float c_pi = (float)M_PI;
static const float c_twoPi = c_pi * 2.0f;

//=====================================================================================
// Structs
//=====================================================================================

struct SSoundSettings
{
TSamples        m_sampleRate;
TSamples        m_sampleCount;
};

//=====================================================================================
// Conversion Functions
//=====================================================================================

inline TFFTBin FrequencyToFFTBin(TFrequency frequency, TFFTBin numBins, TSamples sampleRate)
{
// bin = frequency * numBin / sampleRate
return TFFTBin((uint32)(frequency.Value() * (float)numBins.Value() / (float)sampleRate.Value()));
}

inline TFrequency FFTBinToFrequency(TFFTBin bin, TFFTBin numBins, TSamples sampleRate)
{
// frequency = bin * SampleRate / numBins
return TFrequency((float)bin.Value() * (float)sampleRate.Value() / (float)numBins.Value());
}

{
return TRadians(degrees.Value() * c_pi / 180.0f);
}

{
return TDegrees(radians.Value() * 180.0f / c_pi);
}

inline TDecibels AmplitudeToDB(TAmplitude volume)
{
return TDecibels(20.0f * log10(volume.Value()));
}

inline TAmplitude DBToAmplitude(TDecibels dB)
{
return TAmplitude(pow(10.0f, dB.Value() / 20.0f));
}

TTimeS SamplesToSeconds(const SSoundSettings &s, TSamples samples)
{
return TTimeS(samples.Divide(s.m_sampleRate));
}

TSamples SecondsToSamples(const SSoundSettings &s, TTimeS seconds)
{
return TSamples((int)(seconds.Value() * (float)s.m_sampleRate.Value()));
}

TSamples MilliSecondsToSamples(const SSoundSettings &s, TTimeMs milliseconds)
{
return SecondsToSamples(s, TTimeS((float)milliseconds.Value() / 1000.0f));
}

TTimeMs SecondsToMilliseconds(TTimeS seconds)
{
return TTimeMs((uint32)(seconds.Value() * 1000.0f));
}

TFrequency Frequency(float octave, float note)
{
/* frequency = 440×(2^(n/12))
Notes:
0  = A
1  = A#
2  = B
3  = C
4  = C#
5  = D
6  = D#
7  = E
8  = F
9  = F#
10 = G
11 = G# */
return TFrequency((float)(440 * pow(2.0, ((double)((octave - 4) * 12 + note)) / 12.0)));
}

template
T AmplitudeToAudioSample(const TAmplitude& in)
{
const T c_min = std::numeric_limits::min();
const T c_max = std::numeric_limits::max();
const float c_minFloat = (float)c_min;
const float c_maxFloat = (float)c_max;

float ret = in.Value() * c_maxFloat;

if (ret  c_maxFloat)
return c_max;

return (T)ret;
}

//=====================================================================================
// Audio Utils
//=====================================================================================

void EnvelopeSamples(std::vector& samples, TSamples envelopeTimeFrontBack)
{
const TSamples c_frontEnvelopeEnd(envelopeTimeFrontBack);
const TSamples c_backEnvelopeStart(samples.size() - envelopeTimeFrontBack.Value());

for (TSamples index(0), numSamples(samples.size()); index < numSamples; ++index)
{
// calculate envelope
TAmplitude envelope(1.0f);
if (index < c_frontEnvelopeEnd)
envelope = TAmplitude(index.Divide(envelopeTimeFrontBack));
else if (index > c_backEnvelopeStart)
envelope = TAmplitude(1.0f) - TAmplitude((index - c_backEnvelopeStart).Divide(envelopeTimeFrontBack));

// apply envelope
samples[index.Value()] *= envelope;
}
}

void NormalizeSamples(std::vector& samples, TAmplitude maxAmplitude)
{
// nothing to do if no samples
if (samples.size() == 0)
return;

// 1) find the largest absolute value in the samples.
TAmplitude largestAbsVal = TAmplitude(abs(samples.front().Value()));
std::for_each(samples.begin() + 1, samples.end(), [&largestAbsVal](const TAmplitude &a)
{
TAmplitude absVal = TAmplitude(abs(a.Value()));
if (absVal > largestAbsVal)
largestAbsVal = absVal;
}
);

// 2) adjust largestAbsVal so that when we divide all samples, none will be bigger than maxAmplitude
// if the value we are going to divide by is <= 0, bail out
largestAbsVal /= maxAmplitude;
if (largestAbsVal <= TAmplitude(0.0f))
return;

// 3) divide all numbers by the largest absolute value seen so all samples are [-maxAmplitude,+maxAmplitude]
for (TSamples index(0), numSamples(samples.size()); index < numSamples; ++index)
samples[index.Value()] = samples[index.Value()] / largestAbsVal;
}

//=====================================================================================
// Wave File Writing Code
//=====================================================================================
{
//the main chunk
unsigned char m_szChunkID;      //0
uint32        m_nChunkSize;        //4
unsigned char m_szFormat;       //8

//sub chunk 1 "fmt "
unsigned char m_szSubChunk1ID;  //12
uint32        m_nSubChunk1Size;    //16
uint16        m_nAudioFormat;      //18
uint16        m_nNumChannels;      //20
uint32        m_nSampleRate;       //24
uint32        m_nByteRate;         //28
uint16        m_nBlockAlign;       //30
uint16        m_nBitsPerSample;    //32

//sub chunk 2 "data"
unsigned char m_szSubChunk2ID;  //36
uint32        m_nSubChunk2Size;    //40

//then comes the data!
};

//this writes a wave file
template
bool WriteWaveFile(const char *fileName, const std::vector &samples, const SSoundSettings &sound)
{
//open the file if we can
FILE *file = fopen(fileName, "w+b");
if (!file)
return false;

//calculate bits per sample and the data size
const int32 bitsPerSample = sizeof(T) * 8;
const int dataSize = samples.size() * sizeof(T);

//fill out the main chunk

//fill out sub chunk 1 "fmt "
waveHeader.m_nByteRate = sound.m_sampleRate.Value() * 1 * bitsPerSample / 8;
waveHeader.m_nBlockAlign = 1 * bitsPerSample / 8;

//fill out sub chunk 2 "data"

//write the wave data itself, converting it from float to the type specified
std::vector outSamples;
outSamples.resize(samples.size());
for (size_t index = 0; index < samples.size(); ++index)
outSamples[index] = AmplitudeToAudioSample(samples[index]);
fwrite(&outSamples, dataSize, 1, file);

//close the file and return success
fclose(file);
return true;
}

//=====================================================================================
// FFT / IFFT
//=====================================================================================

// Thanks RosettaCode.org!
// http://rosettacode.org/wiki/Fast_Fourier_transform#C.2B.2B
// In production you'd probably want a non recursive algorithm, but this works fine for us

// for use with FFT and IFFT
typedef std::complex Complex;
typedef std::valarray CArray;

// Cooley–Tukey FFT (in-place)
void fft(CArray& x)
{
const size_t N = x.size();
if (N <= 1) return;

// divide
CArray even = x[std::slice(0, N/2, 2)];
CArray  odd = x[std::slice(1, N/2, 2)];

// conquer
fft(even);
fft(odd);

// combine
for (size_t k = 0; k < N/2; ++k)
{
Complex t = std::polar(1.0f, -2 * c_pi * k / N) * odd[k];
x[k    ] = even[k] + t;
x[k+N/2] = even[k] - t;
}
}

// inverse fft (in-place)
void ifft(CArray& x)
{
// conjugate the complex numbers
x = x.apply(std::conj);

// forward fft
fft( x );

// conjugate the complex numbers again
x = x.apply(std::conj);

// scale the numbers
x /= (float)x.size();
}

//=====================================================================================
// Wave forms
//=====================================================================================

void SineWave(CArray &frequencies, TFFTBin bin, TRadians startingPhase)
{
// set up the single harmonic
frequencies[bin.Value()] = std::polar(1.0f, startingPhase.Value());
}

void SawWave(CArray &frequencies, TFFTBin bin, TRadians startingPhase)
{
// set up each harmonic
const float volumeAdjustment = 2.0f / c_pi;
const size_t bucketWalk = bin.Value();
for (size_t harmonic = 1, bucket = bin.Value(); bucket < frequencies.size() / 2; ++harmonic, bucket += bucketWalk)
frequencies[bucket] = std::polar(volumeAdjustment / (float)harmonic, startingPhase.Value());
}

void SquareWave(CArray &frequencies, TFFTBin bin, TRadians startingPhase)
{
// set up each harmonic
const float volumeAdjustment = 4.0f / c_pi;
const size_t bucketWalk = bin.Value() * 2;
for (size_t harmonic = 1, bucket = bin.Value(); bucket < frequencies.size() / 2; harmonic += 2, bucket += bucketWalk)
frequencies[bucket] = std::polar(volumeAdjustment / (float)harmonic, startingPhase.Value());
}

void TriangleWave(CArray &frequencies, TFFTBin bin, TRadians startingPhase)
{
// set up each harmonic
const float volumeAdjustment = 8.0f / (c_pi*c_pi);
const size_t bucketWalk = bin.Value() * 2;
for (size_t harmonic = 1, bucket = bin.Value(); bucket < frequencies.size() / 2; harmonic += 2, bucket += bucketWalk, startingPhase *= TRadians(-1.0f))
frequencies[bucket] = std::polar(volumeAdjustment / ((float)harmonic*(float)harmonic), startingPhase.Value());
}

void NoiseWave(CArray &frequencies, TFFTBin bin, TRadians startingPhase)
{
// give a random amplitude and phase to each frequency
for (size_t bucket = 0; bucket < frequencies.size() / 2; ++bucket)
{
float amplitude = static_cast  (rand()) / static_cast  (RAND_MAX);
float phase = 2.0f * c_pi * static_cast  (rand()) / static_cast  (RAND_MAX);
frequencies[bucket] = std::polar(amplitude, phase);
}
}

//=====================================================================================
// Tests
//=====================================================================================

template
void ConsantBins(
const W &waveForm,
TFrequency &frequency,
bool repeat,
const char *fileName,
bool normalize,
TAmplitude multiplier,
)
{
const TFFTBin c_numBins(4096);

//our desired sound parameters
SSoundSettings sound;
sound.m_sampleRate = TSamples(44100);
sound.m_sampleCount = MilliSecondsToSamples(sound, TTimeMs(500));

// allocate space for the output file and initialize it
std::vector samples;
samples.resize(sound.m_sampleCount.Value());
std::fill(samples.begin(), samples.end(), TAmplitude(0.0f));

// make test data
CArray data(c_numBins.Value());
waveForm(data, FrequencyToFFTBin(frequency, c_numBins, sound.m_sampleRate), startingPhase);

// inverse fft - convert from frequency domain (frequencies) to time domain (samples)
// need to scale up amplitude before fft
data *= (float)data.size();
ifft(data);

// convert to samples
if (repeat)
{
//repeat results in the output buffer
size_t dataSize = data.size();
for (size_t i = 0; i < samples.size(); ++i)
samples[i] = TAmplitude((float)data[i%dataSize].real());
}
else
{
//put results in the output buffer once.  Useful for debugging / visualization
for (size_t i = 0; i < samples.size() && i < data.size(); ++i)
samples[i] = TAmplitude((float)data[i].real());
}

// normalize our samples if we should
if (normalize)
NormalizeSamples(samples, DBToAmplitude(TDecibels(-3.0f)));

// apply the multiplier passed in
std::for_each(samples.begin(), samples.end(), [&](TAmplitude& amplitude) {
amplitude *= multiplier;
});

// write the wave file
WriteWaveFile(fileName, samples, sound);
}

void Convolve_Circular(const std::vector& a, const std::vector& b, std::vector& result)
{
// NOTE: Written for readability, not efficiency
TSamples ASize(a.size());
TSamples BSize(b.size());

// NOTE: the circular convolution result doesn't have to be the size of a, i just chose this size to match the ifft
// circular convolution output.
result.resize(ASize.Value());
std::fill(result.begin(), result.end(), TAmplitude(0.0f));

for (TSamples outputSampleIndex(0), numOutputSamples(ASize); outputSampleIndex < numOutputSamples; ++outputSampleIndex)
{
TAmplitude &outputSample = result[outputSampleIndex.Value()];
for (TSamples sampleIndex(0), numSamples(ASize); sampleIndex < numSamples; ++sampleIndex)
{
TSamples BIndex = (outputSampleIndex + ASize - sampleIndex) % ASize;
if (BIndex < BSize)
{
const TAmplitude &ASample = a[sampleIndex.Value()];
const TAmplitude &BSample = b[BIndex.Value()];
outputSample += BSample * ASample;
}
}
}
}

void Convolve_Linear(const std::vector& a, const std::vector& b, std::vector& result)
{
// NOTE: Written for readability, not efficiency
TSamples ASize(a.size());
TSamples BSize(b.size());

result.resize(ASize.Value() + BSize.Value() - 1);
std::fill(result.begin(), result.end(), TAmplitude(0.0f));

for (TSamples outputSampleIndex(0), numOutputSamples(result.size()); outputSampleIndex < numOutputSamples; ++outputSampleIndex)
{
TAmplitude &outputSample = result[outputSampleIndex.Value()];
for (TSamples sampleIndex(0), numSamples(ASize); sampleIndex = sampleIndex)
{
TSamples BIndex = outputSampleIndex - sampleIndex;
if (BIndex < BSize)
{
const TAmplitude &ASample = a[sampleIndex.Value()];
const TAmplitude &BSample = b[BIndex.Value()];
outputSample += BSample * ASample;
}
}
}
}
}

template
void DoConvolution(const W1 &waveForm1, const W2 &waveForm2)
{
const TFFTBin c_numBins(4096);

//our desired sound parameters
SSoundSettings sound;
sound.m_sampleRate = TSamples(44100);
sound.m_sampleCount = TSamples(c_numBins.Value());

// make the frequency data for wave form 1
CArray data1(c_numBins.Value());

// make the frequency data for wave form 2
CArray data2(c_numBins.Value());

// do circular convolution in time domain by doing multiplication in the frequency domain
CArray data3(c_numBins.Value());
data3 = data1 * data2;

// write out the first convolution input (in time domain samples)
std::vector samples1;
samples1.resize(sound.m_sampleCount.Value());
std::fill(samples1.begin(), samples1.end(), TAmplitude(0.0f));
{
data1 *= (float)data1.size();
ifft(data1);

// convert to samples
for (size_t i = 0; i < samples1.size() && i < data1.size(); ++i)
samples1[i] = TAmplitude((float)data1[i].real());

// write the wave file
WriteWaveFile("_convolution_A.wav", samples1, sound);
}

// write out the second convolution input (in time domain samples)
std::vector samples2;
samples2.resize(sound.m_sampleCount.Value());
std::fill(samples2.begin(), samples2.end(), TAmplitude(0.0f));
{
data2 *= (float)data2.size();
ifft(data2);

// convert to samples
for (size_t i = 0; i < samples2.size() && i < data2.size(); ++i)
samples2[i] = TAmplitude((float)data2[i].real());

// write the wave file
WriteWaveFile("_convolution_B.wav", samples2, sound);
}

// write the result of the convolution (in time domain samples)
{
data3 *= (float)data3.size();
ifft(data3);

// convert to samples
std::vector samples3;
samples3.resize(sound.m_sampleCount.Value());
for (size_t i = 0; i < samples3.size() && i < data3.size(); ++i)
samples3[i] = TAmplitude((float)data3[i].real());

// write the wave file
NormalizeSamples(samples3, TAmplitude(1.0f));
WriteWaveFile("_convolution_out_ifft.wav", samples3, sound);
}

// do linear convolution in the time domain and write out the wave file
{
std::vector samples4;
Convolve_Linear(samples1, samples2, samples4);
NormalizeSamples(samples4, TAmplitude(1.0f));
WriteWaveFile("_convolution_out_lin.wav", samples4, sound);
}

// do circular convolution in time domain and write out the wave file
{
std::vector samples4;
Convolve_Circular(samples1, samples2, samples4);
NormalizeSamples(samples4, TAmplitude(1.0f));
WriteWaveFile("_convolution_out_cir.wav", samples4, sound);
}
}

//=====================================================================================
// Frequency Over Time Track Structs
//=====================================================================================

struct SBinTrack
{
SBinTrack() { }

SBinTrack(
TFFTBin bin,
std::function amplitudeFunction,
)
: m_bin(bin)
, m_amplitudeFunction(amplitudeFunction)
, m_phase(phase) {}

TFFTBin                                     m_bin;
std::function   m_amplitudeFunction;
};

//=====================================================================================
// Frequency Amplitude Over Time Test
//=====================================================================================

void TracksToSamples_IFFT_Window(const std::vector &tracks, CArray &windowData, TTimeS time, TTimeS totalTime)
{
// clear out the window data
windowData = Complex(0.0f, 0.0f);

// gather the bin data
std::for_each(tracks.begin(), tracks.end(), [&](const SBinTrack &track) {
windowData[track.m_bin.Value()] = std::polar(track.m_amplitudeFunction(time, totalTime).Value(), track.m_phase.Value());
});

// convert it to time samples
windowData *= (float)windowData.size();
ifft(windowData);
}

void TracksToSamples_IFFT(const std::vector &tracks, std::vector &samples, TTimeS totalTime, TFFTBin numBins)
{
// convert the tracks to samples, one window of numBins at a time
CArray windowData(numBins.Value());
for (TSamples startSample(0), numSamples(samples.size()); startSample < numSamples; startSample += TSamples(numBins.Value()))
{
// Convert the tracks that we can into time samples using ifft
float percent = startSample.Divide(numSamples);
TTimeS time(totalTime.Value() * percent);
TracksToSamples_IFFT_Window(tracks, windowData, time, totalTime);

// convert window data to samples
const size_t numWindowSamples = std::min(numBins.Value(), (numSamples - startSample).Value());
for (size_t i = 0; i < numWindowSamples; ++i)
samples[startSample.Value() + i] = TAmplitude((float)windowData[i].real());
}
}

void TracksToSamples_Oscilators(const std::vector &tracks, std::vector &samples, TTimeS totalTime, TFFTBin numBins)
{
// Render each time/amplitude track in each frequency bin to actual cosine samples
float samplesPerSecond = (float)samples.size() / totalTime.Value();
float ratio = samplesPerSecond / (float)numBins.Value();
for (size_t i = 0, c = samples.size(); i < c; ++i)
{
float percent = (float)i / (float)c;
TTimeS time(totalTime.Value() * percent);
samples[i].Value() = 0.0f;
std::for_each(tracks.begin(), tracks.end(),
[&](const SBinTrack &track)
{
TAmplitude amplitude = track.m_amplitudeFunction(time, totalTime);
samples[i] += TAmplitude(cos(time.Value()*c_twoPi*ratio*(float)track.m_bin.Value() + track.m_phase.Value())) * amplitude;
}
);
}
}

{
TTimeS m_time;
TAmplitude m_amplitude;
};

{
// if no faid pairs, 0 amplitude always
{
return [](TTimeS time, TTimeS totalTime) -> TAmplitude
{
return TAmplitude(0.0f);
};
}

// otherwise, use the fade info to make an amplitude over time track
// NOTE: assume amplitude 0 at time 0 and totalTime
return [fadePairs](TTimeS time, TTimeS totalTime) -> TAmplitude
{

for (size_t i = 0; i < fadePairs.size(); ++i)
{
{
}
}
if (time < totalTime)
{
}

return TAmplitude(0.0f);
};
}

void DynamicBins(TFFTBin numBins, const std::vector& tracks, const char *fileNameFFT, const char * fileNameOsc)
{
//our desired sound parameters
SSoundSettings sound;
sound.m_sampleRate = TSamples(44100);
sound.m_sampleCount = MilliSecondsToSamples(sound, TTimeMs(2000));

// allocate space for the output file and initialize it
std::vector samples;
samples.resize(sound.m_sampleCount.Value());
std::fill(samples.begin(), samples.end(), TAmplitude(0.0f));

const TTimeS totalTime = SamplesToSeconds(sound, sound.m_sampleCount);

// convert our frequency over time descriptions to time domain samples using IFFT
if (fileNameFFT)
{
TracksToSamples_IFFT(tracks, samples, totalTime, numBins);
NormalizeSamples(samples, DBToAmplitude(TDecibels(-3.0f)));
EnvelopeSamples(samples, MilliSecondsToSamples(sound, TTimeMs(50)));
WriteWaveFile(fileNameFFT, samples, sound);
}

// convert our frequency over time descriptions to time domain samples using Oscillators
if (fileNameOsc)
{
TracksToSamples_Oscilators(tracks, samples, totalTime, numBins);
NormalizeSamples(samples, DBToAmplitude(TDecibels(-3.0f)));
EnvelopeSamples(samples, MilliSecondsToSamples(sound, TTimeMs(50)));
WriteWaveFile(fileNameOsc, samples, sound);
}
}

//=====================================================================================
// Main
//=====================================================================================
int main(int argc, char **argv)
{
// make some basic wave forms with IFFT
ConsantBins(NoiseWave, Frequency(3, 8), true, "_noise.wav", true, TAmplitude(1.0f));
ConsantBins(SquareWave, Frequency(3, 8), true, "_square.wav", true, TAmplitude(1.0f));
ConsantBins(TriangleWave, Frequency(3, 8), true, "_triangle.wav", true, TAmplitude(1.0f));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw.wav", true, TAmplitude(1.0f));
ConsantBins(SineWave, Frequency(3, 8), true, "_cosine.wav", true, TAmplitude(1.0f), TRadians(0.0f));
ConsantBins(SineWave, Frequency(3, 8), true, "_sine.wav", true, TAmplitude(1.0f));

// show saw wave phase shifted.  Looks different but sounds the same!
// You can do the same with square, saw, triangle (and other more complex wave forms)
// We take the saw waves down 12 db though because some variations have large peaks so would clip otherwise.
// we don't normalize because we want you to hear them all at the same loudness to tell that they really do sound the same.
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_0.wav"  , false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(0.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_15.wav" , false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(15.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_30.wav" , false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(30.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_45.wav" , false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(45.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_60.wav" , false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(60.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_75.wav" , false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(75.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_90.wav" , false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(90.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_105.wav", false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(105.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_120.wav", false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(120.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_135.wav", false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(135.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_150.wav", false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(150.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_165.wav", false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(165.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_180.wav", false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(180.0f)));
ConsantBins(SawWave, Frequency(3, 8), true, "_saw_270.wav", false, DBToAmplitude(TDecibels(-12.0f)), DegreesToRadians(TDegrees(270.0f)));

// show how IFFT can have popping at window edges
{
std::vector tracks;
tracks.emplace_back(SBinTrack(TFFTBin(10), [](TTimeS time, TTimeS totalTime) -> TAmplitude
{
return TAmplitude(cos(time.Value()*c_twoPi*4.0f) * 0.5f + 0.5f);
}));

// make a version that starts at a phase of 0 degrees and has popping at the
// edges of each IFFT window
DynamicBins(TFFTBin(1024), tracks, "_IFFTTest1.wav", nullptr);

// make a version that starts at a phase of 270 degrees and is smooth at the
// edges of each IFFT window but can only change amplitude at the edges of
// each window.
DynamicBins(TFFTBin(1024), tracks, "_IFFTTest2.wav", nullptr);

// make a version with oscillators and additive synthesis which has no
// popping and can also change amplitude anywhere in the wave form.
DynamicBins(TFFTBin(1024), tracks, nullptr, "_IFFTTest3.wav");
}

// make an alien sound using both IFFT and oscillators (additive synthesis)
{
std::vector tracks;
tracks.emplace_back(SBinTrack(TFFTBin(1), MakeFadeFunction({ { TTimeS(0.5f), TAmplitude(1.0f) }, { TTimeS(1.0f), TAmplitude(0.5f) } })));
tracks.emplace_back(SBinTrack(TFFTBin(2), MakeFadeFunction({ { TTimeS(1.0f), TAmplitude(1.0f) } })));
tracks.emplace_back(SBinTrack(TFFTBin(3), MakeFadeFunction({ { TTimeS(1.5f), TAmplitude(1.0f) } })));
tracks.emplace_back(SBinTrack(TFFTBin(5), MakeFadeFunction({ { TTimeS(1.25f), TAmplitude(1.0f) } })));
tracks.emplace_back(SBinTrack(TFFTBin(10), [](TTimeS time, TTimeS totalTime) -> TAmplitude
{
float value = (cos(time.Value()*c_twoPi*4.0f) * 0.5f + 0.5f) * 0.5f;
if (time < totalTime * TTimeS(0.5f))
value *= (time / (totalTime*TTimeS(0.5f))).Value();
else
value *= 1.0f - ((time - totalTime*TTimeS(0.5f)) / (totalTime*TTimeS(0.5f))).Value();
return TAmplitude(value);
}));
DynamicBins(TFFTBin(1024), tracks, "_alien_ifft.wav", "_alien_osc.wav");
}

// Make some drum beats
{
// frequency = bin * SampleRate / numBins
// frequency = bin * 44100 / 4096
// frequency ~= bin * 10.75
// up to 22050hz at bin 2048

TFFTBin c_numBins(4096);
TSamples c_sampleRate(44100);

std::vector tracks;

const TTimeS timeMultiplier(1.1f);

// base drum: 100-200hz every half second
{
const TFFTBin start(FrequencyToFFTBin(TFrequency(100.0f), c_numBins, c_sampleRate));
const TFFTBin end(FrequencyToFFTBin(TFrequency(200.0f), c_numBins, c_sampleRate));
const TFFTBin step(5);

auto beat = [&](TTimeS time, TTimeS totalTime)->TAmplitude
{
time *= timeMultiplier;
time = TTimeS(std::fmod(time.Value(), 0.5f));
const TTimeS attack(0.01f);
const TTimeS release(TTimeS(0.2f) - attack);
const TTimeS totalBeatTime(attack + release);

TAmplitude ret;
if (time < attack)
ret = TAmplitude(time.Divide(attack));
else if (time < totalBeatTime)
ret = TAmplitude(1.0f) - TAmplitude((time - attack).Divide(release));
else
ret = TAmplitude(0.0f);
return ret * TAmplitude(10.0f);
};
for (TFFTBin i = start; i TAmplitude
{
time *= timeMultiplier;
time = TTimeS(std::fmod(time.Value() + 0.25f, 1.0f));
const TTimeS attack(0.025f);
const TTimeS release(TTimeS(0.075f) - attack);
const TTimeS totalBeatTime(attack + release);

TAmplitude ret;
if (time < attack)
ret = TAmplitude(time.Divide(attack));
else if (time < totalBeatTime)
ret = TAmplitude(1.0f) - TAmplitude((time - attack).Divide(release));
else
ret = TAmplitude(0.0f);
return ret;
};
for (TFFTBin i = start; i TAmplitude
{
time *= timeMultiplier;
time = TTimeS(std::fmod(time.Value() + 0.75f, 1.0f));
const TTimeS attack(0.025f);
const TTimeS release(TTimeS(0.075f) - attack);
const TTimeS totalBeatTime(attack + release);

TAmplitude ret;
if (time < attack)
ret = TAmplitude(time.Divide(attack));
else if (time < totalBeatTime)
ret = TAmplitude(1.0f) - TAmplitude((time - attack).Divide(release));
else
ret = TAmplitude(0.0f);
return ret;
};
for (TFFTBin i = start; i <= end; i += step)
tracks.emplace_back(SBinTrack(i, beat));
}

// render the result with both ifft and oscillators
DynamicBins(c_numBins, tracks, "_drums_ifft.wav", "_drums_osc.wav");
}

// do our convolution tests
DoConvolution(SawWave, SquareWave);

return 0;
}
```

So, frequency domain audio synthesis with IFFT is kind of a mixed bag. It can be good so long as you are ok with it’s limitations, but if you aren’t, it’s better to stick to oscillators and do additive synthesis.

Working in the frequency domain in general is pretty cool though. If you bust out a spectrograph and analyze the frequency of a type of sound, once you understand the frequency domain makeup of that sound, you can go back and synthesize it yourself using either oscillators or IFFT. You can go down this route to make your own synth guitar sound, or trumpet, or you could try to mimic sound effects. The world is your oyster! Well, almost… things like “voice synthesis” are actually pretty complex, and this method for matching musical instruments will only get you so far. More to come in future posts!

Here are some links to dive a bit deeper into this stuff:

I think I might be burned out on audio for a while, my thoughts are turning towards graphics so look for some graphics posts soon 😛

# Decibels (dB) and Amplitude

If you are a programmer, chances are that when you think of volume or volume adjustments of audio signals (or other streams of data), you are thinking in terms of amplitude.

For instance, to make an audio stream quieter, you are probably going to multiply all the samples by 0.5 to bring it down in volume. That 0.5 is a scalar value in amplitude space.

If you work with musicians or other audio folk, chances are they are not going to think in amplitude, may not be able to easily adjust to thinking in amplitude, and instead will talk to you in terms of decibels or dB, which is as foreign to you as amplitude is to them.

The main issue is that our ears do not hear linear adjustments in amplitude as linear adjustments in loudness, but linear adjustments in dB do sound like they are linear adjustments in loudness.

dB is a bit easier to understand as well. 0dB means full volume and positive numbers means a boost in volume, while negative numbers mean a decrease in volume.

dB combines linearly, unlike amplitudes which have to multiply together. -6db means that the volume has been cut in half, and -12db means that it has been cut in half again (so is 1/4 as loud) and -18db means that it has been cut in half yet again (now 1/8 as loud). Doing the same with amplitude, 0.5 means that the volume is cut in half, and then you multiply that by 0.5 to get 0.25 to make it 1/4 as loud, and multiply again to get 0.125 which is 1/8 as loud.

A fun byproduct of this is that using dB you can never describe zero (silence) exactly. People will usually adopt a convention of saying that below -60dB is silence, or below -96dB is silence. This has a nice side benefit that you can make the cutoff point of “assumed silence” be above the level that floating point denormals are (very small numbers that need special processing and are slower to work with than regular floating point numbers), so that in effect you can use this to remove denormals from your processing, which can boost the performance of your code.

## Conversion Functions

To convert from amplitude to dB, the formula is:

`dB = 20 * log10(amplitude)`

To convert from dB to amplitude, the formula is:

`amplitude = 10^(db/20)`

Note that when converting audio samples to dB, you want to take the absolute value of the audio sample, since sign doesn’t matter for loudness. -1 and +1 have the same loudness (0dB).

Here’s some c++ code which does those two operations:

```inline float AmplitudeTodB(float amplitude)
{
return 20.0f * log10(amplitude);
}

inline float dBToAmplitude(float dB)
{
return pow(10.0f, db/20.0f);
}
```

## Conversion Table

Here are some dB values and corresponding amplitude values to help you better understand how dB and amplitude are related.

Decreasing Volume:

 dB Amplitude -1 0.891 -3 0.708 -6 0.501 -12 0.251 -18 0.126 -20 0.1 -40 0.01 -60 0.001 -96 0.00002

Increasing Volume:

 dB Amplitude 1 1.122 3 1.413 6 1.995 12 3.981 18 7.943 20 10 40 100 60 1000 96 63095.734

## Next Up

I’m just about finished doing the research for a fourier synthesis post to show how to use the inverse fourier transform to turn frequency information into audio samples. Look for that in the next couple days!
