# Quantum Computing For Programmers Part 2: Multiple Qubits

In part 1 (Quantum Computing For Programmers Part I: One Qubit) we looked at the basics of quantum computing and how to deal with a single qubit. Here we’ll talk about the interesting things that happen when you involve multiple qubits!

## Multiple Qubit Probabilities & Possibilities

In the last post we used the analogy of a coin to describe a qubit. The coin can be either heads or tails, or flipping in the air, waiting to become either a heads or tails when it lands. The same is true of how a qubit works, where it can either be a 0 or a 1 or some superposition of both, only deciding which it is when observed. Furthermore, just like a real coin, there can be a bias towards becoming one value or the other.

We represented a coin by having a probability for each possible state (heads or tails), but represented a qubit by having an AMPLITUDE for each possible state (0 or 1), where you square an amplitude to get the probability.

Going back to the coin analogy, how would probabilities work if we had two coins?

The four possible outcomes with two coins are:
Tails/Tails

Each coin individually could either be sitting on the table heads or tails, or up in the air, waiting to become either a heads or a tails, with some probability of becoming a heads or a tails.

To figure out the probability of each possible outcome, you just multiply the probability of each coin’s outcome together.

For instance, let’s say that the first coin (coin A) is already sitting on the table as a heads, and the second coin (coin B) is flipping in the air, with a 1/3 chance of becoming heads and a 2/3 chance of becoming tails. Here is how you would calculate the probability of each possible state:

$\begin{array}{c|c|c|c} \text{Outcome A/B} & \text{Coin A Probability} & \text{Coin B Probability} & \text{Outcome Probability (A*B)}\\ \hline heads / heads & 100\% & 33\% & 33\% \\ heads / tails & 100\% & 67\% & 67\% \\ tails / heads & 0\% & 33\% & 0\% \\ tails / tails & 0\% & 67\% & 0\% \\ \end{array}$

Qubits actually work the same way! Using the same values as the coins, let’s say qubit A is a 0, and qubit B has a 1/3 chance of becoming a 0, and a 2/3 chance of becoming a 1. Converting those probabilities to amplitudes you could get $A=[1,0], B=[\frac{1}{\sqrt{3}}, \frac{\sqrt{2}}{\sqrt{3}}]$.

$\begin{array}{c|c|c|c|c} \text{Outcome AB} & \text{Qubit A Amplitude} & \text{Qubit B Amplitude} & \text{Outcome Amplitude(A*B)} & \text{Outcome Probability}\\ \hline 00 & 1 & 1/\sqrt{3} & 1/\sqrt{3} & 33\% \\ 01 & 1 & \sqrt{2}/\sqrt{3} & \sqrt{2}/\sqrt{3} & 67\% \\ 10 & 0 & 1/\sqrt{3} & 0 & 0\%\\ 11 & 0 & \sqrt{2}/\sqrt{3} & 0 & 0\% \\ \end{array}$

Note that in both cases, the probabilities add up to 100% like you’d expect.

In the case of qubits, the resulting vector is $[\frac{1}{\sqrt{3}}, \frac{\sqrt{2}}{\sqrt{3}}, 0, 0]$, which is still normalized, and represents the amplitudes for the 4 possible states of those two qubits: 00, 01, 10 and 11.

When working with one qubit (or coin), there are 2 possible outcomes 0 or 1 (heads or tails). When working with two qubits (or coins), there are four possible outcomes 00, 01, 10, 11 (heads/heads, heads/tails, tails/heads, tails/tails). When working with three qubits or coins, there are eight possible outcomes: 000,001,010 … 111.

With both coins and qubits there are $2^N$ possibilities, where $N$ is the number of qubits or coins you have.

If you had 8 qubits, you’d have to use a 256 dimensional vector to describe the possibilities, since $2^8$ is 256. When performing quantum computing with 8 qubits, you only have to deal with the 8 qubits. When simulating quantum computing on a regular, classical computer, you have to deal with the 256 amplitudes. This kind of gives a glimpse at how quantum computers can be faster than regular computers at certain things. There is an economy of scale working against us on regular computers simulating quantum computing.

The method we used to combine the probabilities of single qubits into an amplitude vector representing multiple qubits is called the Kronecker product. That’s just a fancy way of saying we have to multiply everything from the first vector by everything from the second vector, to get a third vector that is bigger than the first two. You’ll see it represented like this: $A \otimes B$ and while it’s similar to the “outer product” and even uses the same symbol (!), it gives a slightly different result versus if you did an outer product and then vectorized the matrix.

The Kronecker product of vectors works like this:

$\begin{bmatrix} A_1 \\ A_2 \\ ... \\ A_M \\ \end{bmatrix} \otimes \begin{bmatrix} B_1 \\ B_2 \\ ... \\ B_N \\ \end{bmatrix} = \begin{bmatrix} A_1 B_1 \\ A_1 B_2 \\ ... \\ A_1 B_N \\ A_2 B_1 \\ A_2 B_2 \\ ... \\ A_2 B_N \\ ... \\ A_M B_1 \\ A_M B_2 \\ ... \\ A_M B_N \\ \end{bmatrix}$

Let’s show an example involving two qubits.

The first qubit has a 75% chance of being heads so it’s amplitude is $[\sqrt{3}/2,1/2]$. The second qubit has a 2/3 chance of being heads so has an amplitude of $[\sqrt{2}/\sqrt{3}, 1/\sqrt{3}]$.

To calculate the amplitude vector representing these two qubits, we do a kronecker product:
$\begin{bmatrix} \cfrac{\sqrt{3}}{2} \\ \cfrac{1}{2} \\ \end{bmatrix} \otimes \begin{bmatrix} \cfrac{\sqrt{2}}{\sqrt{3}} \\ \cfrac{1}{\sqrt{3}} \\ \end{bmatrix} = \begin{bmatrix} \cfrac{\sqrt{3}}{2}\cfrac{\sqrt{2}}{\sqrt{3}} \\ \cfrac{\sqrt{3}}{2}\cfrac{1}{\sqrt{3}} \\ \cfrac{1}{2}\cfrac{\sqrt{2}}{\sqrt{3}} \\ \cfrac{1}{2}\cfrac{1}{\sqrt{3}} \\ \end{bmatrix}$

If you simplify that, you get:
$\begin{bmatrix} \cfrac{1}{\sqrt{2}} \\ \cfrac{1}{2} \\ \cfrac{1}{\sqrt{6}} \\ \cfrac{1}{2\sqrt{3}} \\ \end{bmatrix}$

$\begin{bmatrix} \cfrac{1}{\sqrt{2}} & \cfrac{1}{2} & \cfrac{1}{\sqrt{6}} & \cfrac{1}{2\sqrt{3}} & \end{bmatrix}$

Squaring those values to get the probabilities of each state, we get the below, which you might notice adds up to 100%, meaning the vector is still normalized!
$\begin{bmatrix} 50\% & 25\% & 17\% & 8\% \end{bmatrix}$

This generalizes for larger numbers of qubits, so you could use the Kronecker product to combine a vector describing 4 qubits with a vector describing 3 qubits, to come up with a vector that describes 7 qubits (which would have 128 amplitudes in it, since 2^7 = 128!).

The kronecker product also generalizes to matrices, which we will talk about shortly.

To be able to work with multiple qubits in a quantum circuit, you need to represent all qubits involved in a single vector. Doing this, while being the correct thing to do, also allows entanglement to happen, which we will talk about next!

## Entanglement – Simpler Than You Might Think!

Time to demystify quantum entanglement!

Quantum entanglement is the property whereby two qubits – which can be separated by any distance, such as several light years – can be observed and come up with the same value (0 or 1). Whether they are 0s or 1s is random, but they will both agree, when entangled in the way that causes them to agree (you could alternately entangle them to always disagree).

Interestingly, in 1965 John Bell proved that the mechanism that makes this happen is NOT that the qubits share information in advance. You can read more about that here – it’s near the end: Ars Technica – A tale of two qubits: how quantum computers work.

A common misconception is that this means that we can have faster than light (instantaneous) communication across any distance. That turns out not to be true, due to the No-Communication-Theorem (Wikipedia).

Interestingly though, you can use separated entangled qubits in separated quantum circuits to do something called Quantum Pseudo Telepathy (Wikipedia), which lets you do some things that would otherwise be impossible – like reliably winning a specially designed game that would otherwise be a game of chance.

I don’t yet understand enough about Quantum Pseudo Telepathy to see why it isn’t considered communication. I also have no idea how entanglement is actually “implemented” in the universe, but nobody seems to (or if they do, they aren’t sharing!). How can it be that two coins flipped on opposite sides of the galaxy can be guaranteed to both land with the same side facing up?

Despite those mysteries, the math is DEAD SIMPLE, so let me share it with you, it’ll take like one short paragraph. Are you ready?

Quantum computing works by manipulating the probabilities of the states of qubits. If you have two qubits, there are four possible sets of values when you observe them: 00, 01, 10, 11. If you use quantum computing to set the probabilities of the 01 and 10 states to a 0% chance, and set the probabilities of the 00 and 11 states to a 50% chance each, you’ve now entangled the qubits such that when you observe them, they will always agree, because you’ve gotten rid of the chances that they could ever DISAGREE. Similarly, if instead of setting the 01 and 10 states to 0%, you set the probability of the 00 and 11 states to 0%, you’d have entangled qubits which would always disagree when you observed them, because you’ve gotten rid of the chances that they could ever AGREE.

That’s all there is to it. Strange how simple it is, isn’t it? The table below shows how the only possible outcomes are that the qubits agree, but it is a 50/50 chance whether they are a 0 or a 1:

$\begin{array}{c|c|c} \text{Outcome} & \text{Amplitude} & \text{Probability}\\ \hline 00 & 1/\sqrt{2} & 50\% \\ 01 & 0 & 0\% \\ 10 & 0 & 0\% \\ 11 & 1/\sqrt{2} & 50\% \\ \end{array}$

Entanglement isn’t limited to just two qubits, you can entangle any number of qubits together.

Entanglement has a special mathematical meaning. If you can represent a state of a group of qubits by a kronecker product, they are not entangled. If you CAN’T represent a state of a group of qubits by a kronecker product, they ARE entangled. These two things – entanglement and lack of kronecker product factorability (made that term up) – are the same thing.

As an example, what two vectors could you use the kronecker product on to get the entangled two qubit state $1/\sqrt{2}(|00\rangle+|11\rangle)$ (or in vector form $[1/\sqrt{2}, 0, 0, 1/\sqrt{2}]$)? You’ll find there aren’t any! That state is the entangled state where the two qubits will always have the same value when you observe them.

Entangled qubits are nothing special in quantum circuits. You don’t have to take any special precautions when working with them. They are an interesting byproduct of quantum computing, and so basically are something neat that comes out of your quantum circuit, but they don’t require any extra thought when using them within your circuits. Don’t worry about them too much (:

## Multi Qubit Gates

Let’s have a look at some multi qubit gates! (These are again from Wikipedia: Quantum Gate)

### Swap Gate

Given two qubits, with possible states $|00\rangle, |01\rangle, |10\rangle, |11\rangle$, this gate swaps the amplitudes (probabilities) of $|01\rangle, |10\rangle$ and leaves the probabilities of the states $|00\rangle$ and $|11\rangle$ alone.

That might seem weird, but the probability of the $|00\rangle$ state is the probability of the first qubit being 0 added to the probability of the second qubit being 0. If those probabilities swap, they still add to the same value, so this probability is unaffected. It’s the same situation for the $|11\rangle$ state.

Here’s the matrix for the swap gate:
$\begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 1 \\ \end{bmatrix}$

### Square Root of Swap Gate

I don’t really understand a usage case for this gate myself, but it apparently does a half way swap between two qubits. That once again modifies the probabilities of the $|01\rangle, |10\rangle$ states, but leaves state $|00\rangle$ and $|11\rangle$ alone again, for the same reason as the swap gate.

Wikipedia says that if you have this gate, and the single qubit gates, that you can do universal quantum computation. In other words, you can build a fully functional quantum computer using just this and the single qubit gates.

Here’s the matrix:
$\begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & \frac{1}{2}(1+i) & \frac{1}{2}(1-i) & 0 \\ 0 & \frac{1}{2}(1-i) & \frac{1}{2}(1+i) & 0 \\ 0 & 0 & 0 & 1 \\ \end{bmatrix}$

### Controlled Not Gate

The controlled not (CNOT) gate flips the value of the second qubit if the first qubit is true. This is a logic / flow control type of gate.

Interestingly, this gate is also useful for creating entangled qubits, which you’ll be able to see lower down!

Here is the matrix:
$\begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 1 \\ 0 & 0 & 1 & 0 \\ \end{bmatrix}$

The controlled not gate is also referred to as the quantum XOR gate. To see why, check out the truth table below for this gate:
$\begin{array}{c|c} \text{Input} & \text{Output} \\ \hline 00 & 00 \\ 01 & 01 \\ 10 & 11 \\ 11 & 10 \\ \end{array}$

If you look at the right most bit of the outputs, you’ll notice that it’s the XOR of the two input bits!

All quantum gates need to be reversible, and having these two qubits be the output of a hypothetical quantum XOR gate allows that to happen. If you look at the right most bit of the inputs, you’ll notice that it is also the XOR of the two output bits. It’s bidirectional, which is kind of weird and kind of interesting 😛

### Generalized Control Gate

You can actually convert any single qubit gate into a controlled gate. That makes a 2 qubit gate which only does work on the second qubit if the first qubit is true.

How you do that is you make a 4×4 identity matrix, and make the lower 2×2 sub-matrix into the single qubit matrix you want to use.

In other words, if your single qubit matrix is this:
$\begin{bmatrix} U_{00} & U_{01} \\ U_{10} & U_{11} \\ \end{bmatrix}$

Then the controlled version of the matrix would be this:
$\begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & U_{00} & U_{01} \\ 0 & 0 & U_{10} & U_{11} \\ \end{bmatrix}$

Pretty simple right?

### Toffoli Gate

The Tofolli gate is a 3 qubit gate that is also known as the CCNOT gate or controlled controlled not gate. It flips the third qubit if the first two qubits are true.

It’s matrix looks pretty uninteresting:
$\begin{bmatrix} 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \\ \end{bmatrix}$

This is also known as the quantum AND gate. If you look at the truth table below, you’ll see that when the input has the right most qubit of 0, that in the output, the right most qubit will be the AND value of the two left qubits. We need the three bits of input mapping to three bits of output like this so that the gate is reversible.

$\begin{array}{c|c} \text{Input} & \text{Output} \\ \hline 000 & 000 \\ 001 & 001 \\ 010 & 010 \\ 011 & 011 \\ 100 & 100 \\ 101 & 101 \\ 110 & 111 \\ 111 & 110 \\ \end{array}$

### Fredkin Gate

The Fredkin gate is a controlled swap gate. Here’s the matrix:
$\begin{bmatrix} 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \\ \end{bmatrix}$

Just like we talked about how to make a generalized controlled gate acting on two qubits, you should be able to notice that this gate is just a specific version of a generalized controlled 3 qubit gate. You take an 8×8 identity matrix, and make the lower right 4×4 matrix be the 2 qubit gate that you want to add a control on. In this case, the lower right 4×4 matrix is just the swap gate we mentioned earlier in the post (:

## Circuit To Entangle Qubits

The circuit to entangle qubits is pretty simple, so let’s start with that as the first quantum circuit we look at. It takes in two qubits. The first qubit is put through a Hadamard gate, and then both qubits are put through a controlled not gate. That circuit looks like this (image courtesy of Quantum Circuit Simulator):

The value you plug in for the second qubit determines what type of entanglement you get out. Setting the second qubit to 0, you will get entangled qubits which always agree when they are observed. Setting it to 1, you will get entangled qubits which always disagree when they are observed. The first qubit controls whether the phase of each state matches or mismatches. Note that these are the four Bell States (Wikipedia: Bell State).

$\begin{array}{c|c|c} \text{Input} & \text{Output In Ket Notation} & \text{Output As Vector} \\ \hline 00 & \frac{1}{\sqrt{2}}(|00\rangle+|11\rangle) & [1/\sqrt{2},0,0,1/\sqrt{2}] \\ 01 & \frac{1}{\sqrt{2}}(|01\rangle+|10\rangle) & [0,1/\sqrt{2},1/\sqrt{2},0] \\ 10 & \frac{1}{\sqrt{2}}(|00\rangle-|11\rangle) & [1/\sqrt{2},0,0,-1/\sqrt{2}] \\ 11 & \frac{1}{\sqrt{2}}(|01\rangle-|10\rangle) & [0,1/\sqrt{2},-1/\sqrt{2},0]\\ \end{array}$

In a quantum circuit, you can’t just apply a gate to an individual quabit at a time though. You have to make the matrix of your gate such that it applies to all qubits, applying the “identity” matrix to the qubits you don’t want to be affected by the gate.

So, how do we make a matrix that applies the Hadamard gate to qubit 1, and identity to qubit 2? You use the kronecker product!

Since we want to apply the Hadamard matrix to qubit 1 and identity to qubit 2, we are going to calculate $H \otimes I$ (If we wanted to apply the Hadamard gate to qubit 2 and identity to qubit 1 we would calculate $I \otimes H$ instead).

$H \otimes I = 1/\sqrt{2}* \begin{bmatrix} 1 & 1 \\ 1 & -1 \\ \end{bmatrix} \otimes \begin{bmatrix} 1 & 0 \\ 0 & 1 \\ \end{bmatrix} = 1/\sqrt{2}* \begin{bmatrix} 1 & 0 & 1 & 0 \\ 0 & 1 & 0 & 1 \\ 1 & 0 & -1 & 0 \\ 0 & 1 & 0 & -1 \\ \end{bmatrix}$

If you notice, the result of the kronecker product is just every value in the left matrix, multiplied by every value in the right matrix. Basically, the result is a 2×2 grid of identity matrices, where each of those identity matrices is multiplied by the corresponding value from the same cell in the left matrix. Since the left matrix has a 1 in all cells except the lower right, the same is true of the result… it’s a positive identity matrix in each cell, except the lower right one, which is a negative identity matrix. Hopefully that makes sense, it’s a lot easier than it sounds…

The second gate in the quantum circuit is the CNOT gate. We can actually multiply the gate we just made by the CNOT gate to represent the full quantum circuit as a single matrix. This uses regular matrix multiplication.

$1/\sqrt{2}* \begin{bmatrix} 1 & 0 & 1 & 0 \\ 0 & 1 & 0 & 1 \\ 1 & 0 & -1 & 0 \\ 0 & 1 & 0 & -1 \\ \end{bmatrix} * \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 1 \\ 0 & 0 & 1 & 0 \\ \end{bmatrix} = 1/\sqrt{2}* \begin{bmatrix} 1 & 0 & 0 & 1 \\ 0 & 1 & 1 & 0 \\ 1 & 0 & 0 & -1 \\ 0 & 1 & -1 & 0 \\ \end{bmatrix} = \begin{bmatrix} 1/\sqrt{2} & 0 & 0 & 1/\sqrt{2} \\ 0 & 1/\sqrt{2} & 1/\sqrt{2} & 0 \\ 1/\sqrt{2} & 0 & 0 & -1/\sqrt{2} \\ 0 & 1/\sqrt{2} & -1/\sqrt{2} & 0 \\ \end{bmatrix}$

Lets plug some values into the circuit and see what comes out!

Lets start by plugging in 00. Our input qubits are $[1, 0]$ and $[1, 0]$. The kronecker product of those two qubit vectors is $[1, 0, 0, 0]$. Now let’s multiply that vector by the matrix of our quantum circuit.

$\begin{bmatrix} 1 & 0 & 0 & 0 \end{bmatrix} * \begin{bmatrix} 1/\sqrt{2} & 0 & 0 & 1/\sqrt{2} \\ 0 & 1/\sqrt{2} & 1/\sqrt{2} & 0 \\ 1/\sqrt{2} & 0 & 0 & -1/\sqrt{2} \\ 0 & 1/\sqrt{2} & -1/\sqrt{2} & 0 \\ \end{bmatrix} = \begin{bmatrix} 1/\sqrt{2} & 0 & 0 & 1/\sqrt{2} \end{bmatrix}$

Comparing this to the table showing how our input maps to output, we got the right answer! If you plugged in the other values listed, you would get the rest of the bell state entanglements.

## Unentangling Qubits

All gates are reversible, so all circuits are reversible. To get the reverse circuit for a given matrix, you just get the inverse of the matrix. Since quantum gates (and circuits) are unitary matrices, taking the inverse of one of these matrices just means taking the conjugate transpose of the matrix. In other words, you take the transpose of the matrix, and then just negate the imaginary component of any complex numbers. In this example, there are no imaginary numbers, so you just take the transpose of the matrix.

Since our circuit matrix is this:

$\begin{bmatrix} 1/\sqrt{2} & 0 & 0 & 1/\sqrt{2} \\ 0 & 1/\sqrt{2} & 1/\sqrt{2} & 0 \\ 1/\sqrt{2} & 0 & 0 & -1/\sqrt{2} \\ 0 & 1/\sqrt{2} & -1/\sqrt{2} & 0 \\ \end{bmatrix}$

That means that the inverse must be this, since this is the (conjugate) transpose.

$\begin{bmatrix} 1/\sqrt{2} & 0 & 1/\sqrt{2} & 0 \\ 0 & 1/\sqrt{2} & 0 & 1/\sqrt{2} \\ 0 & 1/\sqrt{2} & 0 & -1/\sqrt{2} \\ 1/\sqrt{2} & 0 & -1/\sqrt{2} & 0 \\ \end{bmatrix}$

Let’s try it out by putting the output from last section in and seeing what comes out the other side:

$\begin{bmatrix} 1/\sqrt{2} & 0 & 0 & 1/\sqrt{2} \end{bmatrix} * \begin{bmatrix} 1/\sqrt{2} & 0 & 1/\sqrt{2} & 0 \\ 0 & 1/\sqrt{2} & 0 & 1/\sqrt{2} \\ 0 & 1/\sqrt{2} & 0 & -1/\sqrt{2} \\ 1/\sqrt{2} & 0 & -1/\sqrt{2} & 0 \\ \end{bmatrix} = \begin{bmatrix} 1 & 0 & 0 & 0 \end{bmatrix}$

It worked! We got our original input back.

## Making Matrices for More Complex Circuits

We talked about how to make single qubit gates apply to specific qubits by using the kronecker product with identity to move the gate to the right location.

If you have 4 qubits and you want to apply some single qubit gate (say Hadamard) to the 3rd qubit, you would just do this to get the matrix:
$I \otimes I \otimes H \otimes I$

What if you want to do complex things with multi qubit gates though? Like what if you want to do a controlled not gate where you want the 2nd qubit to flip it’s value if the 4th qubit was true?

The answer is actually pretty simple… you use swaps gates to flip the values of the qubits so that your qubit values line up with the inputs of the gate, then you do the gate, and finally undo all the swaps to get the qubit values back to the right positions.

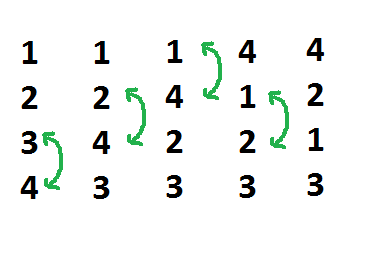

We need to swap qubits so that the 4th qubit value is in the 1st qubit slot, and the 2nd qubit value is in the 2nd qubit slot. We can do that with the following swaps:

Once we have done those swaps, we can do our controlled not, then do the swaps in reverse order to return the qubits to their original positions.

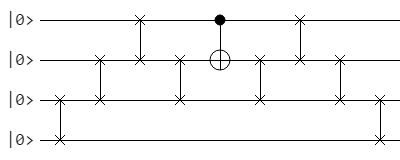

Here’s what the circuit looks like:

You’ll see the simpler version in circuit diagrams, but at least now you’ll know how to make things that look like this:

Below is the mathematical way that you would get the matrix representing this gate.

$I$ is the identity matrix, $S$ is the swap gate, and $C$ is the controlled not gate.

$M = \\ (I \otimes I \otimes S) * \\ (I \otimes S \otimes I) * \\ (S \otimes I \otimes I) * \\ (I \otimes S \otimes I) * \\ (C \otimes I \otimes I) * \\ (I \otimes S \otimes I) * \\ (S \otimes I \otimes I) * \\ (I \otimes S \otimes I) * \\ (I \otimes I \otimes S) \\$

## Code

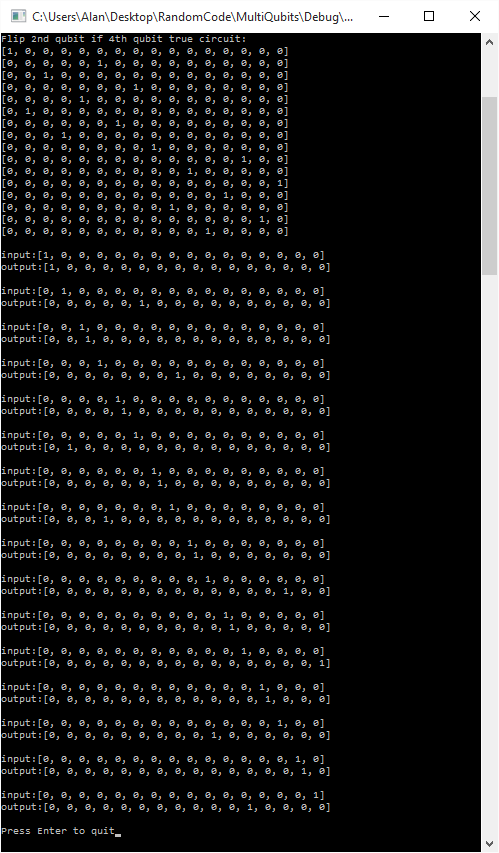

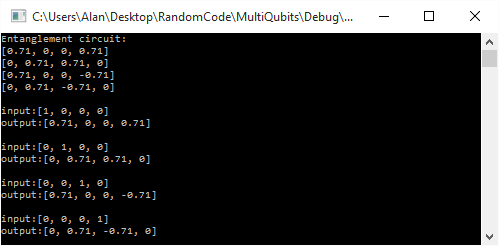

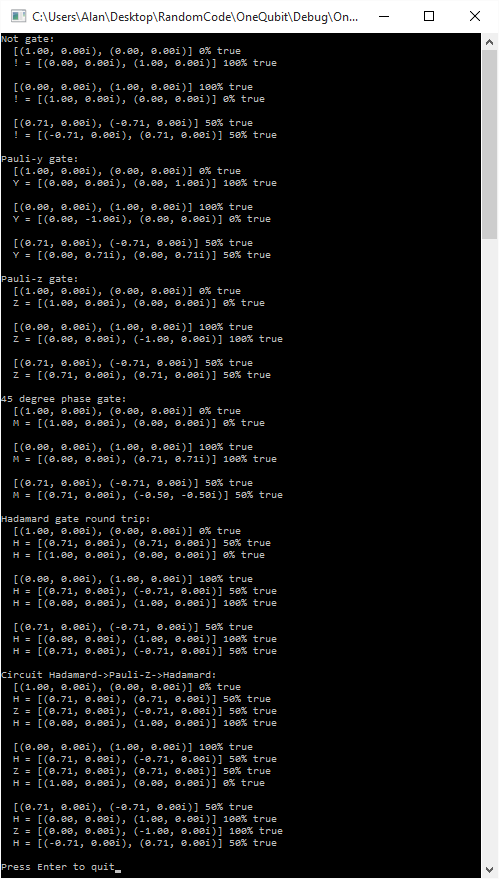

Here is some simple C++ to show both the entanglement circuit and the more complicated controlled not gate we described.

#include <stdio.h>
#include <vector>
#include <complex>
#include <assert.h>

typedef std::complex<float> TComplex;

//=================================================================================
struct SComplexVector
{
public:
TComplex& Get (size_t i) { return v[i]; }

const TComplex& Get (size_t i) const { return v[i]; }

size_t Size() const
{
return v.size();
}

void Resize (size_t s)
{
v.resize(s);
}

void Print () const
{
printf("[");
for (size_t i = 0, c = v.size(); i < c; ++i)
{
if (i > 0)
printf(", ");
const TComplex& val = Get(i);
if (val.imag() == 0.0f)
{
if (val.real() == 0.0f)
printf("0");
else if (val.real() == 1.0f)
printf("1");
else
printf("%0.2f", val.real());
}
else
printf("%0.2f + %0.2fi", val.real(), val.imag());
}
printf("]n");
}

std::vector<TComplex> v;
};

//=================================================================================
struct SComplexMatrix
{
public:
TComplex& Get (size_t x, size_t y)
{
return v[y*Size() + x];
}

const TComplex& Get (size_t x, size_t y) const
{
return v[y*Size() + x];
}

// For an MxM matrix, this returns M
size_t Size () const
{
size_t ret = (size_t)sqrt(v.size());
assert(ret*ret == v.size());
return ret;
}

// For an MxM matrix, this sets M
void Resize(size_t s)
{
v.resize(s*s);
}

void Print() const
{
const size_t size = Size();

for (size_t y = 0; y < size; ++y)
{
printf("[");
for (size_t x = 0; x < size; ++x)
{
if (x > 0)
printf(", ");

const TComplex& val = Get(x, y);
if (val.imag() == 0.0f)
{
if (val.real() == 0.0f)
printf("0");
else if (val.real() == 1.0f)
printf("1");
else
printf("%0.2f", val.real());
}
else
printf("%0.2f + %0.2fi", val.real(), val.imag());
}
printf("]n");
}
}

std::vector<TComplex> v;
};

//=================================================================================
static const SComplexVector c_qubit0 = { { 1.0f, 0.0f } };  // false aka |0>
static const SComplexVector c_qubit1 = { { 0.0f, 1.0f } };  // true aka |1>

// 2x2 identity matrix
static const SComplexMatrix c_identity2x2 =
{
{
1.0f, 0.0f,
0.0f, 1.0f,
}
};

// Given the states |00>, |01>, |10>, |11>, swaps the |01> and |10> state
// If swapping the probabilities of two qubits, it won't affect the probabilities
// of them both being on or off since those add together.  It will swap the odds of
// only one of them being on.
static const SComplexMatrix c_swapGate =
{
{
1.0f, 0.0f, 0.0f, 0.0f,
0.0f, 0.0f, 1.0f, 0.0f,
0.0f, 1.0f, 0.0f, 0.0f,
0.0f, 0.0f, 0.0f, 1.0f
}
};

// Controlled not gate
// If the first qubit is true, flips the value of the second qubit
static const SComplexMatrix c_controlledNotGate =
{
{
1.0f, 0.0f, 0.0f, 0.0f,
0.0f, 1.0f, 0.0f, 0.0f,
0.0f, 0.0f, 0.0f, 1.0f,
0.0f, 0.0f, 1.0f, 0.0f
}
};

// Takes a pure |0> or |1> state and makes a 50/50 superposition between |0> and |1>.
// Put a 50/50 superposition through and get the pure |0> or |1> back.
// Encodes the origional value in the phase information as either matching or
// mismatching phase.
{
{
1.0f / std::sqrt(2.0f), 1.0f / std::sqrt(2.0f),
1.0f / std::sqrt(2.0f), 1.0f / -std::sqrt(2.0f)
}
};

//=================================================================================
void WaitForEnter ()
{
printf("nPress Enter to quit");
fflush(stdin);
getchar();
}

//=================================================================================
SComplexVector KroneckerProduct (const SComplexVector& a, const SComplexVector& b)
{
const size_t aSize = a.Size();
const size_t bSize = b.Size();

SComplexVector ret;
ret.Resize(aSize*bSize);

for (size_t i = 0, ic = aSize; i < ic; ++i)
{
for (size_t j = 0, jc = bSize; j < jc; ++j)
{
size_t n = i * bSize + j;
ret.Get(n) = a.Get(i)*b.Get(j);
}
}
return ret;
}

//=================================================================================
SComplexMatrix KroneckerProduct (const SComplexMatrix& a, const SComplexMatrix& b)
{
const size_t aSize = a.Size();
const size_t bSize = b.Size();

SComplexMatrix ret;
ret.Resize(aSize*bSize);

for (size_t ax = 0; ax < aSize; ++ax)
{
for (size_t ay = 0; ay < aSize; ++ay)
{
const TComplex& aValue = a.Get(ax, ay);

for (size_t bx = 0; bx < bSize; ++bx)
{
for (size_t by = 0; by < bSize; ++by)
{
const TComplex& bValue = b.Get(bx, by);

size_t nx = ax*bSize + bx;
size_t ny = ay*bSize + by;

ret.Get(nx,ny) = aValue * bValue;
}
}
}
}

return ret;
}

//=================================================================================
SComplexMatrix operator* (const SComplexMatrix& a, const SComplexMatrix& b)
{
assert(a.Size() == b.Size());
const size_t size = a.Size();

SComplexMatrix ret;
ret.Resize(size);

for (size_t nx = 0; nx < size; ++nx)
{
for (size_t ny = 0; ny < size; ++ny)
{
TComplex& val = ret.Get(nx, ny);
val = 0.0f;
for (size_t i = 0; i < size; ++i)
val += a.Get(i, ny) * b.Get(nx, i);
}
}

return ret;
}

//=================================================================================
SComplexVector operator* (const SComplexVector& a, const SComplexMatrix& b)
{
assert(a.Size() == b.Size());
const size_t size = a.Size();

SComplexVector ret;
ret.Resize(size);

for (size_t i = 0; i < size; ++i)
{
TComplex& val = ret.Get(i);
val = 0;
for (size_t j = 0; j < size; ++j)
val += a.Get(j) * b.Get(i, j);
}

return ret;
}

//=================================================================================
int main (int argc, char **argv) {

// 2 qubit entanglement circuit demo
{
// make the circuit
const SComplexMatrix H1 = KroneckerProduct(c_hadamardGate, c_identity2x2);
const SComplexMatrix circuit = H1 * c_controlledNotGate;

// display the circuit
printf("Entanglement circuit:n");
circuit.Print();

// permute the inputs and see what comes out when we pass them through the circuit!
SComplexVector input = KroneckerProduct(c_qubit0, c_qubit0);
SComplexVector output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(c_qubit0, c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(c_qubit1, c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(c_qubit1, c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();
}

// 4 qubit demo: flip the second qubit if the fourth qubit is true
{
// make the circuit
const SComplexMatrix cnot4qubit = KroneckerProduct(KroneckerProduct(c_controlledNotGate, c_identity2x2), c_identity2x2);
const SComplexMatrix swap12 = KroneckerProduct(KroneckerProduct(c_swapGate, c_identity2x2), c_identity2x2);
const SComplexMatrix swap23 = KroneckerProduct(KroneckerProduct(c_identity2x2, c_swapGate), c_identity2x2);
const SComplexMatrix swap34 = KroneckerProduct(KroneckerProduct(c_identity2x2, c_identity2x2), c_swapGate);
const SComplexMatrix circuit =
swap34 *
swap23 *
swap12 *
swap23 *
cnot4qubit *
swap23 *
swap12 *
swap23 *
swap34;

// display the circuit
printf("nFlip 2nd qubit if 4th qubit true circuit:n");
circuit.Print();

// permute the inputs and see what comes out when we pass them through the circuit!
SComplexVector input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit0), c_qubit0), c_qubit0);
SComplexVector output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit0), c_qubit0), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit0), c_qubit1), c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit0), c_qubit1), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit1), c_qubit0), c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit1), c_qubit0), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit1), c_qubit1), c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit0, c_qubit1), c_qubit1), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit0), c_qubit0), c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit0), c_qubit0), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit0), c_qubit1), c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit0), c_qubit1), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit1), c_qubit0), c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit1), c_qubit0), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit1), c_qubit1), c_qubit0);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();

input = KroneckerProduct(KroneckerProduct(KroneckerProduct(c_qubit1, c_qubit1), c_qubit1), c_qubit1);
output = input * circuit;
printf("ninput:");
input.Print();
printf("output:");
output.Print();
}

WaitForEnter();

return 0;
}


Here is the first part of the output, which shows the results of the entangling circuit. You can see that the input gave the expected output Bell states:

Below is the second part of the output, which is the circuit that flips the 2nd qubit if the 4th qubit is true.

Each entry in the input and output vectors is the amplitude (probability) that the state it represents is true. The states start at the left with 0000, then 0001, then 0010 and continue until the very right most value which represents 1111.

If you look at the second input/output pair the input is [0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0], which means it has a 100% chance of the 4 qubits being 0001 (aka the qubits represent the number 1). The output vector is [0,0,0,0,0,1,0,0,0,0,0,0,0,0,0,0], which means that it has a 100% chance of being 0101 (aka the qubits represent the number 5). Since the input did have the 4th bit set (4th from the left), it flipped the 2nd bit. So, you can see that it worked!

If you check all the input/output pairs, you’ll see that they all follow this rule.

We used only whole, real numbers, no using fractional probabilities, or imaginary amplitudes. What it does in those situations is a little bit harder to get intuition for, but rest assured that it does “the right thing” in those situations as well.

## Next Up

Now that we have the basics of quantum computing down pretty well, it’s time to analyze a couple quantum algorithms to see how they work!

# Quantum Computing For Programmers Part Ib: Bloch Sphere

If you read anything on quantum computing you are extremely likely to see the Bloch sphere, so it’s probably important to explain what it is and how it works.

Image from wikipedia: Wikipedia: Qubit

The Bloch sphere is a way of visually representing a qubit.

The north pole is the $|0\rangle$ state, and the south pole is the $|1\rangle$ state. The Z axis is vertical and runs from the $|0\rangle$ to the $|1\rangle$ state. A qubit’s state is represented by a point on the sphere.

If you read the last post, you might remember that there was a Pauli-Z gate which changed the phase of a qubit without changing it’s probability, as well as a more generalized version of the phase changing gate which also just rotated around the Z axis. Looking at the bloch sphere, you can see why that is true! Rotating a point around the Z axis moves it around the sphere horizontally, but it doesn’t make it any closer or farther to either the north or south pole. Since the distance to the poles is preserved, the probability of being one or the other stays the same, even though the phase changes.

The not gate, aka the Pauli-X gate, rotated a point around the X axis 180 degrees. Looking at the sphere, you could see how that would change a $|1\rangle$ to a $|0\rangle$, or otherwise flip the probabilities & amplitudes of the states.

The Pauli-Y gate is a little more complex though (pun intended!) as it mapped $|0\rangle$ to $i|1\rangle$ and $|1\rangle$ to $-i|0\rangle$ by rotating 180 degrees around the Y axis. You may wonder how $|1\rangle$ and $i|1\rangle$ can both refer to the south pole, but the situation there is that every point EXCEPT the poles have a unique representation. So, they really do both refer to the south pole.

To find where a qubit sits on the sphere, the first step is to figure out the spherical coordinates theta ($\theta$) and phi ($\phi$) values, which you can then convert to a 3d point.

Start with whatever qubit you have in this form, where you know what the values for alpha ($\alpha$) and beta ($\beta$) are:
$|\psi\rangle = \alpha|0\rangle + \beta|1\rangle$

You can also write a qubit as:
$|\psi\rangle = \cos\left(\tfrac{\theta}{2}\right) |0 \rangle \, + \, e^{i \phi} \sin\left(\tfrac{\theta}{2}\right) |1 \rangle$

Or like this, with less euler, and more trig:
$|\psi\rangle = \cos\left(\tfrac{\theta}{2}\right) |0 \rangle \, + \, ( \cos \phi + i \sin \phi) \, \sin\left(\tfrac{\theta}{2}\right) |1 \rangle$

You can then set your known alpha and beta values to the trig (or euler) based equations:
$\alpha = \cos\left(\tfrac{\theta}{2}\right)$
$\beta = \, ( \cos \phi + i \sin \phi) \, \sin\left(\tfrac{\theta}{2}\right)$

and then solve for theta and phi (I wave my hands a bit here).

Once you have the theta and phi values figured out, you can convert that to a unit distance 3d point representing a point on the sphere by using the below, which describes the X,Y,Z components of the point:
$(\sin \theta \cos \phi, \; \sin \theta \sin \phi, \; \cos \theta)$

Hopefully this explanation makes enough sense that if you encounter the bloch sphere, or things talking about rotations on the bloch sphere, you won’t be too lost 😛

Ok… time to move on to multiple qubit quantum circuits so we can do more interesting things and perhaps analyze the most well known quantum algorithms!

# Quantum Computing For Programmers Part I: One Qubit

Are you a programmer? Do you have interest in learning how quantum computing works? Does hard core math and crazy abstract “philosophical” type physics questions about the nature of reality make you feel like you could never understand quantum computing?

If so, me too, welcome to the club! We are programmers, not mathematicians or physicists, but we are masters of our realm – computation and logic. With that, I say that quantum computing is ultimately meant for us, since it is computing and programming, so lets figure it out and do some interesting stuff 😛

Before we start, I want to mention that these posts should be able to be read stand alone, but if you want to get into the deeper details, you probably want to give this list of references I’m using a read at some point. Perhaps before reading my posts, or after, or both!
Quantum Computing References

Lastly, to be clear, quantum computers seem like they are a long way off from being common place objects. These posts will show how quantum computers work, and allow you to simulate quantum computers on your own computer with some simple C++. The code won’t run as fast as it would on a real quantum computer (obviously!), but it should let you better understand how Quantum Computing (QC) works and let you explore and experiment on your own machine.

## Probabilities (aka SuperPositons)

At the core of QC is the qubit. A qubit is like a regular bit, in that it can have the value of 0 or 1, but unlike a regular bit, it can also be somewhere in the middle where it has a probability of being in each state.

That might sound strange, but think of a qubit like a coin. It can be heads up, or it can be heads down, or it can be in the air, waiting to land heads up or heads down.

When the coin is in the air, if it is perfectly balanced, it has a 50/50 chance of becoming heads or tails.

If the coin is not perfectly balanced (no real coin can be perfectly balanced!), it will have some bias towards heads or towards tails so will not be a pure 50/50 chance of heads or tails.

While the coin is on the ground, it is either a heads (0) or a tails (1), but while it’s in the air, you can imagine that it is a superposition of 0 and 1. When it lands, that superposition will collapse into a 0 or 1 value, which is also what happens when you “observe” or measure a qubit.

One interesting thing about quantum computing, and where part of it’s power comes from is that you can perform logic on superpositional values in a way that when you have your final superpositional result, you can measure it and get the result from your logic circuit as if the values had been fixed all the way through the system, instead of being in superpositions.

The bummer about this though is that since it’s all based on probabilities, your answer has a chance of being not the value you wanted to get. Quantum circuits / quantum algorithms will try to combat this by doing operations iteratively to make the probability of the desired answer go up, and the probability of the undesired answers go down.

They can also run the quantum algorithm multiple times, to take multiple samples and be more sure about their results.

You still with me? Pretty simple so far right?

Before moving on I also wanted to mention that regular computers – like the one you are using right now – also have a greater than zero chance that they will give you the wrong answer to a calculation. The error rate can increase when the components are too hot, but even otherwise, a stray particle of background radiation could hit your cpu and flip a bit, giving you the wrong answer. You could fight this by doing every calculation 3 times and going with majority rules, but even then, if two bits get flipped, the majority will be wrong. Nothing you can do can completely eliminate the random chance that your calculations will come up with the wrong answer, but the chances are low enough that we rely on computers to do the right things, even in the most critical of situations (like, not starting a thermonuclear war).

With quantum computers you could get that same level of assurance. You can never completely eliminate the chance that a calculation is wrong, but you can definitely be sure with as much accuracy as you can with a standard computer, so that shouldn’t really be an issue in practice, for the cases where you need “certainty”.

## Probability Vectors (aka Amplitude Vectors)

Using the coin flip scenario above, we could describe the probability of a coin landing heads or tails as a vector where the first element is the chance that it will land heads, and the second element is the chance that it will land tails.

A perfectly balanced coin would look like this for instance: $[0.5,0.5]$

If the coin was 75% likely to land heads, and only 25% likely to land tails the vector would look like this: $[0.75,0.25]$

You might notice that the elements of the vector have to add up to 1. This makes sense because there are only two options and one of the two MUST happen (unless it lands perfectly on edge), so they better add up to 1! The technical term for this is that the vector must have an L1 Norm of 1.

Qubits describe their probabilities a little bit differently though. Instead of storing the probability of them being 0 or 1, they store what’s called the amplitude, which when squared gives the probability. Doing this lets them do something really important that I’ll talk about lower down, but for now, you can hopefully just accept that this is how it works.

Consider a qubit having a 50% chance that it’s a 0, and a 50% chance that it’s a 1. We need some number that when squared gives 0.5 aka 1/2. That value is $1/\sqrt{2}$.

So, for a qubit that has an even chance of being a 0 or 1, a vector to represent it is $[1/\sqrt{2}, 1/\sqrt{2}]$.

Then, a vector describing a qubit that has a 75% chance being a 0 and a 25% chance of being a 1 would be $[\sqrt{3}/2, 1/2]$. If you square the first number you can see that you get 3/4 (75% chance) and squaring the second number gives you 1/4 (25% chance).

I got those vectors by solving the simple equation:
$x^2 = P$

Where $P$ is the desired probability from 0 to 1.

You might now notice that the length of a qubit amplitude vector has to be 1. In other words, it’s a normalized vector. The technical term for this is that the vector must have an L2 norm of 1.

Still nothing too crazy going on…

## Ket Notation

There is some notation you’ll come across a lot when reading about quantum computing / mechanics / etc that looks like this:
$1/\sqrt{2}(|0\rangle + |1\rangle)$

That is “Ket Notation” and comes from “Bra-Ket Notation”. It’s bark is worse than it’s bite.

If you multiply it out, you get this:
$1/\sqrt{2} * |0\rangle + 1/\sqrt{2} * |1\rangle$

All that means is that the “0” state of the vector has an amplitude of $1/\sqrt{2}$ and so does the “1” state. Writing that as a vector, we get what we already saw above for the qubit which had 50/50 odds of being a 0 or a 1:
$[1/\sqrt{2}, 1/\sqrt{2}]$

Here is the ket notation for the qubit which had a 75% chance of being a 0 and a 25% chance of being a 1:
$1/2(\sqrt{3}|0\rangle + |1\rangle)$

You can multiply that out to get this:
$\sqrt{3}/2*|0\rangle + 1/2*|1\rangle$

Which translates to the vector we saw before:
$[\sqrt{3}/2, 1/2]$

Lastly, you might see it shown like this:
$|0\rangle$

All that means is that the “0” state is 1. Since the “1” state isn’t listed, it has a value of 0. That is the same as this vector:
$[1, 0]$

Ket notation is used because you only have to list the states that actually have values, and not the ones that have zeros, making a more compact representation. That will be more useful when we move into a larger number of qubits.

Note that the mapping of which state belongs to which spot in the vector is completely arbitrary. I chose to make the left value be the “0” state and the right value be the “1” state, but it really doesn’t matter how you define it, so long as you are consistent.

## Phase

Phase is the reason that qubits store amplitude, which square to probabilities, instead of storing probabilities themselves.

I said that the amplitude vector for a qubit which has a 50/50 chance of being a 0 or a 1 was this:
$[1/\sqrt{2}, 1/\sqrt{2}]$

I lied a bit though, and that is only one possible answer. Here’s another that has a 50/50 chance:
$[-1/\sqrt{2}, 1/\sqrt{2}]$

This gets interesting when you add two vectors together. First lets add two amplitude vectors which have the same phases for each state:
$[1/\sqrt{2}, 1/\sqrt{2}] + [1/\sqrt{2}, 1/\sqrt{2}] = [\sqrt{2}, \sqrt{2}]$

Now, let’s add two amplitude vectors where the $|1\rangle$ state has opposite phase in one of the vectors:
$[1/\sqrt{2}, 1/\sqrt{2}] + [1/\sqrt{2}, -1/\sqrt{2}] = [\sqrt{2}, 0]$

You can see that the $|0\rangle$ states added together while the $|1\rangle$ states subtracted and resulted in zero.

This is called destructive interference, and is one of the things that makes quantum computing powerful. We can change a qubit’s phase without affecting it’s value (or probability of values).

I left out another important amplitude vector for describing a qubit that has a 50/50 chance of being a 0 or a 1:
$[1/\sqrt{2}, 1/\sqrt{-2}]$

Which can also be written as:
$[1/\sqrt{2}, 1/(\sqrt{2}*i)]$

Yep, that is an imaginary number in the 1 state!

Since amplitude squared is probability, it means we can also use imaginary numbers for amplitude vector values. If you know that the term phase relates to angles and rotations, you might want to have a look at these two things to follow the rabbit hole a bit deeper. Totally optional (;
Using Imaginary Numbers To Rotate 2D Vectors
Wikipedia: Bloch Sphere

However, since imaginary numbers can be involved, squaring amplitudes to get probabilities isn’t enough. Like for example with the vector $[0,i]$, if you square the $|1\rangle$ state to get the probability, you get -1, or -100%. That isn’t right!

The real operation to getting probability from amplitude is you multiply the amplitude by it’s complex conjugate. In other words, if you have a complex number, you multiply the imaginary part by -1 to get the conjugate, and multiply by that.

As an example, if you have $3+5i$, the complex conjugate is $3-5i$.

In the example of the vector $[0,i]$, you get the probability of the $|1\rangle$ state by multiplying $i$ by $-i$ to get 1, or 100%.

Complex conjugate sounds scary, but hopefully you can see it isn’t as scary as it sounds. You just flip the sign of the imaginary component of the complex number.

## Common One Qubit Logic Gates

It’s finally time to dive into some logic gates so we can actually do some quantum programming!

Real quickly I want to mention that we are going to be simulating quantum computing by multiplying the qubit amplitude vectors by matrices. The matrices themselves are unitary matrices, which preserves the length of the vectors (keeping them normalized).

One requirement of quantum gates is that they must be reversible, and unitary matrices are also reversible.

The matrices are square matrices and their dimensions will always be 2^N by 2^N where N is the number of qubits involved in the quantum circuit. With a single qubit, that means we will be working with 2×2 matrices which is fairly small.

When working with more qubits the size of the matrix grows very quickly though. Quantum computing is very fast at doing these “matrix multiplies” and is part of where their power comes from. Large matrix multiplies will be slow for us on regular (classical) computers, but the quantum computers would be able to do them very quickly. That’s where the difference is in our simulations versus the real deal.

Anyways, let’s get onto some specific logic gates! (These are from Wikipedia: Quantum Gate)

### Not Gate (Pauli-X Gate)

This is a not gate, but is also described as a 180 degree rotation around the x axis of the bloch sphere.

$\begin{bmatrix} 0 & 1 \\ 1 & 0 \\ \end{bmatrix}$

You might notice that it looks like a backwards identity matrix. That is exactly how it works too… if you multiply a 2 element vector by that matrix, it will flip the elements in that vector!

In the case of our qubit amplitude vectors, this has the result of swapping the probability that the qubit will be 0, with the probability that the qubit will be 1.

If the qubit is not in a superposition, and instead is actually just a 0 or a 1, it will act exactly like a traditional NOT gate and flip it from one value to the other.

If the qubit is in a superposition, it will just flip the probabilities of each state.

This maps the $|0\rangle$ state to $|1\rangle$ and vice versa.

### Pauli-Y Gate

This is described as a 180 degree rotation around the y axis of the bloch sphere, and maps $|0\rangle$ to $i|1\rangle$ and $|1\rangle$ to $-i|0\rangle$.

$\begin{bmatrix} 0 & -i \\ i & 0 \\ \end{bmatrix}$

It’s like a NOT but also adjusts phase.

### Pauli-Z Gate

This is described as a 180 degree rotation around the z axis of the bloch sphere. All it does in practice is negate the phase of the $|1\rangle$ state.

$\begin{bmatrix} 1 & 0 \\ 0 & -1 \\ \end{bmatrix}$

You can adjust the phase of individual gates by using a matrix like this one, which is a more general version of the Pauli-Z gate, and adjusts the phase of of the $|1\rangle$ state to whatever value is desired, without affecting the probabilities of the qubit values.

$\begin{bmatrix} 1 & 0 \\ 0 & e^{i\theta} \\ \end{bmatrix}$

The value $e^{i\theta}$ ends up being a complex number, that can also be written like this:
$cos(\theta)+i sin(\theta)$

where $\theta$ is any angle in radians.

You’ll find that circuits commonly only adjust the $|1\rangle$ state. This is because the absolute phase of the individual states don’t matter (since they don’t affect probabilities), but what does matter is the difference in phase between the $|0\rangle$ state and the $|1\rangle$ state, since that can cause constructive or destructive interference. For this reason, you’ll often see the $|0\rangle$ state without a phase value, and only the $|1\rangle$ state will get it’s phase modified during calculations.

Ok so the NOT gate is somewhat useful. You are probably thinking the others might come in handy if you need to adjust the phase of a qubit, but so far, nothing has been that spectacular for single qubit gates.

Well, here’s the more interesting gate.

What this gate does is if you pass it a pure 0 or 1, it will output a value that has a 50% chance of being a 0 or a 1.

The interesting part happens when you put that output through a Hadamard gate again – you get the original value of 0 or 1 out!

It can do this because it stores the info about the original value as phase information. When the input value is $|0\rangle$, the Hadamard gate outputs $[1/\sqrt{2}, 1/\sqrt{2}]$ which has matching phases for each state. When the input value is $|1\rangle$, the gate outputs $[1/\sqrt{2}, -1/\sqrt{2}]$ which has opposite phases for each state.

$1/\sqrt{2} \begin{bmatrix} 1 & 1 \\ 1 & -1 \\ \end{bmatrix}$

This gate is a crucial part in both Grover’s algorithm – which can search an unsorted list in $O(\sqrt{N})$, as well as in Shor’s algorithm, which can factor large numbers much faster than classical computers, putting certain types of cryptography at risk for being cracked by quantum computers.

It has some other uses too, which you can check out here:
Does a Hadamard Gate have uses outside of pure and evenly mixed states?

## Code

Here is some example code to show some single qubit circuits in action.

#include <stdio.h>
#include <array>
#include <complex>

typedef std::array<std::complex<float>, 2> TQubit;
typedef std::array<std::complex<float>, 4> TComplexMatrix;
const float c_pi = 3.14159265359f;

//=================================================================================
static const TQubit c_qubit0 = { 1.0f, 0.0f };  // false aka |0>
static const TQubit c_qubit1 = { 0.0f, 1.0f };  // true aka |1>
static const TQubit c_qubit01_0deg = { 1.0f / std::sqrt(2.0f), 1.0f / std::sqrt(2.0f) }; // 50% true. 0 degree phase
static const TQubit c_qubit01_180deg = { 1.0f / std::sqrt(2.0f), -1.0f / std::sqrt(2.0f) }; // 50% true. 180 degree phase

// A not gate AKA Pauli-X gate
// Flips false and true probabilities (amplitudes)
// Maps |0> to |1>, and |1> to |0>
// Rotates PI radians around the x axis of the Bloch Sphere
static const TComplexMatrix c_notGate =
{
{
0.0f, 1.0f,
1.0f, 0.0f
}
};
static const TComplexMatrix c_pauliXGate = c_notGate;

// Pauli-Y gate
// Maps |0> to i|1>, and |1> to -i|0>
// Rotates PI radians around the y axis of the Bloch Sphere
static const TComplexMatrix c_pauliYGate =
{
{
{ 0.0f, 0.0f }, { 0.0f, -1.0f },
{ 0.0f, 1.0f }, { 0.0f, 0.0f }
}
};

// Pauli-Z gate
// Negates the phase of the |1> state
// Rotates PI radians around the z axis of the Bloch Sphere
static const TComplexMatrix c_pauliZGate =
{
{
1.0f, 0.0f,
0.0f, -1.0f
}
};

// Takes a pure |0> or |1> state and makes a 50/50 superposition between |0> and |1>.
// Put a 50/50 superposition through and get the pure |0> or |1> back.
// Encodes the origional value in the phase information as either matching or
// mismatching phase.
{
{
1.0f / std::sqrt(2.0f), 1.0f / std::sqrt(2.0f),
1.0f / std::sqrt(2.0f), 1.0f / -std::sqrt(2.0f)
}
};

//=================================================================================
void WaitForEnter ()
{
printf("nPress Enter to quit");
fflush(stdin);
getchar();
}

//=================================================================================
TQubit ApplyGate (const TQubit& qubit, const TComplexMatrix& gate)
{
// multiply qubit amplitude vector by unitary gate matrix
return
{
qubit[0] * gate[0] + qubit[1] * gate[1],
qubit[0] * gate[2] + qubit[1] * gate[3]
};
}

//=================================================================================
int ProbabilityOfBeingTrue (const TQubit& qubit)
{
float prob = std::round((qubit[1] * std::conj(qubit[1])).real() * 100.0f);
return int(prob);
}

//=================================================================================
{
// This makes a gate like this:
//
// [ 1  0             ]
//
// The gate will adjust the phase of the |1> state by the specified amount.
// A more general version of the pauli-z gate

return
{
{
1.0f, 0.0f,
}
};
}

//=================================================================================
void Print (const TQubit& qubit)
{
printf("[(%0.2f, %0.2fi), (%0.2f, %0.2fi)] %i%% true",
qubit[0].real(), qubit[0].imag(),
qubit[1].real(), qubit[1].imag(),
ProbabilityOfBeingTrue(qubit));
}

//=================================================================================
int main (int argc, char **argv)
{
// Not Gate
{
printf("Not gate:n  ");

// Qubit: false
TQubit v = c_qubit0;
Print(v);
printf("n  ! = ");
v = ApplyGate(v, c_notGate);
Print(v);
printf("nn  ");

// Qubit: true
v = c_qubit1;
Print(v);
printf("n  ! = ");
v = ApplyGate(v, c_notGate);
Print(v);
printf("nn  ");

// Qubit: 50% chance, reverse phase
v = c_qubit01_180deg;
Print(v);
printf("n  ! = ");
v = ApplyGate(v, c_notGate);
Print(v);
printf("nn");
}

// Pauli-y gate
{
printf("Pauli-y gate:n  ");

// Qubit: false
TQubit v = c_qubit0;
Print(v);
printf("n  Y = ");
v = ApplyGate(v, c_pauliYGate);
Print(v);
printf("nn  ");

// Qubit: true
v = c_qubit1;
Print(v);
printf("n  Y = ");
v = ApplyGate(v, c_pauliYGate);
Print(v);
printf("nn  ");

// Qubit: 50% chance, reverse phase
v = c_qubit01_180deg;
Print(v);
printf("n  Y = ");
v = ApplyGate(v, c_pauliYGate);
Print(v);
printf("nn");
}

// Pauli-z gate
{
printf("Pauli-z gate:n  ");

// Qubit: false
TQubit v = c_qubit0;
Print(v);
printf("n  Z = ");
v = ApplyGate(v, c_pauliZGate);
Print(v);
printf("nn  ");

// Qubit: true
v = c_qubit1;
Print(v);
printf("n  Z = ");
v = ApplyGate(v, c_pauliZGate);
Print(v);
printf("nn  ");

// Qubit: 50% chance, reverse phase
v = c_qubit01_180deg;
Print(v);
printf("n  Z = ");
v = ApplyGate(v, c_pauliZGate);
Print(v);
printf("nn");
}

// 45 degree phase adjustment gate
{
printf("45 degree phase gate:n  ");
TComplexMatrix gate = MakePhaseAdjustmentGate(c_pi / 4.0f);

// Qubit: false
TQubit v = c_qubit0;
Print(v);
printf("n  M = ");
v = ApplyGate(v, gate);
Print(v);
printf("nn  ");

// Qubit: true
v = c_qubit1;
Print(v);
printf("n  M = ");
v = ApplyGate(v, gate);
Print(v);
printf("nn  ");

// Qubit: 50% chance, reverse phase
v = c_qubit01_180deg;
Print(v);
printf("n  M = ");
v = ApplyGate(v, gate);
Print(v);
printf("nn");
}

{

// Qubit: false
TQubit v = c_qubit0;
Print(v);
printf("n  H = ");
Print(v);
printf("n  H = ");
Print(v);
printf("nn  ");

// Qubit: true
v = c_qubit1;
Print(v);
printf("n  H = ");
Print(v);
printf("n  H = ");
Print(v);
printf("nn  ");

// Qubit: 50% chance, reverse phase
v = c_qubit01_180deg;
Print(v);
printf("n  H = ");
Print(v);
printf("n  H = ");
Print(v);
printf("nn");
}

// 1 bit circuit
{

// Qubit: false
TQubit v = c_qubit0;
Print(v);
printf("n  H = ");
Print(v);
printf("n  Z = ");
v = ApplyGate(v, c_pauliZGate);
Print(v);
printf("n  H = ");
Print(v);
printf("nn  ");

// Qubit: true
v = c_qubit1;
Print(v);
printf("n  H = ");
Print(v);
printf("n  Z = ");
v = ApplyGate(v, c_pauliZGate);
Print(v);
printf("n  H = ");
Print(v);
printf("nn  ");

// Qubit: 50% chance, reverse phase
v = c_qubit01_180deg;
Print(v);
printf("n  H = ");
Print(v);
printf("n  Z = ");
v = ApplyGate(v, c_pauliZGate);
Print(v);
printf("n  H = ");
Print(v);
printf("n");
}

WaitForEnter();

return 0;
}


Here’s the output of the program, showing the qubit circuits in action:

## Next Up

In the next part, we’ll look at how multiple qubits work together in quantum circuits so we can do more interesting things. We might need a quick post explaining the Bloch sphere before that though. It’s a fairly important thing, but this post is already enough to digest, so I didn’t include it.

# Quantum Computing References

I’m in the middle of some research to better understand quantum computing so that I can write a short series of blog posts entitled “Quantum Computing for Programmers”.

These posts will be light on – and possibly completely absent of – hardcore math and physics, and instead speak more to programmers. It will aim to show the rules of quantum computing, explain which operations are fast and which aren’t, show the basic building blocks of quantum logic, combine those simple gates into more complicated quantum circuits, and most importantly it will have simple sample C++ code which shows this stuff in action, so you can do your own (simulated) quantum computing experimentation and exploration on your own computer.

This page is a list of the references I’ve found so far, and I’ll keep updating it as I find new, useful references.

## Gentle Introduction

Ars Technica – A tale of two qubits: how quantum computers work

## Technical Details, Very Well Explained

Twisted Oak Studios – What Quantum Computers Do Faster, with Caveats

Twisted Oak Studios – Grover’s Quantum Search Algorithm

Scott Aaronson – Lecture 9: Quantum

Scott Aaronson – Lecture 10: Quantum Computing

## Good Info, More Mathy

Math ∩ Programming – A Motivation for Quantum Computing

Math ∩ Programming – The Quantum Bit

Math ∩ Programming – Multiple Qubits and the Quantum Circuit

Wikipedia – Commonly Used Quantum Gates

Wikipedia – Quantum Circuit

Wikipedia – Deutsch–Jozsa algorithm

## Quantum Algorithm Stuff

A Quantum Network Flow Puzzle

Building your own Quantum Fourier Transform

An interactive page that shows you how quantum pseudo telepathy is not communication

Twisted Oak Studios – Implementing Quantum Pseudo-Telepathy

## Other

An article on some people who are working on emulating (not simulating) quantum computers using sound waves

A Photonic C-NOT Gate Breakthrough for Quantum Computing

Wolfram Alpha Demonstrations: Generating Entangled Qubits

Wikipedia: Simon’s problem

Quantum Circuit Simulator in a Web Page
