A Geometric Interpretation of Neural Networks

In the 90s before I was a professional programmer / game developer I looked at neural networks and found them interesting but got scared off by things like back propagation, which I wasn’t yet ready to understand.

With all the interesting machine learning things going on in modern times, I decided to have a look again and have been pleasantly surprised at how simple they are to understand. If you have knowledge of partial derivatives and gradients (like, if you’ve done any ray marching), you have the knowledge it takes to understand it.

Here are some really great resources I recomend for learning the nuts and bolts of how modern neural networks actually work:
Learn TensorFlow and deep learning, without a Ph.D.
Neural Networks and Deep Learning
A Neural Network Playground (Web Based NN sand box from google)

This post doesn’t require any understanding of neural networks or partial derivatives, so don’t worry if you don’t have that knowledge. The harder math comes up when training a neural network, but we are only going to be dealing with evaluating neural networks, which is much simpler.

A Geometric Interpretation of a Neuron

A neural network is made up layers.

Each layer has some number of neurons in it.

Every neuron is connected to every neuron in the previous and next layer.

Below is a diagram of a neural network, courtesy of wikipedia. Every circle is a neuron.

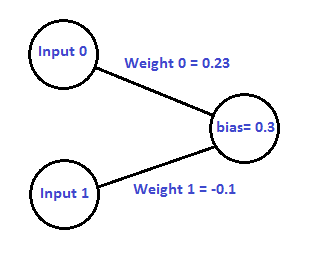

To calculate the output value of a neuron, you multiply every input into that neuron by a weight for that input, and add a bias. This value is fed into an activation function (more on activation functions shortly) and the result is the output value of that neuron. Here is a diagram for a single neuron:

A more formal definition of a neuron’s output is below. b is the bias, w_j is the j’th weight and i_j is the j’th input.
Output = b+\sum_{j=0}^nw_ji_j

You might notice that the above is really just the dot product of the weight vector and the input vector, with a value added on the end. We could re-write it like that:
Output = Dot(w,i)+b

Interestingly, that is the same equation that you use to find the distance of a point to a plane. Let’s say that we have a plane defined by a unit length normal N and a distance to the origin d, and we want to calculate the distance of a point P to that plane. We’d use this formula:
Distance = Dot(N,P)+d

This would give us a signed distance, where the value will be negative if we are in the negative half space defined by the plane, and positive otherwise.

This equation works if you are working in 3 dimensional space, but also works in general for any N dimensional point and plane definition.

What does this mean? Well, this tells us that every neuron in a neural network is essentially deciding what side of a hyperplane a point is on. Each neuron is doing a linear classification, saying if something is on side A or side B, and giving a distance of how far it is into A or B.

This also means that when you combine multiple neurons into a network, that an output neuron of that neural network tells you whether the input point is inside or outside of some shape, and by how much.

I find this interesting for two reason.

Firstly, it means that a neural network can be interpreted as encoding SHAPES, which means it could be used for modeling shapes. I’m interested in seeing what sort of shapes it’s capable of, and any sorts of behaviors this representation might have. I don’t expect it to be useful for, say, main stream game development (bonus if it is useful!) but at minimum it ought to be an interesting investigation to help understand neural networks a bit better.

Secondly, there is another machine learning algorithm called Support Vector Machines which are also based on being able to tell you which side of a separation a data point is on. However, unlike the above, SVM separations are not limited to plane tests and can use arbitrary shapes for separation. Does this mean that we are leaving something on the table for neural networks? Could we do better than we are to make networks with fewer layers and fewer neurons that do better classification by doing non linear separation tests?

Quick side note: besides classification, neural nets can help us with something called regression, which is where you fit a network to some analog data, instead of the more discrete problem of classification, which tells you what group something belongs to.

It turns out that the activation function of a neuron can have a pretty big influence on what sort of shapes are possible, which makes it so we aren’t strictly limited to shapes made up of planes and lines, and also means we aren’t necessarily leaving things on the table compared to SVM’s.

This all sort of gives me the feeling though that modern neural networks may not be the best possible algorithm for the types of things we use them for. I feel like we may need to generalize them beyond biological limitations to allow things like multiplications between weighted inputs instead of only sums. I feel like that sort of setup will be closer to whatever the real ideal “neural computation” model might be. However, the modern main stream neural models do have the benefit that they are evaluated very efficiently via dot products. They are particularly well suited for execution on GPUs which excel at performing homogenous operations on lots and lots of data. So, a more powerful and more general “neuron” may come at the cost of increased computational costs, which may make them less desirable in the end.

As a quick tangent, here is a paper from 2011 which shows a neural network model which does in fact allow for multiplication between neuron inputs. You then will likely be wanting exponents and other things, so while it’s a step in the right direction perhaps, it doesn’t yet seem to be the end all be all!
Sum-Product Networks: A New Deep Architecture

It’s also worth while to note that there are other flavors of neural networks, such as convolutional neural networks, which work quite a bit differently.

Let’s investigate this geometric interpretation of neurons as binary classifiers a bit, focusing on some different activation functions!

Step Activation Function

The Heaviside step function is very simple. If you give it a value greater than zero, it returns a 1, else it returns a 0. That makes our neuron just spit out binary: either a 0 or a 1. The output of a neuron using the step activation function is just the below:

Output = Dot(w,i)+b > 0

The output of a neuron using the step activation function is true if the input point is in the positive half space of the plane that this neuron describes, else it returns false.

Let’s think about this in 2d. Let’s make a neural network that takes x and y as input and spits out a value. We can make an image that visualizes the range from (-1,-1) to (1,1). Negative values can be shown in blue, zero in white, and positive values in orange.

To start out, we’ll make a 2d plane (aka a line) that runs vertically and passes through the origin. That means it is a 2d plane with a normal of (1,0) and a distance from the origin of 0. In other words, our network will have a single neuron that has weights of (1,0) and a bias of 0. This is what the visualization looks like:

You can actually play around with the experiments of this post and do your own using an interactive visualization I made for this post. Click here to see this first experiment: Experiment: Vertical Seperation

We can change the normal (weights) to change the angle of the line, and we can also change the bias to move the line to it’s relative left or right. Here is the same network that has it’s weights adjusted to (1,1) with a bias of 0.1.

Experiment: Diagonal Separation

The normal (1,1) isn’t normalized though, which makes it so the distance from origin (aka the bias) isn’t really 0.1 units. The distance from origin is actually divided by the length of the normal to get the REAL distance to origin, so in the above image, where the normal is a bit more than 1.0, the line is actually less than 0.1 units from the origin.

Below is the visualization if we normalize the weights to (0.707,0.707) but leave the bias at 0.1 units. The result is that the line is actually 0.1 units away from the origin.

Experiment: Normalized Diagonal Separation

Recalling the description of our visualization, white is where the network outputs zero, while orange is where the network outputs a positive number (which is 1 in this case).

If we define three lines such that their negative half spaces don’t completely overlap, we can get a triangle where the network outputs a zero, while everywhere else it outputs a positive value. We do this by having three sibling neurons in the first layer which define three separate lines, and then in the output neuron we give them all a weight of 1. This makes it so the area outside the triangle is always a positive value, which step turns into 1, but inside the triangle, the value remains at 0.


Experiment: Negative Space Triangle

We can turn this negative space triangle into a positive space triangle however by making the output neuron have a weight on the inputs of -1, and adding a bias of 0.1. This makes it so that pixels in the positive space of any of the lines will become a negative value. The negative space of those three lines get a small bias to make it be a positive value, resulting in the step function making the values be 0 outside of the triangle, and 1 inside the triangle. This gives us a positive space triangle:


Experiment: Positive Space Triangle

Taking this a bit further, we can make the first layer define 6 lines, which make up two different triangles – a bigger one and a smaller one. We can then have a second layer which has two neurons – one which makes a positive space larger triangle, and one which makes a positive space smaller triangle. Then, in the output neuron we can give the larger triangle neuron a weight of 1, while giving the smaller triangle neuron a weight of -1. The end result is that we have subtracted the smaller triangle from the larger one:


Experiment: Triangle Cutout

Using the step function we have so far been limited to line based shapes. This has been due to the fact that we can only test our inputs against lines. There is a way around this though: Pass non linear input into the network!

Below is a circle with radius 0.5. The neural network has only a single input which is sqrt(x*x+y*y). The output neuron has a bias of -0.5 and a weight of 1. It’s the bias value which controls the radius of the circle.

You could pass other non linear inputs into the network to get a whole host of other shapes. You could pass sin(x) as an input for example, or x squared.


Experiment: Circle

While the step function is inherently very much limited to linear tests, you can still do quite a lot of interesting non linear shapes (and data separations) by passing non linear input into the network.

Unfortunately though, you as a human would have to know the right non linear inputs to provide. The network can’t learn how to make optimal non linear separations when using the step function. That’s quite a limitation, but as I understand it, that’s how it works with support vector machines as well: a human can define non linear separations, but the human must decide the details of that separation.

BTW it seems like there could be a fun puzzle game here. Something like you have a fixed number of neurons that you can arrange in however many layers you want, and your goal is to separate blue data points from orange ones, or something like that. If you think that’d be a fun game, go make it with my blessing! I don’t have time to pursue it, so have at it (:

Identity and Relu Activation Functions

The identity activation function doesn’t do anything. It’s the same as if no activation function is used. I’ve heard that it can be useful in regression, but it can also be useful for our geometric interpretation.

Below is the same circle experiment as before, but using the identity activation function instead of the step activation function:


Experiment: Identity Circle

Remembering that orange is positive, blue is negative, and white is zero, you can see that outside the circle is orange (positive) and inside the circle is blue (negative), while the outline of the circle itself is white. We are looking at a signed distance field of the circle! Every point on this image is a scalar value that says how far inside or outside that point is from the surface of the shape.

Signed distance fields are a popular way of rendering vector graphics on the GPU. They are often approximated by storing the distance field in a texture and sampling that texture at runtime. Storing them in a texture only requires a single color channel for storage, and as you zoom in to the shape, they preserve their shape a lot better than regular images. You can read more about SDF textures on my post: Distance Field Textures.

Considering the machine learning perspective, having a signed distance field is also an interesting proposition. It would allow you to do classification of input, but also let you know how deeply that input point is classified within it’s group. This could be a confidence level maybe, or could be interpreted in some other way, but it gives a sort of analog value to classification, which definitely seems like it could come in handy sometimes.

If we take our negative space triangle example from the last section and change it from using step activation to identity activation, we find that our technique doesn’t generalize naively though, as we see below. (It doesn’t generalize for the positive space triangle either)


Experiment: Negative Space Triangle Identity

The reason it doesn’t generalize is that the negatives and positives of pixel distances to each of the lines cancel out. Consider a pixel on the edge of the triangle: you are going to have a near zero value for the edge it’s on, and two larger magnitude negative values from the other edges it is in the negative half spaces of. Adding those all together is going to be a negative value.

To help sort this out we can use an activation function called “relu”, which returns 0 if the value it’s given is less than zero, otherwise it returns the value. This means that all our negative values become 0 and don’t affect the distance summation. If we switch all the neurons to using relu activation, we get this:


Experiment: Negative Space Triangle Relu

If you squint a bit, you can see a triangle in the white. If you open the experiment and turn on “discrete output” to force 0 to orange you get a nice image that shows you that the triangle is in fact still there.

Our result with relu is better than identity, but there are two problems with our resulting distance field.

Firstly it isn’t a signed distance field – there is no blue as you might notice. It only gives positive distances, for pixels that are outside the shape. This isn’t actually that big of an issue from a rendering perspective, as unsigned distance fields are still useful. It also doesn’t seem that big of an issue from a machine learning perspective, as it still gives some information about how deeply something is classified, even though it is only from one direction.

I think with some clever operations, you could probably create the internal negative signed distance using different operations, and then could compose it with the external positive distance in the output neuron by adding them together.

The second problem is a bigger deal though: The distance field is no longer accurate!

By summing the distance values, the distance is incorrect for points where the closest feature of the triangle is a vertex, because multiple lines are contributing their distance to the final value.

I can’t think of any good ways to correct that problem in the context of a neural network, but the distance is an approximation, and is correct for the edges, and also gets more correct the closer you get to the object, so this is still useful for rendering, and probably still useful for machine learning despite it being an imperfect measurement.

Sigmoid and Hyperbolic Tangent Activation Function

The sigmoid function is basically a softer version of the step function and gives output between 0 and 1. The hyperbolic tangent activation function is also a softer version of the step function but gives output between -1 and 1.

Sigmoid:

Hyperbolic Tangent:

(images from Wolfram Mathworld)

They have different uses in machine learning, but I’ve found them to be visibly indistinguishable in my experiments after compensating for the different range of output values. It makes me think that smoothstep could probably be a decent activation function too, so long as your input was in the 0 to 1 range (maybe you could clamp input to 0 and 1?).

These activation functions let you get some non linearity in your neural network in a way that the learning algorithms can adjust, which is pretty neat. That puts us more into the realm where a neural net can find a good non linear separation for learned data. For the geometric perspective, this also lets us make more interesting non linear shapes.

Unfortunately, I haven’t been able to get a good understanding of how to use these functions to craft desired results.

It seems like if you add even numbers of hyperbolic tangents together in a neural network that you end up getting a lot of white, like below:


Experiment: tanh1

However, if you add an odd number of them together, it starts to look a bit more interesting, like this:


Experiment: tanh2

Other than that, it’s been difficult seeing a pattern that I can use to craft things. The two examples above were made by modifying the negative space triangle to use tanh instead of step.

Closing

We’ve wandered a bit in the idea of interpreting neural networks geometrically but I feel like we’ve only barely scratched the surface. This also hasn’t been a very rigorous exploration, but more has just been about exploring the problem space to get a feeling for what might be possible.

It would be interesting to look more deeply into some of these areas, particularly for the case of distance field generation of shapes, or combining activation functions to get more diverse results.

While stumbling around, it seems like we may have gained some intuition about how neural networks work as well.

It feels like whenever you add a layer, you are adding the ability for a “logical operation” to happen within the network.

For instance, in the triangle cutout experiment, the first layer after the inputs defines the 6 individual lines of the two triangles and classifies input accordingly. The next layer combines those values into the two different triangle shapes. The layer after that converts them from negative space triangles to positive space triangles. Lastly, the output layer subtracts the smaller triangle’s values from the larger triangle’s values to make the final triangle outline shape.

Each layer has a logical operation it performs, which is based on the steps previous to it.

Another piece of intuition I’ve found is that it seems like adding more neurons to a layer allows it to do more work in parallel.

For instance, in the triangle cutout experiment, we created those two triangles in parallel, reserving some neurons in each layer for each triangle. It was only in the final step that we combined the values into a single output.

Since neurons can only access data from the previous network layer, it seems as though adding more neurons to layers can help push data forward from previous layers, to later layers that might need the data. But, it seems like it is most efficient to process input data as early as possible, so that you don’t have to shuttle it forward and waste layers / neurons / memory and computing power.

Here is some info on other activation functions:
Wikipedia:Activation Function

Here’s a link that talks about how perceptrons (step activated neural networks) relate to SVMs:
Hyperplane based Classification: Perceptron and (Intro to) Support Vector Machines

By the way, did I mention you can visualize neural networks in three dimensions as well?

Experiment: 3d Visualization

Here are the two visualizers of neural networks I made for this post using WebGL2:
Neural Network Visualization 2D
Neural Network Visualization 3D

If you play around with this stuff and find anything interesting, please share!

Raytracing Reflection, Refraction, Fresnel, Total Internal Reflection, and Beer’s Law

This post talks about how to render images like the below in real time using ray tracing. Some realism in the images come from reflection and refraction, but the real icing on the cake comes from Fresnel, total internal reflection and Beer’s law. We’ll look at the contributions of these features individually and talk about how to properly combine them for the greatest and most realistic results (:

The renderings come from a shadertoy that accompanies this post: Shadertoy: Reflect Refract TIR Fresnel RayT

My motivation for learning more about this stuff is that I’m starting to make a marble madness inspired game, and I’m planning to do hybrid rendering between rasterization and ray based techniques.

This post will focus more on how to make these features work for you in ray tracing, and less about the reasons for why they work the way they do. This post is more about practical implementations, and less about rigorous explanations.

If you have any questions, comments, corrections or additions, feel free to leave in the comments section at the bottom, or feel free to hit me up on twitter at @Atrix256.

This post is assumes you know how to do basic raytracing with ambient, diffuse and specular lighting, like the image below, which we are going to start with:

Reflection

The first thing to talk about is reflection. More specifically we are going to be talking about SPECULAR reflection.

Specular is defined by the dictionary to mean “of, relating to, or having the properties of a mirror.”, so what we normally think of as reflection (like from a mirror) is in fact specular reflection.

There is non specular reflection, aka diffuse reflection, which just means that light is reflected off of a surface in a non mirror like way. This is accomplished with diffuse lighting where commonly we dot product the normal of a surface with the direction from the surface to the light to know how much to light that point on the surface.

If specular reflection is how mirrors reflect, and diffuse reflection is how regular diffuse surfaces work, then you might wonder what specular lighting is all about.

A specular highlight is actually just a cheap approximation to doing a mirror like specular reflection of a light source, so it is a cheap kind of specular reflection.

Let’s talk about how to do real mirror like specular reflection in a ray tracer.

When light hits a surface, some amount of the light will be reflected, and some amount of the light will be transmitted into the object. Transmitted light is used for the diffuse shading.

As you might imagine, the amount of light reflected plus the amount of light transmitted must equal the total amount of light that hit the surface. (note that some transmitted energy may be absorbed and given off as heat, or the object may be glowing, so may give off more light than received but let’s ignore that stuff for now.)

A common way to deal with this is to define a reflectivity of a surface as the amount of light it reflects in percent and use 100% minus that amount as the transmitted amount.

You might say that 2% of light that hits a surface reflects. That means that 98% of the light that hits a surface is transmitted and used for the diffuse shading.

When shading a point on the surface, you would calculate both the reflected color at that point on the surface, and the diffuse shaded color at that point, but you multiply the reflected color by 0.02 and the diffuse shaded color by 0.98 and add them together. Doing this gives a result like the below:

The higher the reflectivity percent, the more reflection you get, and the less diffuse shading you get. Turning down reflectivity has the opposite effect.

How do you calculate the reflected color of a point on a surface though?

You simply calculate the ray that reflected off of the surface, and calculate the color of what that ray hit.

To calculate a reflected ray, you need to know the direction that the ray was traveling when it hit the surface (The incident direction), you need to know the location that the ray hit the surface (the surface location), and you need to know the normal of the surface at the intersection point.

If you have those things you can calculate the reflected ray direction as this:

ReflectRayLocation = SurfaceLocation \\ ReflectRayDirection = IncidentDirection - 2 * SurfaceNormal * DotProduct(IncidentDirection, SurfaceNormal)

Note that in hlsl and glsl there is a function called “reflect” which takes the incident direction, and the surface normal, and returns you the reflected direction.

Doing the above is mathematically correct, but if you then try to raytrace from that ray, you may hit the same object you are reflecting off. One way to fight that problem is to push the ray positin a small amount away from the surface to make sure it misses it. You can do that for example like this:

ReflectRayLocation = ReflectRayLocation + ReflectRayDirection * 0.01

There are other ways to make sure you don’t hit the same object again, but pushing the ray away from the object a small amount really does work pretty nicely in practice.

Refraction

I mentioned in the last section that whatever light wasn’t reflected when it hit a surface was transmitted. I also said that the transmitted light was used for diffuse shading.

In reality, it’s passed through the “bidirectional scattering distribution function” aka BSDF. You may have heard the term “bidirectional reflection distribution function” aka BRDF. A BRDF only deals with the hemisphere (half a sphere) that surrounds the surface normal. The BSDF on the other hand deals with the full sphere surrounding a surface normal so BRDF is a subset of what is possible with the BSDF.

Because the BSDF deals with an entire sphere, that means that it can handle reflection (specular and non specular) like the BRDF can, but it can also deal with transparency and refraction, where some of the light travels THROUGH an object.

In a path tracer where everything is physically accurate and mathematically precise, we would be interested in dealing with a BSDF and integrating over the sphere, but since we are working with a ray tracer, our physical accuracy needs are a lot lower – we only want a result that looks plausible.

What we are going to do for our transparency is calculate a direction that the ray is going to travel through the object, ray trace that ray to get a color, and use the transmitted light (the portion of light that isn’t reflected) as a multiplier of that color, that we add to the reflected amount of light.

If we have an object with 10% reflectivity, and 90% transmittance, but use that transmitted light for transparency, we’ll have a rendering like below:

Now that we have transparency, let’s talk about refraction. Refraction is a physical phenomenon where light bends (“changes speed” i guess but that sounds a bit suspicious for light), as it hits a boundary between two different surfaces.

Every material has a refractive index, and in fact, may have different refractive indices per light frequency. For our purposes, we’ll assume surfaces have the same refractive index for every frequency of light. There’s a list of refractive indices for a lot of different materials here: Index of refraction

How a ray bends when it refracts depends on the ration of the refractive index that it’s leaving to the refractive index that it’s entering. AKA outside/inside.

HLSL and GLSL have a function called refract which take the incident vector, the surface normal vector, and that ration of refractive indices, and return the refracted ray.

When you do a raytrace down the refracted ray, you will have the same problem as when tracing the reflected ray, that you may hit the same surface you just hit again erroneously. To help that, you once again just move the ray slightly away from the surface.

RefractRayLocation = RefractRayLocation + RefractRayDirection * 0.01

Here is a rendering where the sphere has 10% reflectivity, 90% transmittance, an air refractive index of 1.0, and a refractive index of 1.125 for the sphere. You can see how the light bends as it goes through the object and looks pretty neat!

Fresnel

There is an interesting property in our world: If you look at something straight on, it’s the least reflective it will be. If you turn it nearly 90 degrees where it’s nearly edge on, it will be the most reflective it can be. Many surfaces will become almost perfectly reflective when you view them almost edge on. Go try it out with a wall in your house or a glass or other things.

Weird huh? That’s called Fresnel, and is something we can also make use of in ray tracing to get a more realistic image.

Instead of just always using the reflectivity amount of the surface, we use the Fresnel equation to figure out how much reflectivity an object should have based on the view angle versus the surface normal, so that when it’s more edge on it becomes more reflective. At minimum the reflectivity will be the reflectivity of the surface, and at maximum the reflectivity will be 100%.

The amount we transmit for either refraction or diffuse will be 100% minus however much percentage is reflective.

Here is the image showing normal reflection again:

Here is the image with Fresnel:

It looks quite a bit better with fresnel doesn’t it?!

Here’s a GLSL function of Schlick’s Fresnel approximation function. Notice that it takes the surface normal and incident vector, as well as the refractive index being left (n1) and the refractive index being entered (n2):

float FresnelReflectAmount (float n1, float n2, vec3 normal, vec3 incident)
{
        // Schlick aproximation
        float r0 = (n1-n2) / (n1+n2);
        r0 *= r0;
        float cosX = -dot(normal, incident);
        if (n1 > n2)
        {
            float n = n1/n2;
            float sinT2 = n*n*(1.0-cosX*cosX);
            // Total internal reflection
            if (sinT2 > 1.0)
                return 1.0;
            cosX = sqrt(1.0-sinT2);
        }
        float x = 1.0-cosX;
        float ret = r0+(1.0-r0)*x*x*x*x*x;

        // adjust reflect multiplier for object reflectivity
        ret = (OBJECT_REFLECTIVITY + (1.0-OBJECT_REFLECTIVITY) * ret);
        return ret;
}

Our tale of reflection is complete, so let’s go back to refraction / transparency and finish up the last two items.

Total Internal Reflection

The way that the Fresnel equation works, it’s possible that when moving from a material with a higher index of refraction to a lower one, that the amount of refraction can actually drop to zero percent. In this case, the light doesn’t exit the higher refractive index object and instead ONLY reflects back into the object, because the reflective amount becomes 100%.

When this happens, it’s called “Total Internal Reflection” for hopefully obvious reasons (:

There isn’t a whole lot to say about this, because you can see that this is even accounted for in the GLSL Fresnel function from the last section.

However, if you are ever under water in a swimming pool and look up to see the water surface looking like a mirror, that is total internal reflection in action.

You can also see it in the render below, where you can see reflections on the inside of the walls of the object, especially on the bottom (floor) of the object:

Beer’s Law

Beer’s law is the last item to talk about, and relates to transparent surfaces. Beer’s law deals with light being absorbed over distance as it travels through a material.

Beer’s law is why a thin piece of jello is mostly colorless, but a thicker piece of jello has a much richer and deeper color.

Here’s a cube with beer’s law absorbing red and green light over distance. You should notice that where the light travels less distance through the cube that it’s not as blue, because not as much red and green light has been absorbed:

To apply beer’s law, you first figure out how long a ray has traveled through the absorbing material (by tracing the ray inside the object to see where it hits the back side). You then do this calculation:

vec3 color = RayTrace(rayPos, rayDir);
vec3 absorb = exp(-OBJECT_ABSORB * absorbDistance);
color *= absorb;

OBJECT_ABSORB is an RGB value that describes how much of each color channel absorbs over distance. For example, a value of (8.0, 2.0, 0.1) would make red get absorbed the fastest, then green, then blue, so would result in a blueish, slightly green color object.

Putting it All Together

Now that we have the individual components worked out let’s talk about how to put it together.

Firstly, when a ray hits any surface, you need to use the Fresnel equation to get the multiplier for the reflected and transmitted light.

Next you calculate the reflected and transmitted light by recursively raytracing. The transmitted light is either used for the diffuse shading, the transparency/refracted ray, or some combination of those two (technically, it’s all up to the BSDF we are approximating).

Then, you multiply the reflected light by the reflected amount from the Fresnel equation, and the transmitted amount by 100%-reflectionAmount and add the results together.

(Quick side note, if you have emissive color on the surface aka the object glows, you would also add that in here).

Since raytracing is recursive, you would do this each time a ray intersected with an object. In other words, each intersection causes the ray to split into two rays.

As you can imagine, this can make the rendering quite complex, especially on the GPU where you can’t even do real recursion.

One way to help limit the recursiveness a bit is when you are calculating your reflection and transmittance amounts, you can choose a threshold like say 1% where if the reflection is under 1% it clamps it to 0%, and if it’s greater than 99% it clamps it at 100%. You can then choose not to recurse down a specific ray if the ray’s multiplier is 0. The end result will be that reflections or transmittance rays that don’t contribute much to the end result won’t be followed at all.

If you are willing to sacrifice some visual quality to not have to split your ray into two at each object intersection, you could also figure out if reflection or transmittance has the higher multiplier, and make the ray only follow one of the paths. If you were doing this in a path tracer, you could choose which one to follow randomly, using the multiplier as a weight for the random selection.

The problem in both of these two optimizations is that the multiplier is only half of the information though so may incorrectly choose the less meaningful contribution. The other half of the information is the color of the ray if you followed it. The reason for this is that you might have a low multiplier for a really bright spot (caustics have this problem commonly!), or vice versa you may have a high multiplier for a dull featureless spot. With path tracing, if you take enough samples, it all washes out in the averages, and with ray tracing, maybe you accept that it will do the wrong thing sometimes, to stay a real time algorithm, but it’s important to know how this type of choice can fail for you. (Side note, this sort of stuff is what importance sampling in path tracing is all about – trying to make rays follow more meaningful paths to get better results quicker).

When doing real time raytracing you also often have to decide how many times you want to allow a ray to bounce around. In the shadertoy that goes with this post, that parameter is MAX_RAY_BOUNCES and I have it set to 10.

Interestingly, setting it to 1 has no visible impact on the sphere at all, which is a nice improvement. For the box, a value of 3 seems to be the maximum it needs. 3 also seems to be the magic number for the geometric gem type shape.

So, 10 is overkill, but i left it at that in case people play with parameters and change them to values which would require more bounces.

Lastly I wanted to mention that in the scene that I rendered, I did a small “trick” to make it so I didn’t need to do full recursive splitting of rays at each intersection. I did this by making it so the main object in the center of the scene was the only object that had reflection.

This way, I only need to split the ray into two if i hit the main object. Furthermore, when I’m splitting the ray at the main object, the ray that gets the color for the outside world (versus the inside of the object) is a single non recursive ray cast since it can’t hit anything reflective. The result is that at each intersection of the sphere, i do a simple non recursive ray cast for the ray that is going outside of the main object, then i continue the iterative ray on the inside of the object until i run out of bounces.

Doing this causes a recursive process to become an iterative one, which is much friendlier on the gpu.

Below is the final render again from the shadertoy. The parameters are:

  • The refractive index of the air is 1.00029
  • The refractive index inside the objects are 1.125
  • Reflectivity is 1%
  • The absorption for beers law is (8.0, 8.0, 3.0)

Links

Shadertoy: Reflect Refract TIR Fresnel RayT
Reflections and Refractions in Ray Tracing
Path Tracing – Getting Started With Diffuse and Emissive

Incremental Least Squares Surface and Hyper-Volume Fitting

The last post showed how to fit a y=f(x) equation to a set of 2d data points, using least squares fitting. It allowed you to do this getting only one data point at a time, and still come up with the same answer as if you had all the data points at once, so it was an incremental, or “online” algorithm.

This post generalizes that process to equations of any dimension such as z=f(x,y), w=f(x,y,z) or greater.

Below is an image of a surface that is degree (2,2). This is a screenshot taken from the interactive webgl2 demo I made for this post: Least Squares Surface Fitting

How Do You Do It?

The two main players from the last post were the ATA matrix and the ATY vector. These two could be incrementally updated as new data points came in, which would allow you to do an incremental (or “online”) least squares fit of a curve.

When working with surfaces and volumes, you have the same things basically. Both the ATA matrix and the ATY vector still exist, but they contain slightly different information – which I’ll explain lower down. However, the ATY vector is renamed, since in the case of a surface it should be called ATZ, and for a volume it should be called ATW. I call it ATV to generalize it, where v stands for value, and represents the last component in a data point, which is the output value we are trying to fit given the input values. The input values are the rest of the components of the data point.

At the end, you once again need to solve the equation A^TA*c=A^Tv to calculate the coefficients (named c) of the equation.

It’s all pretty similar to fitting a curve, but the details change a bit. Let’s work through an example to see how it differs.

Example: Bilinear Surface Fitting

Let’s fit 4 data points to a bilinear surface, otherwise known as a surface that is linear on each axis, or a surface of degree(1,1):
(0,0,5)
(0,1,3)
(1,0,8)
(1,1,2)

Since we are fitting those data points with a bilinear surface, we are looking for a function that takes in x,y values and gives as output the z coordinate. We want a surface that gives us the closest answer possible (minimizing the sum of the squared difference for each input data point) for the data points we do have, so that we can give it other data points and get z values as output that approximate what we expect to see for that input.

A linear equation looks like this, with coefficients A and B:
y=Ax+B

Since we want a bilinear equation this time around, this is the equation we are going to end up with, after solving for the coefficients A,B,C,D:
y=Axy+Bx+Cy+D

The first step is to make the A matrix. In the last post, this matrix was made up of powers of the x coordinates. In this post, they are actually going to be made up of the permutation of powers of the x and y coordinates.

Last time the matrix looked like this:
A =  \begin{bmatrix} x_0^0 & x_0^1 & x_0^2 \\ x_1^0 & x_1^1 & x_1^2 \\ x_2^0 & x_2^1 & x_2^2 \\ x_3^0 & x_3^1 & x_3^2 \\ \end{bmatrix}

This time, the matrix is going to look like this:
A =  \begin{bmatrix} x_0^0y_0^0 & x_0^0y_0^1 & x_0^1y_0^0 & x_0^1y_0^1 \\ x_1^0y_1^0 & x_1^0y_1^1 & x_1^1y_1^0 & x_1^1y_1^1 \\ x_2^0y_2^0 & x_2^0y_2^1 & x_2^1y_2^0 & x_2^1y_2^1 \\ x_3^0y_3^0 & x_3^0y_3^1 & x_3^1y_3^0 & x_3^1y_3^1 \\ \end{bmatrix}

Simplifying that matrix a bit, it looks like this:
A =  \begin{bmatrix} 1 & y_0 & x_0 & x_0y_0 \\ 1 & y_1 & x_1 & x_1y_1 \\ 1 & y_2 & x_2 & x_2y_2 \\ 1 & y_3 & x_3 & x_3y_3 \\ \end{bmatrix}

To simplify it even further, there is one row in the A matrix per data point, where the row looks like this:
\begin{bmatrix} 1 & y & x & xy \\ \end{bmatrix}

You can see that every permutation of the powers of x and y for each data point is present in the matrix.

The A matrix for our data points is this:
A =  \begin{bmatrix} 1 & 0 & 0 & 0 \\ 1 & 1 & 0 & 0 \\ 1 & 0 & 1 & 0 \\ 1 & 1 & 1 & 1 \\ \end{bmatrix}

Next we need to calculate the ATA matrix by multiplying the transpose of that matrix, by that matrix.

A^TA =  \begin{bmatrix} 1 & 1 & 1 & 1 \\ 0 & 1 & 0 & 1 \\ 0 & 0 & 1 & 1 \\ 0 & 0 & 0 & 1 \\ \end{bmatrix} * \begin{bmatrix} 1 & 0 & 0 & 0 \\ 1 & 1 & 0 & 0 \\ 1 & 0 & 1 & 0 \\ 1 & 1 & 1 & 1 \\ \end{bmatrix} = \begin{bmatrix} 4 & 2 & 2 & 1 \\ 2 & 2 & 1 & 1 \\ 2 & 1 & 2 & 1 \\ 1 & 1 & 1 & 1 \\ \end{bmatrix}

Taking the inverse of that matrix we get this:

(A^TA)^{-1} =  \begin{bmatrix} 1 & -1 & -1 & 1 \\ -1 & 2 & 1 & -2 \\ -1 & 1 & 2 & -2 \\ 1 & -2 & -2 & 4 \\ \end{bmatrix}

Next we need to calculate the ATV vector (formerly known as ATY). We calculate that by multiplying the transpose of the A matrix by the Z values:

A^TV =  \begin{bmatrix} 1 & 1 & 1 & 1 \\ 0 & 1 & 0 & 1 \\ 0 & 0 & 1 & 1 \\ 0 & 0 & 0 & 1 \\ \end{bmatrix} * \begin{bmatrix} 5 \\ 3 \\ 8 \\ 2 \\ \end{bmatrix} = \begin{bmatrix} 18 \\ 5 \\ 10 \\ 2 \\ \end{bmatrix}

Lastly we multiply the inversed ATA matrix by the ATV vector to get our coefficients.

\begin{bmatrix} 1 & -1 & -1 & 1 \\ -1 & 2 & 1 & -2 \\ -1 & 1 & 2 & -2 \\ 1 & -2 & -2 & 4 \\ \end{bmatrix} * \begin{bmatrix} 18 \\ 5 \\ 10 \\ 2 \\ \end{bmatrix} = \begin{bmatrix} 5 \\ -2 \\ 3 \\ -4 \\ \end{bmatrix}

In the last post, the coefficients we got out were in x power order, so the first (top) was for the x^0 term, the next was for the x^1 term etc.

This time around, the coefficients are in the same order as the permutations of the powers of x and y:
\begin{bmatrix} 1 & y & x & xy \\ \end{bmatrix}

That makes our final equation this:
z = -4xy+3x-2y+5

If you plug in the (x,y) values from the data set we fit, you’ll see that you get the corresponding z values as output. We perfectly fit the data set!

The process isn’t too different from last post and not too difficult either right?

Let’s see if we can generalize and formalize things a bit.

Some Observations

Firstly you may be wondering how we come up with the correct permutation of powers of our inputs. It actually doesn’t matter so long as you are consistent. You can have your A matrix rows have the powers in any order, so long as all orders are present, and you use the same order in all operations.

Regarding storage sizes needed, the storage of surfaces and (hyper) volumes are a bit different and generally larger than curves.

To see how, let’s look at the powers of the ATA matrix of a bilinear surface, using the ordering of powers that we used in the example:

\begin{bmatrix} x^0y^0 & x^0y^1 & x^1y^0 & x^1y^1 \\ x^0y^1 & x^0y^2 & x^1y^1 & x^1y^2 \\ x^1y^0 & x^1y^1 & x^2y^0 & x^2y^1 \\ x^1y^1 & x^1y^2 & x^2y^1 & x^2y^2 \\ \end{bmatrix}

Let’s rewrite it as just the powers:

\begin{bmatrix} 00 & 01 & 10 & 11 \\ 01 & 02 & 11 & 12 \\ 10 & 11 & 20 & 21 \\ 11 & 12 & 21 & 22 \\ \end{bmatrix}

And the permutation we used as just powers to help us find the pattern in the powers of x and y in the ATA matrix:
\begin{bmatrix} 00 & 01 & 10 & 11 \\ \end{bmatrix}

Can you find the pattern of the powers used at the different spots in the ATA matrix?

I had to stare at it for a while before I figured it out but it’s this: For the i,j location in the ATA matrix, the powers of x and y are the powers of x and y in the i permutation added to the powers of x and y in the j permutation.

For example, A^TA_{0,2} has xy powers of 10. Permutation 0 has powers of 0,0 and permutation 2 has powers of 1,0, so we add those together to get powers 1,0.

Another example, A^TA_{2,3} has xy powers of 21. Permutation 2 has powers of 1,0 and permutation 3 has powers 1,1. Adding those together we get 2,1 which is correct.

That’s a bit more complex than last post, not too much more difficult to construct the ATA matrix directly – and also construct it incrementally as new data points come in!

How many unique values are there in the ATA matrix though? We need to know this to know how much storage we need.

In the last post, we needed (degree+1)*2–1 values to store the unique ATA matrix values. That can also be written as degree*2+1.

It turns out that when generalizing this to surfaces and volumes, that we need to take the product of that for each axis.

For instance, a surface has ((degreeX*2)+1)*((degreeY*2)+1) unique values. A volume has ((degreeX*2)+1)*((degreeY*2)+1)*((degreeZ*2)+1) unique values.

The pattern continues for higher dimensions, as well as lower, since you can see how in the curve case, it’s the same formula as it was before.

For the same ATA matrix size, a surface has more unique values than a curve does.

As far as what those values actually are, they are the full permutations of the powers of a surface (or hyper volume) that is one degree higher on each axis. For a bilinear surface, that means the 9 permutations of x and y for powers 0,1 and 2:
x^0y^0,x^0y^1,x^0y^2,x^1y^0,x^1y^1,x^1y^2,x^2y^0,x^2y^1,x^2y^2
Or simplified:
1,y,y^2,x,xy,xy^2,x^2,x^2y,x^2y^2

What about the ATV vector?

For the bilinear case, The ATV vector is the sums of the permutations of x,y multiplied by z, for every data point. In other words, you add this to ATV for each data point:
\begin{bmatrix} z & yz & xz & xyz \\ \end{bmatrix}

How much storage space do we need in general for the ATV vector then? it’s the product of (degree+1) for each axis.

For instance, a surface has (degreeX+1)*(degreeY+1) values in ATV, and a volume has (degreeX+1)*(degreeY+1)*(degreeZ+1).

You may also be wondering how many data points are required minimum to fit a curve, surface or hypervolume to a data set. The answer is that you need as many data points as there are terms in the polynomial. We are trying to solve for the polynomial coefficients, so there are as many unknowns as there are polynomial terms.

How many polynomial terms are there? There are as many terms as there are permutations of the axes powers involved. In other words, the size of ATV is also the minimum number of points you need to fit a curve, surface, or hypervolume to a data set.

Measuring Quality of a Fit

You are probably wondering if there’s a way to calculate how good of a fit you have for a given data set. It turns out that there are a few ways to calculate a value for this.

The value I use in the code below and in the demos is called R^2 or residue squared.

First you calculate the average (mean) output value from the input data set.

Then you calculate SSTot which is the sum of the square of the mean subtracted from each input point’s output value. Pseudo code:

SSTot = 0;
for (point p in points)
  SSTot += (p.out - mean)^2;

You then calculate SSRes which is the sum of the square of the fitted function evaluated at a point, subtracted from each input points’ output value. Pseudo code:

SSRes= 0;
for (point p in points)
  SSRes += (p.out - f(p.in))^2;

The final value for R^2 is 1-SSRes/SSTot.

The value is nice because it’s unitless, and since SSRes and SSTot is a sum of squares, SSRes/SSTot is basically the value that the fitting algorithm minimizes. The value is subtracted from 1 so that it’s a fit quality metric. A value of 0 is a bad fit, and a value of 1 is a good fit and generally it will be between those values.

If you want to read more about this, check out this link: Coefficient of Determination

Example Code

Here is a run from the sample code:

And here is the source code:

#include <stdio.h>
#include <array>

#define FILTER_ZERO_COEFFICIENTS true // if false, will show terms which have a coefficient of 0

//====================================================================
template<size_t N>
using TVector = std::array<float, N>;

template<size_t M, size_t N>
using TMatrix = std::array<TVector<N>, M>;

//====================================================================
// Specify a degree per axis.
// 1 = linear, 2 = quadratic, etc
template <size_t... DEGREES>
class COnlineLeastSquaresFitter
{
public:
    COnlineLeastSquaresFitter ()
    {
        // initialize our sums to zero
        std::fill(m_SummedPowers.begin(), m_SummedPowers.end(), 0.0f);
        std::fill(m_SummedPowersTimesValues.begin(), m_SummedPowersTimesValues.end(), 0.0f);
    }

	// Calculate how many summed powers we need.
	// Product of degree*2+1 for each axis.
	template <class T>
	constexpr static size_t NumSummedPowers(T degree)
	{
		return degree * 2 + 1;
	}
	template <class T, class... DEGREES>
	constexpr static size_t NumSummedPowers(T first, DEGREES... degrees)
	{
		return NumSummedPowers(first) * NumSummedPowers(degrees...);
	}

	// Calculate how many coefficients we have for our equation.
	// Product of degree+1 for each axis.
	template <class T>
	constexpr static size_t NumCoefficients(T degree)
	{
		return (degree + 1);
	}
	template <class T, class... DEGREES>
	constexpr static size_t NumCoefficients(T first, DEGREES... degrees)
	{
		return NumCoefficients(first) * NumCoefficients(degrees...);
	}

	// Helper function to get degree of specific axis
	static size_t Degree (size_t axisIndex)
	{
		static const std::array<size_t, c_dimension-1> c_degrees = { DEGREES... };
		return c_degrees[axisIndex];
	}

	// static const values
	static const size_t c_dimension = sizeof...(DEGREES) + 1;
	static const size_t c_numCoefficients = NumCoefficients(DEGREES...);
	static const size_t c_numSummedPowers = NumSummedPowers(DEGREES...);

	// Typedefs
	typedef TVector<c_numCoefficients> TCoefficients;
	typedef TVector<c_dimension> TDataPoint;

	// Function for converting from an index to a specific power permutation
	static void IndexToPowers (size_t index, std::array<size_t, c_dimension-1>& powers, size_t maxDegreeMultiply, size_t maxDegreeAdd)
	{
		for (int i = c_dimension-2; i >= 0; --i)
		{
			size_t degree = Degree(i) * maxDegreeMultiply + maxDegreeAdd;
			powers[i] = index % degree;
			index = index / degree;
		}
	}

	// Function for converting from a specific power permuation back into an index
	static size_t PowersToIndex (std::array<size_t, c_dimension - 1>& powers, size_t maxDegreeMultiply, size_t maxDegreeAdd)
	{
		size_t ret = 0;
		for (int i = 0; i < c_dimension - 1; ++i)
		{
			ret *= Degree(i) * maxDegreeMultiply + maxDegreeAdd;
			ret += powers[i];
		}
		return ret;
	}

	// Add a datapoint to our fitting
    void AddDataPoint (const TDataPoint& dataPoint)
    {
		// Note: It'd be a good idea to memoize the powers and calculate them through repeated
		// multiplication, instead of calculating them on demand each time, using std::pow.

        // add the summed powers of the input values
		std::array<size_t, c_dimension-1> powers;
        for (size_t i = 0; i < m_SummedPowers.size(); ++i)
        {
			IndexToPowers(i, powers, 2, 1);
			float valueAdd = 1.0;
			for (size_t j = 0; j < c_dimension - 1; ++j)
				valueAdd *= (float)std::pow(dataPoint[j], powers[j]);
			m_SummedPowers[i] += valueAdd;
        }

        // add the summed powers of the input value, multiplied by the output value
        for (size_t i = 0; i < m_SummedPowersTimesValues.size(); ++i)
        {
			IndexToPowers(i, powers, 1, 1);
			float valueAdd = dataPoint[c_dimension - 1];
			for (size_t j = 0; j < c_dimension-1; ++j)
				valueAdd *= (float)std::pow(dataPoint[j], powers[j]);
			m_SummedPowersTimesValues[i] += valueAdd;
        }
    }

	// Get the coefficients of the equation fit to the points
    bool CalculateCoefficients (TCoefficients& coefficients) const
    {
		// make the ATA matrix
		std::array<size_t, c_dimension - 1> powersi;
		std::array<size_t, c_dimension - 1> powersj;
		std::array<size_t, c_dimension - 1> summedPowers;
		TMatrix<c_numCoefficients, c_numCoefficients> ATA;
		for (size_t j = 0; j < c_numCoefficients; ++j)
		{
			IndexToPowers(j, powersj, 1, 1);

			for (size_t i = 0; i < c_numCoefficients; ++i)
			{
				IndexToPowers(i, powersi, 1, 1);

				for (size_t k = 0; k < c_dimension - 1; ++k)
					summedPowers[k] = powersi[k] + powersj[k];

				size_t summedPowersIndex = PowersToIndex(summedPowers, 2, 1);
				ATA[j][i] = m_SummedPowers[summedPowersIndex];
			}
		}

		// solve: ATA * coefficients = m_SummedPowers
		// for the coefficients vector, using Gaussian elimination.
		coefficients = m_SummedPowersTimesValues;
		for (size_t i = 0; i < c_numCoefficients; ++i)
		{
			for (size_t j = 0; j < c_numCoefficients; ++j)
			{
				if (ATA[i][i] == 0.0f)
					return false;

				float c = ((i == j) - ATA[j][i]) / ATA[i][i];
				coefficients[j] += c*coefficients[i];
				for (size_t k = 0; k < c_numCoefficients; ++k)
					ATA[j][k] += c*ATA[i][k];
			}
		}

		// Note: this is the old, "bad" way to solve the equation using matrix inversion.
		// It's a worse choice for larger matrices, and surfaces and volumes use larger matrices than curves in general.
		/*
		// Inverse the ATA matrix
		TMatrix<c_numCoefficients, c_numCoefficients> ATAInverse;
		if (!InvertMatrix(ATA, ATAInverse))
			return false;

		// calculate the coefficients
		for (size_t i = 0; i < c_numCoefficients; ++i)
			coefficients[i] = DotProduct(ATAInverse[i], m_SummedPowersTimesValues);
		*/

		return true;
    }

private:
	//Storage Requirements:
	// Summed Powers = Product of degree*2+1 for each axis.
	// Summed Powers Times Values = Product of degree+1 for each axis.
    TVector<c_numSummedPowers>		m_SummedPowers;
	TVector<c_numCoefficients>		m_SummedPowersTimesValues;
};

//====================================================================
char AxisIndexToLetter (size_t axisIndex)
{
	// x,y,z,w,v,u,t,....
	if (axisIndex < 3)
		return 'x' + char(axisIndex);
	else
		return 'x' + 2 - char(axisIndex);
}

//====================================================================
template <class T, size_t M, size_t N>
float EvaluateFunction (const T& fitter, const TVector<M>& dataPoint, const TVector<N>& coefficients)
{
	float ret = 0.0f;
	for (size_t i = 0; i < coefficients.size(); ++i)
	{
		// start with the coefficient
		float term = coefficients[i];

		// then the powers of the input variables
		std::array<size_t, T::c_dimension - 1> powers;
		fitter.IndexToPowers(i, powers, 1, 1);
		for (size_t j = 0; j < powers.size(); ++j)
			term *= (float)std::pow(dataPoint[j], powers[j]);

		// add this term to our return value
		ret += term;
	}
	return ret;
}

//====================================================================
template <size_t... DEGREES>
void DoTest (const std::initializer_list<TVector<sizeof...(DEGREES)+1>>& data)
{
	// say what we are are going to do
	printf("Fitting a function of degree (");
	for (size_t i = 0; i < COnlineLeastSquaresFitter<DEGREES...>::c_dimension - 1; ++i)
	{
		if (i > 0)
			printf(",");
		printf("%zi", COnlineLeastSquaresFitter<DEGREES...>::Degree(i));
	}
	printf(") to %zi data points: n", data.size());

	// show input data points
	for (const COnlineLeastSquaresFitter<DEGREES...>::TDataPoint& dataPoint : data)
	{
		printf("  (");
		for (size_t i = 0; i < dataPoint.size(); ++i)
		{
			if (i > 0)
				printf(", ");
			printf("%0.2f", dataPoint[i]);
		}
		printf(")n");
	}

	// fit data
	COnlineLeastSquaresFitter<DEGREES...> fitter;
    for (const COnlineLeastSquaresFitter<DEGREES...>::TDataPoint& dataPoint : data)
        fitter.AddDataPoint(dataPoint);

	// calculate coefficients if we can
	COnlineLeastSquaresFitter<DEGREES...>::TCoefficients coefficients;
	bool success = fitter.CalculateCoefficients(coefficients);
	if (!success)
	{
		printf("Could not calculate coefficients!nn");
		return;
	}

	// print the polynomial
	bool firstTerm = true;
	printf("%c = ", AxisIndexToLetter(sizeof...(DEGREES)));
    bool showedATerm = false;
	for (int i = (int)coefficients.size() - 1; i >= 0; --i)
	{
		// don't show zero terms
		if (FILTER_ZERO_COEFFICIENTS && std::abs(coefficients[i]) < 0.00001f)
			continue;

        showedATerm = true;

		// show an add or subtract between terms
		float coefficient = coefficients[i];
		if (firstTerm)
			firstTerm = false;
		else if (coefficient >= 0.0f)
			printf(" + ");
		else
		{
			coefficient *= -1.0f;
			printf(" - ");
		}

		printf("%0.2f", coefficient);

		std::array<size_t, COnlineLeastSquaresFitter<DEGREES...>::c_dimension - 1> powers;
		fitter.IndexToPowers(i, powers, 1, 1);

		for (size_t j = 0; j < powers.size(); ++j)
		{
			if (powers[j] > 0)
				printf("%c", AxisIndexToLetter(j));
			if (powers[j] > 1)
				printf("^%zi", powers[j]);
		}
	}
    if (!showedATerm)
        printf("0");
	printf("n");

	// Calculate and show R^2 value.
	float rSquared = 1.0f;
	if (data.size() > 0)
	{
		float mean = 0.0f;
		for (const COnlineLeastSquaresFitter<DEGREES...>::TDataPoint& dataPoint : data)
			mean += dataPoint[sizeof...(DEGREES)];
		mean /= data.size();
		float SSTot = 0.0f;
		float SSRes = 0.0f;
		for (const COnlineLeastSquaresFitter<DEGREES...>::TDataPoint& dataPoint : data)
		{
			float value = dataPoint[sizeof...(DEGREES)] - mean;
			SSTot += value*value;

			value = dataPoint[sizeof...(DEGREES)] - EvaluateFunction(fitter, dataPoint, coefficients);
			SSRes += value*value;
		}
		if (SSTot != 0.0f)
			rSquared = 1.0f - SSRes / SSTot;
	}
	printf("R^2 = %0.4fnn", rSquared);
}

//====================================================================
int main (int argc, char **argv)
{
	// bilinear - 4 data points
	DoTest<1, 1>(
		{
			TVector<3>{ 0.0f, 0.0f, 5.0f },
			TVector<3>{ 0.0f, 1.0f, 3.0f },
			TVector<3>{ 1.0f, 0.0f, 8.0f },
			TVector<3>{ 1.0f, 1.0f, 2.0f },
		}
	);

	// biquadratic - 9 data points
	DoTest<2, 2>(
		{
			TVector<3>{ 0.0f, 0.0f, 8.0f },
			TVector<3>{ 0.0f, 1.0f, 4.0f },
			TVector<3>{ 0.0f, 2.0f, 6.0f },
			TVector<3>{ 1.0f, 0.0f, 5.0f },
			TVector<3>{ 1.0f, 1.0f, 2.0f },
			TVector<3>{ 1.0f, 2.0f, 1.0f },
			TVector<3>{ 2.0f, 0.0f, 7.0f },
			TVector<3>{ 2.0f, 1.0f, 9.0f },
			TVector<3>{ 2.0f, 2.5f, 12.0f },
		}
	);

	// trilinear - 8 data points
	DoTest<1, 1, 1>(
		{
			TVector<4>{ 0.0f, 0.0f, 0.0f, 8.0f },
			TVector<4>{ 0.0f, 0.0f, 1.0f, 4.0f },
			TVector<4>{ 0.0f, 1.0f, 0.0f, 6.0f },
			TVector<4>{ 0.0f, 1.0f, 1.0f, 5.0f },
			TVector<4>{ 1.0f, 0.0f, 0.0f, 2.0f },
			TVector<4>{ 1.0f, 0.0f, 1.0f, 1.0f },
			TVector<4>{ 1.0f, 1.0f, 0.0f, 7.0f },
			TVector<4>{ 1.0f, 1.0f, 1.0f, 9.0f },
		}
	);

	// trilinear - 9 data points
	DoTest<1, 1, 1>(
		{
			TVector<4>{ 0.0f, 0.0f, 0.0f, 8.0f },
			TVector<4>{ 0.0f, 0.0f, 1.0f, 4.0f },
			TVector<4>{ 0.0f, 1.0f, 0.0f, 6.0f },
			TVector<4>{ 0.0f, 1.0f, 1.0f, 5.0f },
			TVector<4>{ 1.0f, 0.0f, 0.0f, 2.0f },
			TVector<4>{ 1.0f, 0.0f, 1.0f, 1.0f },
			TVector<4>{ 1.0f, 1.0f, 0.0f, 7.0f },
			TVector<4>{ 1.0f, 1.0f, 1.0f, 9.0f },
			TVector<4>{ 0.5f, 0.5f, 0.5f, 12.0f },
		}
	);

	// Linear - 2 data points
    DoTest<1>(
        {
            TVector<2>{ 1.0f, 2.0f },
            TVector<2>{ 2.0f, 4.0f },
        }
    );

	// Quadratic - 4 data points
    DoTest<2>(
        {
            TVector<2>{ 1.0f, 5.0f },
			TVector<2>{ 2.0f, 16.0f },
			TVector<2>{ 3.0f, 31.0f },
			TVector<2>{ 4.0f, 16.0f },
        }
    );

	// Cubic - 4 data points
    DoTest<3>(
        {
            TVector<2>{ 1.0f, 5.0f },
            TVector<2>{ 2.0f, 16.0f },
			TVector<2>{ 3.0f, 31.0f },
			TVector<2>{ 4.0f, 16.0f },
        }
    );

    system("pause");
    return 0;
}

Closing

The next logical step here for me would be to figure out how to break the equation for a surface or hypervolume up into multiple equations, like you’d have with a tensor product surface/hypervolume equation. It would also be interesting to see how to convert from these multidimensional polynomials to multidimensional Bernstein basis functions, which are otherwise known as Bezier rectangles (and Bezier hypercubes i guess).

The last post inverted the ATA matrix and multiplied by ATY to get the coefficients. Thanks to some feedback on reddit, I found out that is NOT how you want to solve this sort of equation. I ended up going with Gaussian elimination for this post which is more numerically robust while also being less computation to calculate. There are other options out there too that may be even better choices. I’ve found out that in general, if you are inverting a matrix in code, or even just using an inverted matrix that has already been given to you, you are probably doing it wrong. You can read more about that here: John D. Cook: Don’t invert that matrix.

I didn’t go over what to do if you don’t have enough data points because if you find yourself in that situation, you can either decrease the degree of one of the axes, or you could remove and axis completely if you wanted to. It’s situational and ambiguous what parameter to decrease when you don’t have enough data points to fit a specific curve or hypervolume, but it’s still possible to decay the fit to a lower degree or dimension if you hit this situation, because you will already have all the values you need in the ATA matrix values and the ATV vector. I leave that to you to decide how to handle it in your own usage cases. Something interesting to note is that ATA[0][0] is STILL the count of how many data points you have, so you can use this value to know how much you need to decay your fit to be able to handle the data set.

In the WebGL2 demo I mention, I use a finite difference method to calculate the normals of the surface, however since the surface is described by a polynomial, it’d be trivial to calculate the coefficients for the equations that described the partial derivatives of the surface for each axis and use those instead.

I also wanted to mention that in the case of surfaces and hypervolumes it’s still possible to get an imperfect fit to your data set, even though you may give the exact minimum required number of control points. The reason for this is that not all axes are necesarily created equal. If you have a surface of degree (1,2) it’s linear on the x axis, but quadratic on the y axis, and requires a minimum of 6 data points to be able to fit a data set. As you can imagine, it’s possible to give data points such that the data points ARE NOT LINEAR on the x axis. When this happens, the surface will not be a perfect fit.

Lastly, you may be wondering how to fit data sets where there is more than one output value, like an equation of the form (z,w)=f(x,y).

I’m not aware of any ways to least square fit that as a whole, but apparently a common practice is to fit one equation to z and another to w and treat them independently. There is a math stack exchange question about that here: Math Stack Exchange: Least square fitting multiple values

Here is the webgl demo that goes with this post again:
Least Squares Surface Fitting

Thanks for reading, and please speak up if you have anything to add or correct, or a comment to make!

Incremental Least Squares Curve Fitting

This Post In Short:

  • Fit a curve of degree N to a data set, getting data points 1 at a time.
  • Storage Required: 3*N+2 values.
  • Update Complexity: roughly 3*N+2 additions and multiplies.
  • Finalize Complexity: Solving Ax=b where A is an (N+1)x(N+1) matrix and b is a known vector. (Sample code inverts A matrix and multiplies by b, Gaussian elimination is better though).
  • Simple C++ code and HTML5 demo at bottom!

I was recently reading a post from a buddy on OIT or “Order Independent Transparency” which is an open problem in graphics:
Fourier series based OIT and why it won’t work

In the article he talks about trying to approximate a function per pixel and shows the details of some methods he tried. One of the difficulties with the problem is that during a render you can get any number of triangles affecting a specific pixel, but you need a fixed and bounded size amount of storage per pixel for those variable numbers of data points.

That made me wonder: Is there an algorithm that can approximate a data set with a function, getting only one data point at a time, and end up with a decent approximation?

It turns out that there is one, at least one that I am happy with: Incremental Least Squares Curve Fitting.

While this perhaps doesn’t address all the problems that need addressing for OIT specifically, I think this is a great technique for programming in general, and I’m betting it still has it’s uses in graphics, for other times when you want to approximate a data set per pixel.

We’ll work through a math oriented way to do it, and then we’ll convert it into an equivalent and simpler programmer friendly version.

At the bottom of the post is some simple C++ that implements everything we talk about and the image below is a screenshot of an an interactive HTML5 demo I made: Least Squares Curve Fitting

Mathy Version

I found out about this technique by asking on math stack exchange and got a great (if not mathematically dense!) answer:
Math Stack Exchange: Creating a function incrementally

I have to admit, I’m not so great with matrices outside of the typical graphics/gamedev usage cases of transormation and related, so it took me a few days to work through it and understand it all. If reading that answer made your eyes go blurry, give my explanation a shot. I’m hoping I gave step by step details enough such that you too can understand what the heck he was talking about. If not, let me know where you got lost and I can explain better and update the post.

The first thing we need to do is figure out what degree of a function we want to approximate our data with. For our example we’ll pick a degree 2 function, also known as a quadratic function. That means that when we are done we will get out a function of the form below:

y=ax^2+bx+c

We will give data points to the equation and it will calculate the values of a,b and c that approximate our function by minimizing the sum of the squared distance from each point to the curve.

We’ll deal with regular least squared fitting before moving onto incremental, so here’s the data set we’ll be fitting our quadratic curve to:

(1,5),(2,16),(3,31),(4,50)

The x values in my data set start at 1 and count up by 1, but that is not a requirement. You can use whatever x and y values you want to fit a curve to.

Next we need to calculate the matrix A, where A_{jk} = x_j^k and the matrix has NumDataPoints rows and Degree+1 columns. It looks like the below for a quadratic curve fitting 4 data points:

A =  \begin{bmatrix} x_0^0 & x_0^1 & x_0^2 \\ x_1^0 & x_1^1 & x_1^2 \\ x_2^0 & x_2^1 & x_2^2 \\ x_3^0 & x_3^1 & x_3^2 \\ \end{bmatrix}

When we plug in our specific x values we get this:

A =  \begin{bmatrix} 1^0 & 1^1 & 1^2 \\ 2^0 & 2^1 & 2^2 \\ 3^0 & 3^1 & 3^2 \\ 4^0 & 4^1 & 4^2 \\ \end{bmatrix}

Calculating it out we get this:

A =  \begin{bmatrix} 1 & 1 & 1 \\ 1 & 2 & 4 \\ 1 & 3 & 9 \\ 1 & 4 & 16 \\ \end{bmatrix}

Next we need to calculate the matrix A^TA, which we do below by multiplying the transpose of A by A:

A^TA =  \begin{bmatrix} 1 & 1 & 1 & 1 \\ 1 & 2 & 3 & 4 \\ 1 & 4 & 9 & 16 \\ \end{bmatrix} * \begin{bmatrix} 1 & 1 & 1 \\ 1 & 2 & 4 \\ 1 & 3 & 9 \\ 1 & 4 & 16 \\ \end{bmatrix} = \begin{bmatrix} 4 & 10 & 30 \\ 10 & 30 & 100 \\ 30 & 100 & 354 \\ \end{bmatrix}

Next we need to find the inverse of that matrix to get (A^TA)^{-1}. The inverse is:

(A^TA)^{-1} =  \begin{bmatrix} 31/4 & -27/4 & 5/4 \\ -27/4 & 129/20 & -5/4 \\ 5/4 & -5/4 & 1/4 \\ \end{bmatrix}

The next thing we need to calculate is A^TY, which is the transpose of A multiplied by all of the Y values of our data:

A^TY =  \begin{bmatrix} 1 & 1 & 1 & 1 \\ 1 & 2 & 3 & 4 \\ 1 & 4 & 9 & 16 \\ \end{bmatrix} * \begin{bmatrix} 5 \\ 16 \\ 31 \\ 50 \\ \end{bmatrix} = \begin{bmatrix} 102 & 330 & 1148 \\ \end{bmatrix}

And finally, to calculate the coefficients of our quadratic function, we need to calculate (A^TA)^{-1}*A^TY:

(A^TA)^{-1}*A^TY = \begin{bmatrix} 31/4 & -27/4 & 5/4 \\ -27/4 & 129/20 & -5/4 \\ 5/4 & -5/4 & 1/4 \\ \end{bmatrix} * \begin{bmatrix} 102 \\ 330 \\ 1148 \\ \end{bmatrix} = \begin{bmatrix} -2 & 5 & 2 \\ \end{bmatrix}

Those coefficients are listed in power order of x, so the first value -2 is the coefficient for x^0, 5 is the coefficient for x^1 and 2 is the coefficient for x^2. That gives us the equation:

y=2x^2+5x-2

If you plug in the x values from our data set, you’ll find that this curve perfectly fits all 4 data points.

It won’t always be (and usually won’t be) that a resulting curve matches the input set for all values. It just so happened that this time it does. The only guarantee you’ll get when fitting a curve to the data points is that the squared distance of the point to the curve (distance on the Y axis only, so vertical distance), is minimized for all data points.

Now that we’ve worked through the math, let’s make some observations and make it more programmer friendly.

Making it Programmer Friendly

Let’s look at the A^TA matrix again:

\begin{bmatrix} 4 & 10 & 30 \\ 10 & 30 & 100 \\ 30 & 100 & 354 \\ \end{bmatrix}

One thing you probably noticed right away is that it’s symmetric across the diagonal. Another thing you may have noticed is that there are only 5 unique values in that matrix.

As it turns out, those 5 values are just the sum of the x values, when those x values are raised to increasing powers.

  • If you take all x values of our data set, raise them to the 0th power and sum the results, you get 4.
  • If you take all x values of our data set, raise them to the 1st power and sum the results, you get 10.
  • If you take all x values of our data set, raise them to the 2nd power and sum the results, you get 30.
  • If you take all x values of our data set, raise them to the 3rd power and sum the results, you get 100.
  • If you take all x values of our data set, raise them to the 4th power and sum the results, you get 354.

Further more, the power of the x values in each part of the matrix is the zero based x axis index plus the zero based y axis index. Check out what i mean below, which shows which power the x values are taken to before being summed for each location in the matrix:

\begin{bmatrix} 0 & 1 & 2 \\ 1 & 2 & 3 \\ 2 & 3 & 4 \\ \end{bmatrix}

That is interesting for two reasons…

  1. This tells us that we only really need to store the 5 unique values, and that we can reconstruct the full matrix later when it’s time to calculate the coefficients.
  2. It also tells us that if we’ve fit a curve to some data points, but then want to add a new data point, that we can just raise the x value of our new data point to the different powers and add it into these 5 values we already have stored. In other words, the A^TA matrix can be incrementally adjusted as new data comes in.

This generalizes beyond quadratic functions too luckily. If you are fitting your data points with a degree N curve, the A^TA matrix will have N+1 rows, and N+1 columns, but will only have (N+1)*2-1 unique values stored in it. Those values will be the sum of the x values taken from the 0th power up to the (N+1)*2-2th power.

As a concrete example, a cubic fit will have an A^TA array that is 4×4, which will only have 7 unique values stored in it. Those values will be the x values raised to the 0th power and summed, all the way up to the x values raised to the 6th power and summed.

So, the A^TA matrix has a fixed storage amount of (degree+1)*2 – 1 values, and it can be incrementally updated.

That is great, but there is another value we need to look at too, which is the A^TY vector. Let’s see that again:

\begin{bmatrix} 102 & 330 & 1148 \\ \end{bmatrix}

There are some patterns to this vector too luckily. You may have noticed that the first entry is the sum of the Y values from our data set. It’s actually the sum of the y values multiplied by the x values raised to the 0th power.

The next number is the sum of the y values multiplied by the x values raised to the 1st power, and so on.

To generalize it, each entry in that vector is the sum of taking the x from each data point, raising it to the power that is the index in the vector, and multiplying it by the y value.

  • Taking each data point’s x value, raising it to the 0th power, multiplying by the y value, and summing the results gives you 102.
  • Taking each data point’s x value, raising it to the 1st power, multiplying by the y value, and summing the results gives you 330.
  • Taking each data point’s x value, raising it to the 2nd power, multiplying by the y value, and summing the results gives you 1148.

So, this vector is incrementally updatable too. When you get a new data point, for each entry in the vector, you take the x value to the specific power, multiply by y, and add that result to the entry in the vector.

This generalizes for other curve types as well. If you are fitting your data points with a degree N curve, the A^TY vector will have N+1 entries, corresponding to the powers: 0,1,…N.

As a concrete example, a cubic fit will have an A^TY vector of size 4, corresponding to the powers: 0,1,2,3.

Combining the storage needs of the values needed for the A^TA matrix, as well as the values needed for the A^TY vector, the amount of storage we need for a degree N curve fit is 3*N+2 values.

Algorithm Summarized

Here is a summary of the algorithm:

  1. First decide on the degree of the fit you want. Call it N.
  2. Ensure you have storage space for 3*N+2 values and initialize them all to zero. These represent the (N+1)*2-1 values needed for the A^TA matrix values, as well as the N+1 values needed for the A^TY vector.
  3. For each data point you get, you will need to update both the A^TA matrix values, as well as the A^TY vector valuess. (Note that there are not the same number of values in ATA and ATY!)
    • for(i in ATA) ATA[i] += x^i
    • for(i in ATY) ATY[i] += x^i*y
  4. When it’s time to calculate the coefficients of your polynomial, convert the ATA values back into the A^TA matrix, invert it and multiply that by the A^TY value.

Pretty simple right?

Not Having Enough Points

When working through the mathier version of this algorithm, you may have noticed that if we were trying to fit using a degree N curve, that we needed N+1 data points at minimum for the math to even be able to happen.

So, you might ask, what happens in the real world, such as in a pixel shader, where we decide to do a cubic fit, but end up only getting 1 data point, instead of the 4 minimum that we need?

Well, first off, if you use the programmer friendly method of incrementally updating ATA and ATY, you’ll end up with an uninvertible matrix (0 determinant), but that doesn’t really help us any besides telling us when we don’t have enough data.

There is something pretty awesome hiding here though. Let’s look at the ATA matrix and ATY values from our quadratic example again.

A^TA =  \begin{bmatrix} 4 & 10 & 30 \\ 10 & 30 & 100 \\ 30 & 100 & 354 \\ \end{bmatrix}

A^TY =  \begin{bmatrix} 102 & 330 & 1148 \\ \end{bmatrix}

The above values are for a quadratic fit. What if we wanted a linear fit instead? Well… the upper left 2×2 matrix in ATA is the ATA matrix for the linear fit! Also, the first two values in the ATY vector is the ATY vector if we were doing a linear fit.

A^TA =  \begin{bmatrix} 4 & 10 \\ 10 & 30 \\ \end{bmatrix}

A^TY =  \begin{bmatrix} 102 & 330 \\ \end{bmatrix}

You can verify that the linear fit above is correct if you want, but let’s take it down another degree, down to approximating the fit with a point. They become scalars instead of matrices and vectors:

A^TA = 4 \\ A^TY = 102

If we take the inverse of ATA and multiply it by ATY, we get:

1/4 * 102 = 25.5

if you average the Y values of our input data, you’ll find that it is indeed 25.5, so we have verified that it does give us a degree 0 fit.

This is neat and all, but how can we KNOW if we’ve collected enough data or not? Do we just try to invert our ATA matrix, and if it fails, try one degree lower, repeatedly, until we succeed or fail at a degree 0 approximation? Do we maybe instead store a counter to keep track of how many points we have seen?

Luckily no, and maybe you have already put it together. The first value in the ATA array actually TELLS you how many points you have been given. You can use that to decide what degree you are going to have to actually fit the data set to when it’s time to calculate your coefficients, to avoid the uninvertible matrix and still get your data fit.

Interesting Tid Bits

Something pretty awesome about this algorithm is that it can work in a multithreaded fashion very easily. One way would be to break apart the work into multiple job threads, have them calculate ATA and ATY independently, and then sum them all together on the main thread. Another way to do it would be to let all threads share the same ATA and ATY storage, but to use an atomic add operation to update them.

Going the atomic add route, I think this could be a relatively GPU friendly algorithm. You could use actual atomic operations in your shader code, or you could use alpha blending to add your result in.

Even though we saw it in the last section, I’ll mention it again. If you do a degree 0 curve fit to data points (aka fitting a point to the data), this algorithm is mathematically equivalent to just taking the average y value. The ATA values will have a single value which is the sum of the x values to the 0th degree, so will be the count of how many x items there are. The ATY values will also have only a single value, which will be the sum of the x^0*y values, so will be the sum of the y values. Taking the inverse of our 1×1 ATA matrix will give us one divided by how many items there are, so when we multiply that by the ATA vector which only has one item, it will be the same as if we divided our Y value sum by how many data points we had. So, in a way, this algorithm seems to be some sort of generalization of averaging, which is weird to me.

Another cool thing: if you have the minimum number of data points for your degree (aka degree+1 data points) or fewer, you can actually use the ATA and ATY values to get back your ORIGINAL data points – both the X and the Y values! I’ll leave it as an exercise for you, but if you look at it, you will always have more equations than you do unknowns.

If reconstructing the original data points is important to you, you could also have this algorithm operate in two modes.

Basically, always use the ATA[0] storage space to count the number of data points you’ve been given, since that is it’s entire purpose. You can then use the rest of the storage space as RAW data storage for your 2d input values. As soon as adding another value would cause you to overflow your storage, you could process your data points into the correct format of storing just ATA and ATY values, so that from then on, it was an approximation, instead of explicit point storage.

When decoding those values, you would use the ATA[0] storage space to know whether the rest of the storage contained ATA and ATY values, or if they contained data points. If they contained data points, you would also know how many there were, and where they were in the storage space, using the same logic to read data points out as you used to put them back in – basically like saying that the first data point goes immediately after ATA[0], the second data point after that, etc.

The last neat thing, let’s say that you are in a pixel shader as an exmaple, and that you wanted to approximate 2 different values for each pixel, but let’s say that the X value was always the same for these data sets – maybe you are approximating two different values over depth of the pixel for instance so X of both data points is the depth, but the Y values of the data points are different.

If you find yourself in a situation like this, you don’t actually need to pay the full cost of storage to have a second approximation curve.

Since the ATA values are all based on powers of the x values only, the ATA values would be the same for both of these data sets. You only need to pay the cost of the ATY values for the second curve.

This means that fitting a curve costs an initial 3*degree+2 in storage, but each additional curve only costs degree+1 in storage.

Also, since the ATA storage for a curve of degree N also contains the same values used for a curve of degree N-1, N-2, etc, you don’t have to use the same degree when approximating multiple values using the same storage. Your ATA just has to be large enough to hold the largest degree curve, and then you can have ATY values that are sized to the degree of the curve you want to use to approximate each data set.

This way, if you have limited storage, you could perhaps cubically fit one data set, and then linearly fit another data set where accuracy isn’t as important.

For that example, you would pay 11 values of storage for the cubic fit, and then only 2 more values of storage to have a linear fit of some other data.

Example Code

There is some example code below that implements the ideas from this post.

The code is meant to be clear and readable firstly, with being a reasonably decent implementation second. If you are using this in a place where you want high precision and/or high speeds, there are likely both macro and micro optimizations and code changes to be made. The biggest of these is probably how the matrix is inverted.

You can read more on the reddit discussion: Reddit: Incremental Least Squares Curve Fitting

Here’s a run of the example code:

Here is the example code:

#include <stdio.h>
#include <array>

//====================================================================
template<size_t N>
using TVector = std::array<float, N>;

template<size_t M, size_t N>
using TMatrix = std::array<TVector<N>, M>;

template<size_t N>
using TSquareMatrix = TMatrix<N,N>;

typedef TVector<2> TDataPoint;

//====================================================================
template <size_t N>
float DotProduct (const TVector<N>& A, const TVector<N>& B)
{
    float ret = 0.0f;
    for (size_t i = 0; i < N; ++i)
        ret += A[i] * B[i];
    return ret;
}

//====================================================================
template <size_t M, size_t N>
void TransposeMatrix (const TMatrix<M, N>& in, TMatrix<N, M>& result)
{
    for (size_t j = 0; j < M; ++j)
        for (size_t k = 0; k < N; ++k)
            result[k][j] = in[j][k];
}

//====================================================================
template <size_t M, size_t N>
void MinorMatrix (const TMatrix<M, N>& in, TMatrix<M-1, N-1>& out, size_t excludeI, size_t excludeJ)
{
    size_t destI = 0;
    for (size_t i = 0; i < N; ++i)
    {
        if (i != excludeI)
        {
            size_t destJ = 0;
            for (size_t j = 0; j < N; ++j)
            {
                if (j != excludeJ)
                {
                    out[destI][destJ] = in[i][j];
                    ++destJ;
                }
            }
            ++destI;
        }
    }
}

//====================================================================
template <size_t M, size_t N>
float Determinant (const TMatrix<M,N>& in)
{
    float determinant = 0.0f;
	TMatrix<M - 1, N - 1> minor;
    for (size_t j = 0; j < N; ++j)
    {
        MinorMatrix(in, minor, 0, j);

        float minorDeterminant = Determinant(minor);
        if (j % 2 == 1)
            minorDeterminant *= -1.0f;

        determinant += in[0][j] * minorDeterminant;
    }
    return determinant;
}

//====================================================================
template <>
float Determinant<1> (const TMatrix<1,1>& in)
{
	return in[0][0];
}

//====================================================================
template <size_t N>
bool InvertMatrix (const TSquareMatrix<N>& in, TSquareMatrix<N>& out)
{
    // calculate the cofactor matrix and determinant
    float determinant = 0.0f;
    TSquareMatrix<N> cofactors;
    TSquareMatrix<N-1> minor;
    for (size_t i = 0; i < N; ++i)
    {
        for (size_t j = 0; j < N; ++j)
        {
            MinorMatrix(in, minor, i, j);

            cofactors[i][j] = Determinant(minor);
            if ((i + j) % 2 == 1)
                cofactors[i][j] *= -1.0f;

            if (i == 0)
                determinant += in[i][j] * cofactors[i][j];
        }
    }

    // matrix cant be inverted if determinant is zero
    if (determinant == 0.0f)
        return false;

    // calculate the adjoint matrix into the out matrix
    TransposeMatrix(cofactors, out);

    // divide by determinant
    float oneOverDeterminant = 1.0f / determinant;
    for (size_t i = 0; i < N; ++i)
        for (size_t j = 0; j < N; ++j)
            out[i][j] *= oneOverDeterminant;
    return true;
}

//====================================================================
template <>
bool InvertMatrix<2> (const TSquareMatrix<2>& in, TSquareMatrix<2>& out)
{
    float determinant = Determinant(in);
    if (determinant == 0.0f)
        return false;

    float oneOverDeterminant = 1.0f / determinant;
    out[0][0] =  in[1][1] * oneOverDeterminant;
    out[0][1] = -in[0][1] * oneOverDeterminant;
    out[1][0] = -in[1][0] * oneOverDeterminant;
    out[1][1] =  in[0][0] * oneOverDeterminant;
    return true;
}

//====================================================================
template <size_t DEGREE>  // 1 = linear, 2 = quadratic, etc
class COnlineLeastSquaresFitter
{
public:
    COnlineLeastSquaresFitter ()
    {
        // initialize our sums to zero
        std::fill(m_SummedPowersX.begin(), m_SummedPowersX.end(), 0.0f);
        std::fill(m_SummedPowersXTimesY.begin(), m_SummedPowersXTimesY.end(), 0.0f);
    }

    void AddDataPoint (const TDataPoint& dataPoint)
    {
        // add the summed powers of the x value
        float xpow = 1.0f;
        for (size_t i = 0; i < m_SummedPowersX.size(); ++i)
        {
            m_SummedPowersX[i] += xpow;
            xpow *= dataPoint[0];
        }

        // add the summed powers of the x value, multiplied by the y value
        xpow = 1.0f;
        for (size_t i = 0; i < m_SummedPowersXTimesY.size(); ++i)
        {
            m_SummedPowersXTimesY[i] += xpow * dataPoint[1];
            xpow *= dataPoint[0];
        }
    }

    bool CalculateCoefficients (TVector<DEGREE+1>& coefficients) const
    {
        // initialize all coefficients to zero
        std::fill(coefficients.begin(), coefficients.end(), 0.0f);

        // calculate the coefficients
        return CalculateCoefficientsInternal<DEGREE>(coefficients);
    }

private:

    template <size_t EFFECTIVEDEGREE>
    bool CalculateCoefficientsInternal (TVector<DEGREE + 1>& coefficients) const
    {
        // if we don't have enough data points for this degree, try one degree less
        if (m_SummedPowersX[0] <= EFFECTIVEDEGREE)
            return CalculateCoefficientsInternal<EFFECTIVEDEGREE - 1>(coefficients);

        // Make the ATA matrix
        TMatrix<EFFECTIVEDEGREE + 1, EFFECTIVEDEGREE + 1> ATA;
        for (size_t i = 0; i < EFFECTIVEDEGREE + 1; ++i)
            for (size_t j = 0; j < EFFECTIVEDEGREE + 1; ++j)
                ATA[i][j] = m_SummedPowersX[i + j];

        // calculate inverse of ATA matrix
        TMatrix<EFFECTIVEDEGREE + 1, EFFECTIVEDEGREE + 1> ATAInverse;
        if (!InvertMatrix(ATA, ATAInverse))
            return false;

        // calculate the coefficients for this degree. The higher ones are already zeroed out.
        TVector<EFFECTIVEDEGREE + 1> summedPowersXTimesY;
        std::copy(m_SummedPowersXTimesY.begin(), m_SummedPowersXTimesY.begin() + EFFECTIVEDEGREE + 1, summedPowersXTimesY.begin());
        for (size_t i = 0; i < EFFECTIVEDEGREE + 1; ++i)
            coefficients[i] = DotProduct(ATAInverse[i], summedPowersXTimesY);
        return true;
    }

    // Base case when no points are given, or if you are fitting a degree 0 curve to the data set.
    template <>
    bool CalculateCoefficientsInternal<0> (TVector<DEGREE + 1>& coefficients) const
    {
        if (m_SummedPowersX[0] > 0.0f)
            coefficients[0] = m_SummedPowersXTimesY[0] / m_SummedPowersX[0];
        return true;
    }

    // Total storage space (# of floats) needed is 3 * DEGREE + 2
    // Where y is number of values that need to be stored and x is the degree of the polynomial
    TVector<(DEGREE + 1) * 2 - 1>   m_SummedPowersX;
    TVector<DEGREE + 1>             m_SummedPowersXTimesY;
};

//====================================================================
template <size_t DEGREE>
void DoTest(const std::initializer_list<TDataPoint>& data)
{
	printf("Fitting a curve of degree %zi to %zi data points:n", DEGREE, data.size());

    COnlineLeastSquaresFitter<DEGREE> fitter;

	// show data
    for (const TDataPoint& dataPoint : data)
		printf("  (%0.2f, %0.2f)n", dataPoint[0], dataPoint[1]);

	// fit data
    for (const TDataPoint& dataPoint : data)
        fitter.AddDataPoint(dataPoint);

	// calculate coefficients if we can
	TVector<DEGREE+1> coefficients;
	bool success = fitter.CalculateCoefficients(coefficients);
	if (!success)
	{
		printf("ATA Matrix could not be inverted!n");
		return;
	}

	// print the polynomial
	bool firstTerm = true;
	printf("y = ");
    bool showedATerm = false;
	for (int i = (int)coefficients.size() - 1; i >= 0; --i)
	{
		// don't show zero terms
		if (std::abs(coefficients[i]) < 0.00001f)
			continue;

        showedATerm = true;

		// show an add or subtract between terms
		float coefficient = coefficients[i];
		if (firstTerm)
			firstTerm = false;
		else if (coefficient >= 0.0f)
			printf(" + ");
		else
		{
			coefficient *= -1.0f;
			printf(" - ");
		}

		printf("%0.2f", coefficient);

		if (i > 0)
			printf("x");

		if (i > 1)
			printf("^%i", i);
	}
    if (!showedATerm)
        printf("0");
	printf("nn");
}

//====================================================================
int main (int argc, char **argv)
{
	// Point - 1 data points
    DoTest<0>(
        {
            TDataPoint{ 1.0f, 2.0f },
        }
    );

	// Point - 2 data points
    DoTest<0>(
        {
            TDataPoint{ 1.0f, 2.0f },
            TDataPoint{ 2.0f, 4.0f },
        }
    );

	// Linear - 2 data points
    DoTest<1>(
        {
            TDataPoint{ 1.0f, 2.0f },
            TDataPoint{ 2.0f, 4.0f },
        }
    );

	// Linear - 3 colinear data points
    DoTest<1>(
        {
            TDataPoint{ 1.0f, 2.0f },
            TDataPoint{ 2.0f, 4.0f },
            TDataPoint{ 3.0f, 6.0f },
        }
    );

	// Linear - 3 non colinear data points
    DoTest<1>(
        {
            TDataPoint{ 1.0f, 2.0f },
            TDataPoint{ 2.0f, 4.0f },
            TDataPoint{ 3.0f, 5.0f },
        }
    );

	// Quadratic - 3 colinear data points
    DoTest<2>(
        {
            TDataPoint{ 1.0f, 2.0f },
            TDataPoint{ 2.0f, 4.0f },
            TDataPoint{ 3.0f, 6.0f },
        }
    );

	// Quadratic - 3 data points
    DoTest<2>(
        {
            TDataPoint{ 1.0f, 5.0f },
            TDataPoint{ 2.0f, 16.0f },
            TDataPoint{ 3.0f, 31.0f },
        }
    );

	// Cubic - 4 data points
    DoTest<3>(
        {
            TDataPoint{ 1.0f, 5.0f },
            TDataPoint{ 2.0f, 16.0f },
            TDataPoint{ 3.0f, 31.0f },
            TDataPoint{ 4.0f, 16.0f },
        }
    );

	// Cubic - 2 data points
    DoTest<3>(
        {
            TDataPoint{ 1.0f, 7.0f },
            TDataPoint{ 3.0f, 17.0f },
        }
    );

	// Cubic - 1 data point
    DoTest<3>(
        {
            TDataPoint{ 1.0f, 7.0f },
        }
    );

	// Cubic - 0 data points
    DoTest<3>(
        {
        }
    );

    system("pause");
    return 0;
}

Feedback

There’s some interesting feedback on twitter.

Links

Here’s an interactive demo to let you get a feel for how least squares curve fitting behaves:
Least Squares Curve Fitting

Wolfram Mathworld: Least Squares Fitting
Wikipedia: Least Squares Fitting
Inverting a 2×2 Matrix
Inverting Larger Matrices

A good online polynomial curve fitting calculator

By the way, the term for an algorithm which works incrementally by taking only some of the data at a time is called an “online algorithm”. If you are ever in search of an online algorithm to do X (whatever X may be), using this term can be very helpful when searching for such an algorithm, or when asking people if such an algorithm exists (like on stack exchange). Unfortunately, online is a bit overloaded in the modern world, so it can also give false hits (;
Wikipedia: Online algorithm

Evaluating Polynomials with the GPU Texture Sampler

This is an extension of a paper I wrote which shows how to use the linear texture sampling capabilities of the GPU to calculate points on Bezier curves. You store the control points in the texture, then sample along the texture’s diagonal to get points on the curve:
GPU Texture Sampler Bezier Curve Evaluation

I’ve been thinking about the items in the “future work” section and found some interesting things regarding polynomials, logic gates, surfaces and volumes. This is the first post, which deals with evaluating polynomials.

Evaluating Polynomials

One of the main points of my paper was that N-linear interpolation (linear, bilinear, trilinear, etc) can be used to evaluate the De Casteljau algorithm since both things are just linear interpolations of linear interpolations. (Details on bilinear interpolation here: Bilinear Filtering & Bilinear Interpolation).

This meant that it was also able to calculate Bernstein Polynomials (aka the algebraic form of Bezier curves), since Bernstein polynomials are equivalent to the De Casteljau algorithm.

I started looking around to see what would happen if you messed around with the De Casteljau algorithm a bit, like interpolate at one level by
t^2 or t*0.5+0.5 or by a constant or by another variable completely. My hope was that I’d be able to make the technique more generic and open it up to a larger family of equations, so people weren’t limited to just Bernstein polynomials.

That opened up a pretty deep rabbit hole on polynomial blossoming and something called Symmetric Multiaffine Functions. There are some great links in the answer here:
Math Stack Exchange: Modifying and Generalizing the De Casteljau Algorithm

In the end, it turned out to be pretty simple though. It turns out that any polynomial can be converted back and forth from “Power Basis” (which looks like Ax^2+Bx+C) to “Bernstein Basis” (which looks like A(1-t)^2+B(1-t)t+Ct^2) so long as they are the same degree.

This isn’t the result I was expecting but it is a nice result because it’s simple. I think there is more to be explored by sampling off the diagonal, and using different t values at different stages of interpolation, but this result is worth sharing.

By the way, you could also use curve fitting to try and approximate a higher degree function with a lower degree one, but for this post, I’m only going to be talking about exact conversion from Bernstein polynomials to Power polynomials.

Since we can convert power basis polynomials to Bernstein polynomials, and the technique already works for Bernstein polynomials, that means that if we have some random polynomial, say y=2x^3+4x+2, that we can make this technique work for that too. The technique got a little closer to arbitrary equation evaluation. Neat!

Converting Power Basis to Bernstein Basis

I found the details of the conversion process at Polynomial Evaluation and Basis Conversion which was linked to by Math Stack Exchange: Convert polynomial curve to Bezier Curve control points.

This is best explained working through examples, so let’s start by converting a quadratic polynomial from power basis to Bernstein basis.

Quadratic Function

y=2x^2+8x+3

The first thing we do is write the coefficients vertically, starting with the x^0 coefficient, then the x^1 coefficient and continuing on to the highest value x^n:

\begin{array}{c} 3 \\ 8 \\ 2 \\ \end{array}

Next, we need to divide by the Binomial Coefficients (aka the row of Pascal’s Triangle which has the same number of items as we have coefficients). In this case we need to divide by: 1,2,1.

\begin{array}{c|c} 3 & 3 / 1 = 3 \\  8 & 8 / 2 = 4 \\ 2 & 2 / 1 = 2 \\ \end{array}

Now we generate a difference table backwards. it’s hard to explain what that is in words, but if you notice, each value is the sum of the value to the left of it, and the one below that.

\begin{array}{c|c|c|c} 3 & 3 / 1 = 3 & 7 & 13 \\  8 & 8 / 2 = 4 & 6 & \\ 2 & 2 / 1 = 2 &   & \\ \end{array}

We are all done. The control points for the Bezier curve are on the top row (ignoring the left most column). They are 3,7,13 which makes it so we have the following two equations being equal. The first is in power basis, the second is in Bernstein basis.

y=2x^2+8x+3
y=3(1-x)^2+14(1-x)x+13x^2

Note: don’t forget that Bezier curves multiply the control points by the appropriate row in Pascal’s triangle. That’s where the 14 comes from in the middle term of the Bernstein polynomial. We are multiplying the control points 3,7,13 by the row in Pascal’s triangle 1,2,1 to get the final coefficients of 3,14,13.

Let’s have Wolfram Alpha help us verify that they are equal.

Wolfram Alpha: graph y=2x^2+8x+3, y=3*(1-x)^2+14x*(1-x)+13x^2, from 0 to 1

Yep, they are equal! If you notice the legend of the graph, wolfram actually converted the Bernstein form back to power basis, and you can see that they are exactly equivalent.

You can also write the Bernstein form like the below, which i prefer, using t instead of x and also setting s=1-t.

y=3s^2+14st+13t^2

Cubic Function

A cubic function is not that much harder than a quadratic function. After this, you should see the pattern and be able to convert any degree easily.

y=5x^3+9x-4

Again, the first thing we do is write the coefficients vertically, starting with the constant term. Note that we don’t have an x^2 term, so it’s coefficient is 0.

\begin{array}{c} -4 \\  9 \\  0 \\  5 \\ \end{array}

We next divide by the Pascal’s triangle row 1,3,3,1.

\begin{array}{c|c} -4 & -4 / 1 = -4 \\  9 &  9 / 3 =  3 \\  0 &  0 / 3 =  0 \\  5 &  5 / 1 =  5 \\ \end{array}

Now, make the difference table going backwards again:

\begin{array}{c|c|c|c|c} -4 & -4 / 1 = -4 & -1 & 2 & 10 \\  9 &  9 / 3 =  3 &  3 & 8 & \\  0 &  0 / 3 =  0 &  5 &   & \\  5 &  5 / 1 =  5 &    &   & \\ \end{array}

Our Bezier control points are along the top: -4,-1,2,10. Keeping in mind that the coefficients for a cubic bezier curve are multiplied by 1,3,3,1 we can make the Bernstein form and put it next to our original formula:

y=5x^3+9x-4
y=-4(1-x)^3-3(1-x)^2x+6(1-x)x^2+10x^3

Let’s check in wolfram alpha again:
Wolfram Alpha: graph y=5x^3+9x-4, y=-4(1-x)^3-3x(1-x)^2+6x^2(1-x)+10x^3, from 0 to 1

And here it is in the cleaner form:

y=-4s^3-3s^2t+6st^2+10t^3

Some Notes On Calculating Polynomials with the Texture Sampler

You may notice that in the comparison graphs i only plotted the graphs from 0 to 1 on the x axis (aka the t axis). The equations are actually equivalent outside of that range as well, but the technique from my paper only works from the 0 to 1 range because it relies on built in hardware pixel interpolation. This may sound like a big limitation, but if you know the minimum and maximum value of x that you want to plug into your equation at runtime, you can convert your x into a percent between those values, get the resulting polynomial, convert it to Bernstein form, set up the texture, and then at runtime convert your input parameter into that percent when you do the lookup. In other words, you squeeze the parts of the function you care about into the 0 to 1 range.

Another issue you will probably hit is that standard RGBA8 textures have only 8 bits per channel and can only store values between 0 and 1. Since the texture is supposed to be storing your control points, that is bad news.

One way to get around this is to find the largest coefficient value and divide the others by this value. This will put the coefficients into the 0 to 1 range, which will be able to be stored in your texture. After sampling the texture, you multiply the result by that scaling value to get the correct answer.

Scaling won’t help having both negative and positive coefficients though. To handle negative coefficients, you could map the 0-1 space to be from -1 to 1, similar to how we often do it with normal maps and other signed data stored in textures. After doing the lookup you’d have to unmap it too of course.

You could also solve negative values and scaling problems by squishing the y axis into the 0 to 1 space by subtracting the minimum and dividing by the maximum minus the minimum, similarly to how we squished the x range into 0 to 1.

If you instead move to an RGBAF32 texture, you’ll have a full 32 bit float per color channel and won’t have problems with either large values or negative values. You will still have to deal with x only going from 0 to 1 though.

I also want to mention that the hardware texture interpolation works in a X.8 fixed point format. There are more details in my paper, but that means that you’ll get some jagged looking artifacts on your curve instead of a smoothly varying value. If that is a problem for you in practice, my paper talks about a few ways to mitigate that issue.

Before moving on, I wanted to mention that it’s easy to support rational polynomials using this method as well. A rational polynomial is when you divide one polynomial by another polynomial, and relates to rational Bezier curves, where you divide one curve by another curve (aka you give weights to control points). Rational curves are more powerful and in fact you can perfectly represent sine and cosine with a quadratic rational polynomial. More info on that in my paper.

To calculate rational polynomials, you just encode the numerator polynomial in one color channel, and the denominator polynomial in another color channel. After you sample the texture and get the result of your calculation, you divide the numerator value by the denominator value. It costs one division in your shader code, but that’s pretty cheap for the power it gives you!

Regarding the texture size requirements to store a polynomial of a specific degree…

Every dimension of the texture, and every color channel in that texture, adds a degree.

However, to get the benefit of the degree increase from the color channel, you need to do a little more math in the shader – check my paper for more details!

So, if you wanted to store a quadratic polynomial in a texture, you would need either a 2d texture with 1 color channel, or you could do it with a 1d texture that had 2 color channels.

If you wanted to store a cubic polynomial in a texture, you could use a 3d texture with 1 color channel, or a 2d texture with two color channels (there would be some waste here) or a 1d texture with three color channels.

For a polynomial that had a maximum degree term of 6, you could use a 3d volume texture that had 3 color channels: RGB.

If you need to evaluate a very high degree polynomial, you can actually take multiple texture samples and combine them.

For instance, if you had a 2d texture with a single color channel, you could do a single texture read to get a quadratic.

If you did two texture reads, you would have two quadratics.

If you linearly interpolated between those two quadratics, you would end up with a cubic.

That isn’t a very high degree curve but is easier to grasp how they combine.

Taking this up to RGBA 3d volume textures, a single texture read will get you a curve of degree 6. If you do another read, it will take it to degree 7. Another read gets you to 8, another to 9, etc.

With support for 4d textures, an RGBA texture read would give you a degree 7 curve. Another read would boost it to 8, another to 9, another to 10, etc.

Regarding the specific sizes of the textures, in all cases the texture size is “2” on each dimension because we are always just linearly interpolating within a hyper cube of pixel values. You can increase the size of the texture for piecewise curves, check out the paper for more details on that and other options.

Closing

Hopefully you found this useful or interesting!

There may not have been much new information in here for the more math inclined people, but I still think it’s worth while to explicitly show how the technique works for both Bernstein polynomials as well as the more common power basis polynomials.

I still think it would be interesting to look at what happens when you sample off of the diagonal, and also what happens if you use different values at different stages of the interpolation. As an example, instead of just looking up a texture at (t,t) for the (u,v) value to get a quadratic curve point, what if we look up by (t,t^2)? At first blush, it seems like by doing that we may be able to boost a curve to a higher degree, maybe at the cost of some reduced flexibility for the specific equations we can evaluate?

Next up I’ll be writing up some more extensions to the paper involving logic gates, surfaces, and volumes.

Have any feedback, questions or interesting ideas? Let me know!

Incremental Averaging

This is a super short post about something I want to be able to reference again in the future (:

Let’s say that you need to average N things, where you don’t know what the final N will be, but you want to keep an average as you go.

For instance, let’s say you are doing monte carlo path tracing rendering, where the pixel you are showing is the average of however many samples you’ve had so far, but you are continuing to get new samples and want to show the updated average as you get new samples.

The formula for doing this is super simple.

NewAverage = OldAverage + (NewValue - OldAverage) / NewSampleCount;

// Or:

Average += (NewValue - Average) / NewSampleCount;

One way of thinking of the above equations is that you are adjusting the average by how much the new value would adjust the average.

Another way of thinking of the above two equations is this:

First figure out how far the new sample is from the average, then move towards that new amount by an ever decreasing amount, as the number of samples grow.

Because of this, if you are in a language such as glsl or hlsl which has linear interpolation built in (mix in glsl, lerp in hlsl), you can use linear interpolation as well:

Average = mix(Average, NewValue, 1.0 / NewSampleCount);

To see how this works out, check out the formula for lerp:

Lerp(a,b,t) = a + (b-a)*t

Substituting Average for a, NewValue for b, and 1/NewSampleCount for t, we get this:

Lerp(Average, NewValue, 1/NewSampleCount)
= Average + (NewValue-Average)/NewSampleCount

Which is the exact same formula as above. So, using lerp in that way is mathematically equivalent.

Here’s a link with more discussion on this:
Math Stack Exchange: Incremental averageing

Here’s an awesome post on this same subject, with a different resulting formula, by Christer Ericson (@ChristerEricson), author of the famous “Real Time Collision Detection” book, and VP of technology at Activision. His solution looks like it might be more numerically robust, but I haven’t analyzed it well enough yet to know for sure:
Robustly computing the centroid for a point set

A somewhat related topic, here’s a method for keeping a sum with floating point numbers, that is more accurate than normal summation. Useful when you need to sum numbers of different magnitudes, which would normally be a problem in floating point.
Wikipedia: Kahan Summation

Here’s an incremental (aka online) algorithm that gives you the average as well as the variance, which you can square root to get the standard deviation. This is useful for when you need to know how volatile data samples are – like if reporting results from profiling code, or maybe useful for path tracing for finding how much variance is in a pixel, so you know whether you need more samples or can get away with fewer.
Wikipedia: Standard deviation – Online algorithm

Understanding The Discrete Fourier Transform

I’ve been working on getting a better understanding of the Discrete Fourier Transform. I’ve figured out some things which have really helped my intuition, and made it a lot simpler in my head, so I wanted to write these up for the benefit of other folks, as well as for my future self when I need a refresher.

The discrete Fourier transform takes in data and gives out the frequencies that the data contains. This is useful if you want to analyze data, but can also be useful if you want to modify the frequencies then use the inverse discrete Fourier transform to generate the frequency modified data.

Multiplying By Sinusoids (Sine / Cosine)

If you had a stream of data that had a single frequency in it at a constant amplitude, and you wanted to know the amplitude of that frequency, how could you figure that out?

One way would be to make a cosine wave of that frequency and multiply each sample of your wave by the corresponding samples.

For instance, let’s say that we have a data stream of four values that represent a 1hz cosine wave: 1, 0, -1, 0.

We could then multiply each point by a corresponding point on a cosine wave, add sum them together:

We get.. 1*1 + 0*0 + -1*-1 + 0*0 = 2.

The result we get is 2, which is twice the amplitude of the data points we had. We can divide by two to get the real amplitude.

To show that this works for any amplitude, here’s the same 1hz cosine wave data with an amplitude of five: 5, 0, -5, 0.

Multiplying by the 1hz cosine wave, we get… 5*1 + 0*0 + -5*-1 + 0*0 = 10.

The actual amplitude is 5, so we can see that our result was still twice the amplitude.

In general, you will need to divide by N / 2 where N is the number of samples you have.

What happens if our stream of data has something other than a cosine wave in it though?

Let’s try a sine wave: 0, 1, 0, -1

When we multiply those values by our cosine wave values we get: 0*1 + 1*0 + 0*-1 + -1*0 = 0.

We got zero. Our method broke!

In this case, if instead of multiplying by cosine, we multiply by sine, we get what we expect: 0*0 + 1*1 + 0*0 + -1*-1 = 2. We get results consistent with before, where our answer is the amplitude times two.

That’s not very useful if we have to know whether we are looking for a sine or cosine wave though. We might even have some other type of wave that is neither one!

The solution to this problem is actually to multiply the data points by both cosine and sine waves, and keep both results.

Let’s see how that works.

For this example We’ll take a cosine wave and shift it 0.25 radians to give us samples: 0.97, -0.25, -0.97, 0.25. (The formula is cos(x*2*pi/4+0.25) from 0 to 3)

When we multiply that by a cosine wave we get: 0.97*1 + -0.25*0 + -0.97*-1 + 0.25*0 = 1.94
When we multiply it by a sine wave we get: 0.97*0 + -0.25*1 + -0.97*0 + 0.25*-1 = -0.5

Since we know both of those numbers are twice the actual amplitude, we can divide them both by two to get:
cosine: 0.97
sine: -0.25

Those numbers kind of makes sense if you think about it. We took a cosine wave and shifted it over a little bit so our combined answer is that it’s mostly a cosine wave, but is heading towards being a sine wave (technically a sine wave that has an amplitude of -1, so is a negative sine wave, but is still a sine wave).

To get the amplitude of our phase shifted wave, we treat those values as a vector, and get the magnitude. sqrt((0.97*0.97)+(-0.25*-0.25)) = 1.00. That is correct! Our wave’s amplitude is 1.0.

To get the starting angle (phase) of the wave, we use inverse tangent of sine over cosine. We want to take atan2(sine, cosine), aka atan2(-0.25, 0.97) which gives us a result of -0.25 radians. That’s the amount that we shifted our wave, so it is also correct!

Formulas So Far

Let’s take a look at where we are at mathematically. For N samples of data, we multiply each sample of data by a sample from a wave with the frequency we are looking for and sum up the results (Note that this is really just a dot product between N dimensional vectors!). We have to do this both with a cosine wave and a sine wave, and keep the two resulting values to be able to get our true amplitude and phase information.

For now, let’s drop the “divide by two” part and look at the equations we have.

Value_{cosine} = \sum\limits_{n=0}^{N-1} Sample_n * Cos(2\pi*Frequency*n/N)

Value_{sine} = \sum\limits_{n=0}^{N-1} Sample_n * Sin(2\pi*Frequency*n/N)

Those equations above do exactly what we worked through in the samples.

The part that might be confusing is the part inside of the Cos() and Sin() so I’ll explain that real quick.

Looking at the graph cos(x) and sin(x) you’ll see that they both make one full cycle between the x values of 0 and 2*pi (aprox. 6.28):

If instead we change it to a graph of cos(2*pi*x) and sin(2*pi*x) you’ll notice that they both make one full cycle between the x values of 0 and 1:

This means that we can think of the wave forms in terms of percent (0 to 1) instead of in radians (0 to 2pi).

Next, we multiply by the frequency we are looking for. We do this because that multiplication makes the wave form repeat that many times between 0 and 1. It makes us a wave of the desired frequency, still remaining in “percent space” where we can go from 0 to 1 to get samples on our cosine and sine waves.

Here’s a graph of cos(2*pi*x*2) and sin(2*pi*x*2), to show some 2hz frequency waves:

Lastly, we multiply by n/N. In our sum, n is our index variable and it goes from 0 to N-1. This is very much like a for loop. n/N is our current percent done we are in the for loop, so when we multiply by n/N, we are just sampling at a different location (by percentage done) on our cosine and sine waves that are at the specified frequencies.

Not too difficult right?

Imaginary Numbers

Wouldn’t it be neat if instead of having to do two separate calculations for our cosine and sine values, we could just do a single calculation that would give us both values?

Well, interestingly, we can! This is where imaginary numbers come in. Don’t get scared, they are here to make things simpler and more convenient, not to make things more complicated or harder to understand (:

There is something called Euler’s Identity which states the below:

e^{ix} = cos(x) + i*sin(x)

That looks pretty useful for our usage case doesn’t it? If you notice that our equations both had the same parameters for cos and sin, that means that we can just use this identity instead!

We can now take our two equations and combine them into a single equation:

Value = \sum\limits_{n=0}^{N-1} Sample_n * e^{i *2\pi * Frequency*n/N}

When we do the above calculation, we will get a complex number out with a real and imaginary part. The real part of the complex number is just the cosine value, while the imaginary part of the complex number is the sine value. Nothing scary has happened, we’ve just used/abused complex numbers a bit to give us what we want in a more compact form.

Multiple Frequencies

Now we know how to look for a single, specific frequency.

What if you want to look for multiple frequencies though? Further more, what if you don’t even know what frequencies to look for?

When doing the discrete Fourier transform on a stream of samples, there are a specific set of frequencies that it checks for. If you have N samples, it only checks for N different frequencies. You could ask about other frequencies, but these frequencies are enough to reconstruct the original signal from only the frequency data.

The first N/2 frequencies are going to be the frequencies 0 (DC) through N/2. N/2 is the Nyquist frequency and is the highest frequency that your signal is able of holding.

After N/2 comes the negative frequencies, counting from a large negative frequency (N/2-1) up to the last frequency which is -1.

As an example, if you had 8 samples and ran the DFT, you’d get 8 complex numbers as outputs, which represent these frequencies:

[0hz, 1hz, 2hz, 3hz, 4hz, -3hz, -2hz, -1hz]

The important take away from this section is that if you have N samples, the DFT asks only about N very specific frequencies, which will give enough information to go from frequency domain back to time domain and get the signal data back.

That then leads to this equation below, where we just put a subscript on Value, to signify which frequency we are probing for.

Value_{Frequency} = \sum\limits_{n=0}^{N-1} Sample_n * e^{2\pi i*Frequency*n/N}

Frequency is an integer, and is between 0 and N-1. We can say that mathematically by listing this information along with the equation:

Frequency \in [0,N), Frequency \in \mathbb Z

Final Form

Math folk use letters and symbols instead of words in their equations.

The letter k is used instead of frequency.

Instead of Value_{Frequency} , the symbol is X_{k} .

Instead of Sample_n , the symbol is x_n.

This gives us a more formal version of the equation:

X_k= \sum\limits_{n=0}^{N-1} x_n * e^{2\pi ikn/N}

k\in [0,N), k \in \mathbb Z

We are close to the final form, but we aren’t quite done yet!

Remember the divide by two? I had us take out the divide by two so that I could re-introduce it now in it’s correct form. Basically, since we are querying for N frequencies, we need to divide each frequency’s result by N. I mentioned that we had to divide by N/2 to make the amplitude information correct, but since we are checking both positive AND negative frequencies, we have to divide by 2*(N/2), or just N. That makes our equation become this:

X_k= 1/N \sum\limits_{n=0}^{N-1} x_n * e^{2\pi ikn/N}

k\in [0,N), k \in \mathbb Z

Lastly, we actually want to make the waves go backwards, so we make the exponent negative. The reason for this is a deeper topic than I want to get into right now, but you can read more about why here if you are curious: DFT – Why are the definitions for inverse and forward commonly switched?

That brings us to our final form of the formula for the discrete Fourier transform:

X_k= 1/N \sum\limits_{n=0}^{N-1} x_n * e^{-2\pi ikn/N}

k\in [0,N), k \in \mathbb Z

Taking a Test Drive

If we use that formula to calculate the DFT of a simple, 4 sample, 1hz cosine wave (1, 0, -1, 0), we get as output [0, 0.5, 0, -0.5].

That means the following:

  • 0hz : 0 amplitude
  • 1hz : 0.5 amplitude
  • 2hz : 0 amplitude
  • -1hz : -0.5 amplitude

It is a bit strange that the simple 1hz, 1.0 amplitude cosine wave was split in half, and made into a 1hz cosine wave and -1hz cosine wave, each contributing half amplitude to the result, but that is “just how it works”. I don’t have a very good explanation for this though. My personal understanding just goes that if we are checking for both positive AND negative frequencies, that makes it ambiguous whether it’s a 1hz wave with 1 amplitude, or -1hz wave with -1 amplitude. Since it’s ambiguous, both must be true, and they get half the amplitude each. If I get a better understanding, I’ll update this paragraph, or make a new post on it.

Making The Inverse Discrete Fourier Transform

Making the formula for the Inverse DFT is really simple.

We start with our DFT formula, drop the 1/N from the front, and also make the exponent to e positive instead of negative. That is all! The intuition here for me is that we are just doing the reverse of the DFT process, to do the inverse DFT process.

x_k= \sum\limits_{n=0}^{N-1} X_n * e^{2\pi ikn/N}

k\in [0,N), k \in \mathbb Z

While the DFT takes in real valued signals and gives out complex valued frequency data, the IDFT takes in complex valued frequency data, and gives out real valued signals.

A fun thing to try is to take some data, DFT it, modify the frequency data, then IDFT it to see what comes out the other side.

Other Notes

Here are some other things of note about the discrete Fourier transform and it’s inverse.

Data Repeating Forever

When you run the DFT on a stream of data, the math is such that it assumes that the stream of data you gave it repeats forever both forwards and backwards in time. This is important because if you aren’t careful, you can add frequency content to your data that you didn’t intend to be there.

For instance, if you tile a 1hz sine wave, it’s continuous, and there is only the 1hz frequency present:

However, if you tile a 0.9hz sine wave, there is a discontinuity, which means that there will be other, unintended frequencies present when you do a DFT of the data, to be able to re-create the discontinuity:

Fast Fourier Transform

There are a group of algorithms called “Fast Fourier Transforms”. You might notice that if we have N samples, taking the DFT is an O(N^2) operation. Fast Fourier transforms can bring it down to O(N log N).

DFT / IDFT Formula Variations

The formula we came up with is one possible DFT formula, but there are a handful of variations that are acceptable, even though different variations come up with different values!

The first option is whether to make the e exponent negative or not. Check out these two formulas to see what I mean.

X_k= \sum\limits_{n=0}^{N-1} x_n * e^{2\pi ikn/N}
vs
X_k= \sum\limits_{n=0}^{N-1} x_n * e^{-2\pi ikn/N}

Either one is acceptable, but when providing DFT’d data, you should mention which one you did, and make sure and use the opposite one in your inverse DFT formula.

The next options is whether to divide by N or not, like the below:

X_k= \sum\limits_{n=0}^{N-1} x_n * e^{2\pi ikn/N}
vs
X_k= 1/N \sum\limits_{n=0}^{N-1} x_n * e^{2\pi ikn/N}

Again, either one is acceptable, but you need to make sure and let people know which one you did, and also make sure and use the opposite one in your inverse DFT formula.

Instead of dividing by N, some people actually divide by 1/sqrt(N) in both the DFT and inverse DFT. Wolfram alpha does this for instance!

You can read more about this stuff here: DFT – Why are the definitions for inverse and forward commonly switched?

One thing to note though is that if doing 1/N on the DFT (my personal preference), the 0hz (DC) frequency bin gives you the average value of the signal, and the amplitude data you get out of the other bins is actually correct (keeping in mind the amplitudes are split in half between positive and negative frequencies).

Why Calculate Negative Frequencies

The negative frequencies are able to be calculated on demand from the positive frequency information (eg complex conjugation), so why should we even bother calculating them? Sure it’d be more computationally efficient not to calculate them, especially when just doing frequency analysis, right?!

Here’s a discussion about that: Why calculate negative frequencies of DFT?

Higher Dimensions

It’s possible to DFT in 2d, 3d, and higher. The last blog post shows how to do this with 2d images, but I’d also like to write a blog post like this one specifically talking about the intuition behind multi dimensional DFTs.

Example Program Source Code

Here’s some simple C++ source code which calculates the DFT and inverse DFT, optionally showing work in case you want to try to work some out by hand to better understand this. Working a few out by hand really helped me get a better intuition for all this stuff.

Program Output:

Source Code:

#include <stdio.h>
#include <complex>
#include <vector>

#include <fcntl.h>
#include <io.h>

// set to 1 to have it show you the steps performed.  Set to 0 to hide the work.
// useful if checking work calculated by hand.
#define SHOW_WORK 1

#if SHOW_WORK
    #define PRINT_WORK(...) wprintf(__VA_ARGS__)
#else
    #define PRINT_WORK(...)
#endif

// Use UTF-16 encoding for Greek letters
static const wchar_t kPi = 0x03C0;
static const wchar_t kSigma = 0x03A3;

typedef float TRealType;
typedef std::complex<TRealType> TComplexType;

const TRealType c_pi = (TRealType)3.14159265359;
const TRealType c_twoPi = (TRealType)2.0 * c_pi;

//=================================================================================
TComplexType DFTSample (const std::vector<TRealType>& samples, int k)
{
    size_t N = samples.size();
    TComplexType ret;
    for (size_t n = 0; n < N; ++n)
    {
        TComplexType calc = TComplexType(samples[n], 0.0f) * std::polar<TRealType>(1.0f, -c_twoPi * TRealType(k) * TRealType(n) / TRealType(N));
        PRINT_WORK(L"    n = %i : (%f, %f)n", n, calc.real(), calc.imag());
        ret += calc;
    }
    ret /= TRealType(N);
    PRINT_WORK(L"    Sum the above and divide by %in", N);
    return ret;
}

//=================================================================================
std::vector<TComplexType> DFTSamples (const std::vector<TRealType>& samples)
{
    PRINT_WORK(L"DFT:  X_k = 1/N %cn[0,N) x_k * e^(-2%cikn/N)n", kSigma, kPi);

    size_t N = samples.size();
    std::vector<TComplexType> ret;
    ret.resize(N);
    for (size_t k = 0; k < N; ++k)
    {
        PRINT_WORK(L"  k = %in", k);
        ret[k] = DFTSample(samples, k);
        PRINT_WORK(L"  X_%i = (%f, %f)n", k, ret[k].real(), ret[k].imag());
    }
    PRINT_WORK(L"n");
    return ret;
}

//=================================================================================
TRealType IDFTSample (const std::vector<TComplexType>& samples, int k)
{
    size_t N = samples.size();
    TComplexType ret;
    for (size_t n = 0; n < N; ++n)
    {
        TComplexType calc = samples[n] * std::polar<TRealType>(1.0f, c_twoPi * TRealType(k) * TRealType(n) / TRealType(N));
        PRINT_WORK(L"    n = %i : (%f, %f)n", n, calc.real(), calc.imag());
        ret += calc;
    }
    PRINT_WORK(L"    Sum the above and take the real componentn");
    return ret.real();
}

//=================================================================================
std::vector<TRealType> IDFTSamples (const std::vector<TComplexType>& samples)
{
    PRINT_WORK(L"IDFT:  x_k = %cn[0,N) X_k * e^(2%cikn/N)n", kSigma, kPi);

    size_t N = samples.size();
    std::vector<TRealType> ret;
    ret.resize(N);
    for (size_t k = 0; k < N; ++k)
    {
        PRINT_WORK(L"  k = %in", k);
        ret[k] = IDFTSample(samples, k);
        PRINT_WORK(L"  x_%i = %fn", k, ret[k]);
    }
    PRINT_WORK(L"n");
    return ret;
}

//=================================================================================
template<typename LAMBDA>
std::vector<TRealType> GenerateSamples (int numSamples, LAMBDA lambda)
{
    std::vector<TRealType> ret;
    ret.resize(numSamples);
    for (int i = 0; i < numSamples; ++i)
    {
        TRealType percent = TRealType(i) / TRealType(numSamples);
        ret[i] = lambda(percent);
    }
    return ret;
}

//=================================================================================
int main (int argc, char **argv)
{
	// Enable Unicode UTF-16 output to console
	_setmode(_fileno(stdout), _O_U16TEXT);

    // You can test specific data samples like this:
    //std::vector<TRealType> sourceData = { 1, 0, 1, 0 };
    //std::vector<TRealType> sourceData = { 1, -1, 1, -1 };

    // Or you can generate data samples from a function like this
    std::vector<TRealType> sourceData = GenerateSamples(
        4,
        [] (TRealType percent)
        {
            const TRealType c_frequency = TRealType(1.0);
            return cos(percent * c_twoPi * c_frequency);
        }
    );

    // Show the source data
    wprintf(L"nSource = [ ");
    for (TRealType v : sourceData)
        wprintf(L"%f ",v);
    wprintf(L"]nn");

    // Do a dft and show the results
    std::vector<TComplexType> dft = DFTSamples(sourceData);
    wprintf(L"dft = [ ");
    for (TComplexType v : dft)
        wprintf(L"(%f, %f) ", v.real(), v.imag());
    wprintf(L"]nn");

    // Do an inverse dft of the dft data, and show the results
    std::vector<TRealType> idft = IDFTSamples(dft);
    wprintf(L"idft = [ ");
    for (TRealType v : idft)
        wprintf(L"%f ", v);
    wprintf(L"]n");

    return 0;
}

Links

Explaining how to calculate the frequencies represented by the bins of output of DFT:
How do I obtain the frequencies of each value in an FFT?

Another good explanation of the Fourier transform if it isn’t quite sinking in yet:
An Interactive Guide To The Fourier Transform

Some nice dft calculators that also have inverse dft equivelants:
DFT Calculator 1
IDFT Calculator 1
DFT Calculator 2
IDFT Calculator 2

Wolfram alpha can also do DFT and IDFT, but keep in mind that the formula used there is different and divides the results by 1/sqrt(N) in both DFT and IDFT so will be different values than you will get if you use a different formula.

Wolfram Alpha: Fourier[{1, 0, -1, 0}] = [0,1,0,1]

Wolfram Alpha: Inverse Fourier[{0, 1 , 0, 1}] = [1, 0, -1, 0]

A Sixth Way To Calculate Sine Without Trig

I have another item to add to the pile of ways to calculate sine without trig. Here are the previous ways before we start:

Four Ways to Calculate Sine Without Trig

A Fifth Way to Calculate Sine Without Trig

This method is called Bhaskara I’s sine approximation formula and it’s just a numerical way of approximating sine.

The below is some glsl code from @paniq that has been adapted to take 0 to 1 as input, which corresponds to 0 to 2*pi radians, or 0 to 360 degrees, and returns the normalized vector of that angle. The x component of the vector is the cosine of the angle and the y component of the vector is the sine of the angle. Useful for packing 2d normals into a color channel (;

// https://en.wikipedia.org/wiki/Bhaskara_I%27s_sine_approximation_formula
// x is 0..1 corresponding to 0..360 degrees
vec2 CosSin(float x) {
    vec2 si = fract(vec2(0.5,1.0) - x*2.0)*2.0 - 1.0;
   	vec2 so = sign(0.5-fract(vec2(0.25,0.5) - x));
    return (20.0 / (si*si + 4.0) - 4.0) * so;
}

Here’s a shadertoy to compare/contrast this technique versus reality (or, reality as per the video card). Spoiler alert – the shadertoy is ridiculous, they are basically the same.
Shadertoy: Bhaskara Cos Sin Approximation

More from paniq:

i also wrote an approximate atan to go with it Shadertoy: Pseudo-Polar Mapping see the ALTMETHOD branch. also changed the sin/cos computation to ensure the sin/cos vector is perfectly normalized.

Matrix Form of Bezier Curves

Bezier curves are most often talked about either in terms of the De Casteljau algorithm, or in terms of a mathematical function (Bernstein Polynomials).

Every now and then though, you see people talking about Bezier curves being calculated via matrices. If you ever wondered what that was all about, this post should hopefully explain and demystify that a bit.

If you don’t know how to come up with the equation of a Bezier curve for any number of control points, you should give this a read first:
Easy Binomial Expansion & Bezier Curve Formulas

And if you are curious about the De Casteljau algorithm, you can learn about that here:
The De Casteljau Algorithm for Evaluating Bezier Curves

Ok, all read up on that stuff? Let’s get talking about Bezier curves in matrix form! There are shadertoy links at the end with working wegl glsl demos that include source code.

Making the Matrix Form of Bezier Curves

Coming up with the matrix for a Bezier curve is surprisingly easy. Keep in mind the matrix we are making is for glsl which is a column major matrix order, so you might have to adjust things if you are using a row major matrix order setup (mostly, just transpose the matrix).

The first step is to get the formula for a Bezier curve. We’ll work through the example using a quadratic Bezier curve with 3 control points A,B,C, so we start with the formula below:

f(t) = A*(1-t)^2 + B*2t(1-t) + C*t^2

The next step is to break the equation into one equation per term. Each term has a control point, so we are basically splitting the formula up so that we have one formula per control point.

A*(1-t)^2 \\ B*2t(1-t) \\ C*t^2

Next, we remove the control points and expand each term to get:

1-2t+t^2 \\ 2t-2t^2 \\ t^2

Now, explicitly values of all powers of t that are present:
1*t^0-2*t^1+1*t^2 \\ 0*t^0+2*t^1-2*t^2 \\ 0*t^0+0*t^1+1*t^2

Now the final step. Take the constants that multiply your powers of t and make a matrix out of them. You are done!

\begin{bmatrix} 1 & -2 & 1 \\ 0 & 2 & -2 \\ 0 & 0 & 1 \\ \end{bmatrix}

Using the Matrix Form

Using the matrix form of Bezier curves is also pretty simple.

First, we need to make a vector of the power series of our t value:

powerSeries = \begin{bmatrix} t^0 & t^1 & t^2 \\ \end{bmatrix}

Which can also be written as:

powerSeries = \begin{bmatrix} 1 & t & t^2 \\ \end{bmatrix}

You also need a vector of your control points:

controlPoints = \begin{bmatrix} A & B & C \\ \end{bmatrix}

You next perform this operation to get a result vector:

result = powerSeries * curveMatrix * controlPoints

Then, you add up all components of result to get the value of the curve at time t.

value = result[0] + result[1] + result[2]

All done!

Note that this is a one dimensional Bezier curve. You need to do this operation once per axis to get your final multi dimensional Bezier curve point.

If you are confused by that last line, check out this post: One Dimensional Bezier Curves

Multiplying the Control Points In

You might notice that if you are evaluating several points on the same curve that you are going to be multiplying the curveMatrix matrix by the controlPoints vector over and over. You can multiply the control points into the Bezier curve matrix to make the specific matrix for those control points if you want to. You multiply the columns of the matrix by the control points, and adjust the result calculation like the below.

// Multiply the control points into the curve matrix
curveMatrix[0] *= A;
curveMatrix[1] *= B;
curveMatrix[2] *= C;

// Use the curve matrix that has the control points baked in, to do less math to get the result vector.
// You would calculate the curve matrix once and re-use it multiple times of course!
vec3 result = powerSeries * curveMatrix;
float value = result.x + result.y + result.z;

Closing

You might wonder when you’d use the matrix form. One time to use the matrix form would be when you had fast matrix math support (like on the GPU). Another time to use the matrix form though is if you ever want to cut up a Bezier curve into multiple smaller sub curves. The matrix form can help make that easier, and you can read more about that here if you want: A Matrix Formulation of the Cubic Bezier Curve

Here are some shadertoys that show this all working in webgl/glsl pixel shaders, along with source code:

Shadertoy: 1D Linear Bezier Matrix Form
Shadertoy: 1D Quadratic Bezier Matrix Form
Shadertoy: 1D Cubic Bezier Matrix Form

Actually Making Signed Distance Field Textures With JFA

This post is an addendum to the last post where I say that you can make distance field textures with JFA but don’t fully explain how to make SIGNED distance field textures, which is what you really want.

If you want to go straight to a working demo with webgl pixel shader source code, here is the shadertoy: Shadertoy: JFA SDF Texture

If you naively use a distance transform to make a distance field texture, you’ll get an UNSIGNED distance field texture, where you only have the distance to the surface of the object from the outside, but won’t have the distance to the surface of the object from the inside.

This is important because signed distance field textures have both, and use bilinear interpolation of distance on each side of the shape surface to make a nice smooth line. Below is what happens when you try to use an unsigned distance field texture (aka the distance transform of the image, using JFA / Voronoi information), using the zero distance line as the surface of the object:

It looks ok (if not fairly pixelated), but you can really see it break down when you zoom in:

So you might say to yourself, maybe i need to keep the surface line at distance 0.5 instead of 0.0 so that there is distance information to interpolate? If you do that, the first thing you might notice is that the objects get fatter:

But it does look better when you zoom in, which is a plus:

The real issue is that you really just need the distance from each pixel to the surface of the object from both the inside and the outside. In our case, our Voronoi diagram we make with JFA only gives the distance from the outside. So what is the solution? At first I was thinking maybe you can get the gradient of this data at the point of each pixel and “push the zero line in” a little bit to give at least one pixel layer worth of inside data. However, a brilliant friend of mine came up with the actual solution: You invert your source data so empty space becomes seed, and seed becomes empty space, and you run JFA again to get the distance from the inside!

That actually works very well. It’s also very easy to combine them. You make a pixel shader that reads the data from the outside Voronoi diagram and the inside Voronoi diagram, calculate the output distance (0.5 + outsideDistance * 0.5 – insideDistance * 0.5), and output that 0 to 1 distance value in one or more of the color channels.

Here’s a glsl excerpt below, note that we divide the distance by 8 and clamp between 0 and 1 so that the data is suitable for a normalized color image (normalized as in the color channels can store values between 0 and 1):

// calculate distances from seed coordinates
float outsideDist = clamp(length(outsideSeedCoord-fragCoord) / 8.0, 0.0, 1.0);
float insideDist  = clamp(length(insideSeedCoord-fFragCoord)  / 8.0, 0.0, 1.0);

// calculate output distance
float signedDistance = 0.5 + outsideDist * 0.5 - insideDist * 0.5;

// set the color based on that distance
fragColor = vec4(signedDistance);

It actually looks a lot like the first image where we use the zero distance line of the unsigned distance field texture, so we still aren’t quite there:

When you zoom in, it looks a little better, but something still seems a bit off:

The final step to making this look good is to realize that the power of signed distance textures is in their ability to interpolate distance information well. When we have a full resolution texture, there is no interpolation going on. We actually need to decrease the size of our distance field texture to make it look better. If only all problems were solved by making textures smaller!

Here is the resulting image when making the distance field texture 1/4 as large on each axis (1/16th as big total):

And zooming in you can see that it scales very well. The zoom is a 20x magnification, on top of the magnification we already get from it being a larger texture:

And just to show the intermediary textures, here is the outside distance Voronoi diagram:

And the inside distance Voronoi diagram (The seed is in bright green, the dim green is the empty space that has distance information):

And here is the final distance field texture used to render the final result I showed above.

Zoomed in to show just how low resolution it is! This is the thing that looks like a + or a sword just left of middle.

Again, here is the shadertoy that does this technique, generating a signed distance field texture on the fly for randomly placed objects, and then using that signed distance field to render a larger image that you can further zoom in to:
Shadertoy: JFA SDF Texture
